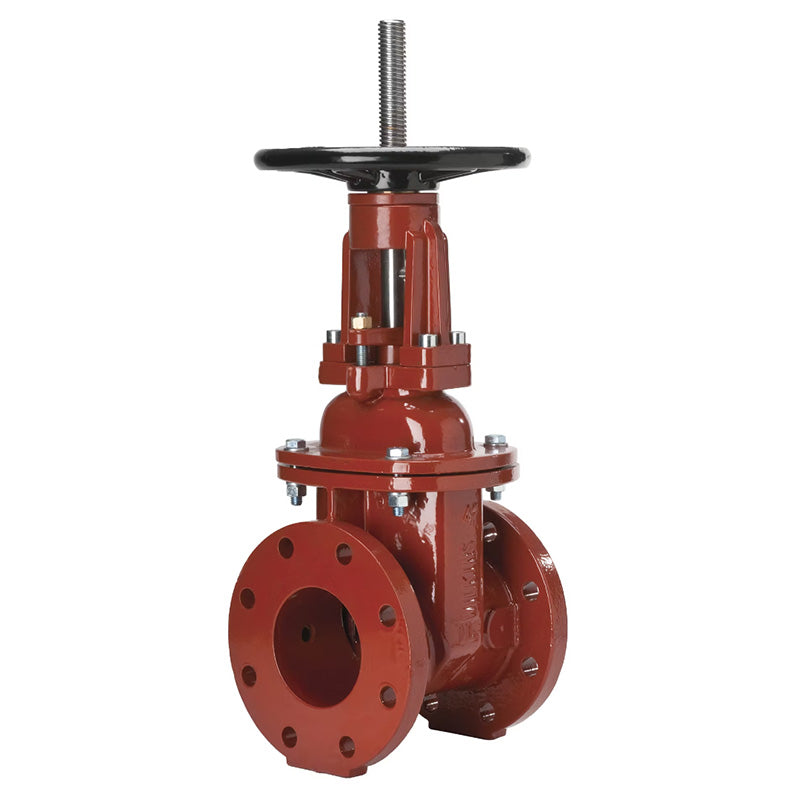

10 OSY GATE VALVE, GRV X FLG

Item Number: 10-48OSYGXF
1 1
$8,342.13
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Wilkins
  • OS&Y Resilient Wedge Gate Valve
  • Nominal Pipe Size: 10 inch
  • End Connections: Grooved x Flanged
  • Maximum Working Water Pressure: 250 psi
  • Body Material: Epoxy Coated Ductile Iron
  • Internals: Stainless Steel
  • Lead Free: Yes
  • AWWA C515, C-550 Compliant

Description

This Zurn 10 inch OS&Y (Outside Stem and Yoke) gate valve provides reliable shut-off control for potable water lines, irrigation systems, and waterworks. Featuring a durable epoxy coated ductile iron body and stainless steel internals, it resists corrosion and is low-lead compliant. The valve includes a rising stem for visual position indication and offers versatile installation with grooved and flanged end connections. It is rated for a maximum working water pressure of 250 psi and is AWWA C515, C-550, IAPMO, and UL listed. It can be used independently or in conjunction with Wilkins Backflow Preventers. Item number 10-48OSYGXF.

Help Me Connect

Connection Information

  • The grooved end connects to grooved piping systems, often secured with a grooved coupling.
  • The flanged end connects to flanged pipes or fittings using bolts and gaskets, typically following industry flange standards.
  • This valve can be used as a standalone shut-off valve or integrated into a system with Wilkins Backflow Preventers.
View full details

Additional Details

This Zurn 10 inch OS&Y (Outside Stem and Yoke) gate valve is designed for reliable shut-off in critical water systems.

It is primarily utilized on potable water lines, irrigation systems, and waterworks connection applications, and can function as a standalone product or with Wilkins Backflow Preventers.

Connections

  • Features a grooved end connection on one side and a flanged end connection on the other for versatile installation.

Construction & Features

  • The valve features a durable epoxy coated ductile iron body and stainless steel internals to protect against corrosion.
  • Designed with an OS&Y rising stem for clear visual indication of valve position.
  • Capable of handling a maximum working water pressure of 250 psi.
  • Low-lead law compliant for potable water applications.

Specifications

  • Valve Type: OS&Y Resilient Wedge Gate Valve
  • Nominal Pipe Size: 10 inch
  • Body Material: Epoxy Coated Ductile Iron
  • Internal Components: Stainless Steel
  • Stem Type: Rising Stem (OS&Y)
  • End Connections: Grooved x Flanged
  • Maximum Working Water Pressure: 250 psi
  • Maximum Working Water Temperature: 140°F
  • Hydrostatic Test Pressure: 500 psi
  • Lead Content: Low-lead law compliant

Certificates & Approvals

  • AWWA Compliant: C515, C-550
  • IAPMO® Listed
  • UL® Listed

FAQs

What does OS&Y mean for this gate valve?

OS&Y stands for Outside Stem and Yoke. It refers to the rising stem design of the valve, which provides a clear visual indication of whether the valve is open or closed.

What types of systems is this gate valve suitable for?

This gate valve is suitable for potable water lines, irrigation systems, and general waterworks connection applications. It can be used as a standalone shut-off valve or with Wilkins Backflow Preventers.

What are the connection types for this valve?

This valve features both grooved and flanged end connections. One side has a grooved connection, and the other side has a flanged connection, offering installation versatility.

What is the maximum pressure rating for this 10 inch OS&Y gate valve?

The maximum working water pressure for this valve is 250 psi, with a hydrostatic test pressure of 500 psi.

Is this gate valve compliant with lead-free regulations?

Yes, this Zurn 10 inch OS&Y gate valve is low-lead law compliant, making it suitable for potable water applications.
