10 WVS-C Flange x Mechanical Joint

Item Number: 0107219
1 1
$4,611.00
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Size: 10 inch
  • Weight: 469.0 lb
  • Connection Type: Flange x Mechanical Joint
  • Body Material: Ductile Iron
  • Coating: Fusion Epoxy Coated (AWWA C550)
  • Maximum Operating Pressure: 175 PSI
  • Eliminates the need for thrust blocks
  • Augments Watts N-shape backflow preventer installations
  • Wetted surface contains less than 0.25% lead

Description

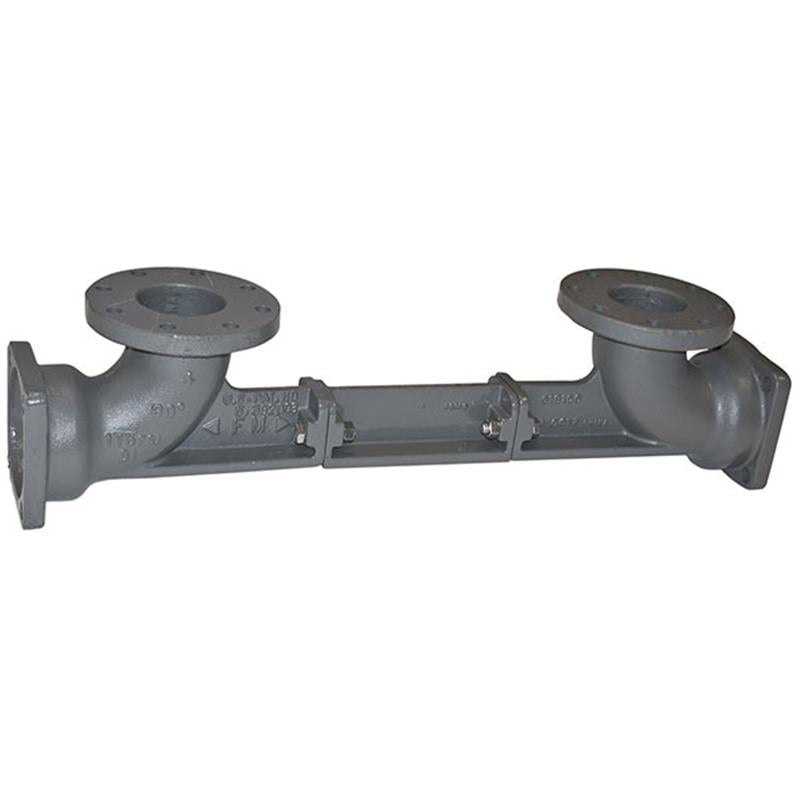

The Watts 10 inch Series WVS valve setter (0107219) is a durable ductile iron component designed to augment the installation of N-shape backflow prevention valve assemblies. Featuring a flange connection on one end and a mechanical joint on the other, it is constructed from fusion epoxy coated ductile iron. This valve setter efficiently transfers thrust downstream through an integral support, eliminating the need for external thrust blocks or restraints at the point of installation. It is rated for a maximum working pressure of 175 PSI and operates within a temperature range of 32°F to 140°F. The wetted surface contains less than 0.25% lead.

Help Me Connect

Compatibility & Connections

This Watts Series WVS valve setter is specifically designed to augment the installation of Watts "N" series backflow prevention valve assemblies, providing essential support. It features a flange connection on one end and a mechanical joint connection on the other, allowing for versatile integration into your piping system. Mechanical joint restraint devices may be used at the pipe connections, depending on local conditions.

View full details

Additional Details

This 10 inch Watts Series WVS valve setter with flange by mechanical joint connections is designed to augment the installation of "N" series backflow prevention valve assemblies, providing robust support and eliminating the need for thrust blocks.

The valve setter features an integral ductile iron support between its elbows, which efficiently transfers thrust downstream, reducing the need for traditional thrust block requirements.

Features

  • Corrosion resistant fusion epoxy coating for enhanced durability.
  • Eliminates the need for thrust blocks or other restraints at the point of installation.
  • Constructed from fusion epoxy coated ductile iron for long-lasting performance.

Construction & Connections

  • Body Material: Ductile iron A536 GR 65-45-12.
  • Coating: Fusion epoxy coated internally and externally, conforming to AWWA C550 standards.
  • Flange Standards: ANSI B16.1 Class 125 (Standard) and ANSI AWWA C153 A21.53-88.

Note: Mechanical joint accessories, flange bolts, and gaskets are not included, except for center joints.

Specifications

  • Size: 10 inch
  • Connection Type: Flange x Mechanical Joint (MJxFL)
  • Body Material: Ductile Iron A536 GR 65-45-12
  • Coating: Fusion Epoxy Coated (Internal and External AWWA C550)
  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Temperature Range: 32°F to 140°F (0°C to 60°C)
  • Bolts & Nuts Material: Stainless Steel

Certificates & Approvals

  • Flanges: ANSI B16.1 Class 125 (Standard)
  • Flanges: ANSI AWWA C153 A21.53-88
  • Lead Content: Wetted surface contains less than 0.25% lead by weight

FAQs

What is the primary purpose of this valve setter?

This valve setter is designed to augment the installation of Watts "N" series backflow prevention valves, providing structural support and eliminating the need for thrust blocks or other restraints at the point of installation.

What materials is the 10-inch valve setter constructed from?

The valve setter body is made from Ductile Iron A536 GR 65-45-12 and is fusion epoxy coated both internally and externally according to AWWA C550 standards. The bolts and nuts are stainless steel.

What are the connection types for this specific valve setter?

This model features a flange connection on one end and a mechanical joint connection on the other end, identified as MJxFL.

What is the maximum operating pressure and temperature range for this device?

It has a maximum working pressure of 175 PSI (12.1 bar) and operates efficiently within a temperature range of 32°F to 140°F (0°C to 60°C).

Does this valve setter include all necessary installation accessories?

No, mechanical joint accessories, flange bolts, and gaskets are generally not included, with the exception of center joints. These items typically need to be sourced separately.
