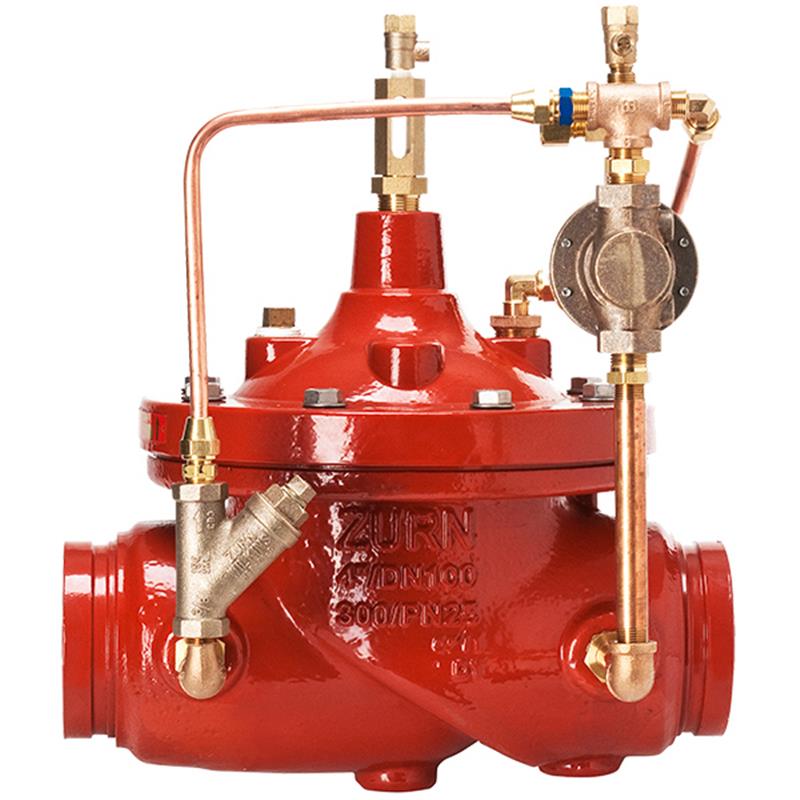

10 ZW215 SUC PRSS CTRL FIRE VLV GLB BODY IPS GRVD SS SEAT CPR TUBE

Item Number: 10-ZW215FPG
1 1
$34,510.37
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Wilkins
  • Valve Type: Fire Pump Suction Control Valve
  • Nominal Pipe Size: 10 inch (250 mm)
  • Connection Type: IPS Grooved
  • Body Material: Ductile Iron ASTM A536
  • Prevents cavitation and backflow in fire pump systems
  • Coating: Red Epoxy Coated, FDA Approved
  • Maximum Continuous Flow: 4900 GPM
  • FM Approved

Description

The Zurn Wilkins ZW215FP 10 inch Fire Pump Suction Control Valve with IPS grooved connections is designed for fire suppression systems. This globe-style valve prevents fire pumps from over-drawing water, which can cause pump damage and supply network issues from low or negative suction pressures. It maintains a minimum inlet pressure to prevent cavitation and backflow, ensuring system integrity. The valve features durable ductile iron construction with a corrosion-resistant red epoxy coating and a stainless steel seat for longevity. It is FM Approved for reliable performance in critical fire safety applications. Item number 10-ZW215FPG.

Help Me Connect

Connections

  • This valve features IPS Grooved connections designed for a 10 inch pipe system.
  • The grooved ends are compatible with AWWA C606 standards for a maximum of 300 psi inlet pressure.

Installation

  • For 6 inch and larger valves, including this 10 inch model, the recommended installation orientation is horizontal with the valve cover up.
  • This orientation is crucial for proper bleeding of air from the valve cover and for ease of maintenance.
View full details

Additional Details

The 10 inch Zurn Wilkins ZW215FP Fire Pump Suction Control Valve is designed to control suction pressure for Fire Suppression Systems, preventing fire pumps from over-drawing from the water supply and mitigating damage due to low or negative pressures.

This valve maintains a minimum inlet pressure to a Fire Protection Pump, effectively preventing cavitation and potential backflow conditions.

Features

  • Designed for Fire Suppression Systems
  • Prevents cavitation and backflow
  • Modulating action maintains suction pressure within narrow limits
  • Factory set to maintain minimum inlet pressure
  • Quick pilot assembly reaction to pressure changes
  • Internal and external ferrous surfaces are coated with a high-quality flu-eon epoxy coating for corrosion resistance
  • Sensing port includes a test cock for quick bleeding of the sensing line
  • Service and adjustments possible without removing the valve from the line

Construction Materials

  • Main Valve Body: Ductile Iron ASTM A536
  • Main Valve Bonnet: Ductile Iron ASTM A536
  • Disc Guide: Stainless Steel
  • Seat: Stainless Steel
  • Disc: Buna-N Rubber
  • Diaphragm: Nylon Reinforced Buna-N
  • Stem: Stainless Steel
  • Spring: Stainless Steel
  • Pilot System Piping: Copper tubing

Operation

  • Utilizes a pressure relief pilot valve (Model PV-RLF) installed on the discharge side of the control circuitry.
  • The pilot valve is direct acting, normally closed, and spring-loaded with a diaphragm.
  • A sensing line connects the pump's suction side to the pilot control chamber.
  • Suction pressure exceeding the pilot's preset causes the pilot valve to open, and the adjustable spring seeks to keep it closed, resulting in a modulating action to maintain pressure.

Specifications

  • Valve Type: Fire Pump Suction Control Valve
  • Model: ZW215FP
  • Body Style: Globe
  • Nominal Pipe Size: 10 inch (250 mm)
  • Connection Type: IPS Grooved
  • Inlet Pressure Rating: 300 psi (for grooved connections)
  • Temperature Rating: 35°F to 140°F (Water)
  • Pilot Piping Range: 10-30 psi
  • Body Material: Ductile Iron ASTM A536
  • Bonnet Material: Ductile Iron ASTM A536
  • Disc Guide Material: Stainless Steel
  • Seat Material: Stainless Steel
  • Disc Material: Buna-N Rubber
  • Diaphragm Material: Nylon Reinforced Buna-N
  • Stem Material: Stainless Steel
  • Spring Material: Stainless Steel
  • Coating: Red Epoxy Coated, FDA Approved

Flow Characteristics (10 inch Valve)

  • Maximum Continuous Flow: 4900 GPM
  • Maximum Intermittent Flow: 6000 GPM
  • Minimum Continuous Flow: 300 GPM

Certificates & Approvals

  • FM Approved

FAQs

What is the primary purpose of the Zurn ZW215FP Fire Pump Suction Control Valve?

The Zurn ZW215FP is designed to control suction pressure for Fire Suppression Systems. Its main function is to prevent fire pumps from over-drawing from the water supply, which could lead to pump damage or issues with the supply network due to low or negative pressures.

What type of connections does this 10-inch ZW215FP valve use?

This particular ZW215FP valve features IPS Grooved connections. These connections are rated for an inlet pressure of 300 psi.

What materials are used for the main valve body and internal components?

The main valve body and bonnet are constructed from Ductile Iron ASTM A536. Internal components like the disc guide, seat, and stem are made of Stainless Steel, while the disc is Buna-N Rubber and the diaphragm is Nylon Reinforced Buna-N.

Can this valve be installed in any orientation?

For 6 inch and larger valves, including this 10 inch model, the recommended installation orientation is horizontal with the valve cover up. This orientation facilitates proper air bleeding from the cover and simplifies maintenance.

What are the flow capacity specifications for the 10-inch ZW215FP valve?

For the 10-inch valve, the maximum continuous flow is 4900 GPM, the maximum intermittent flow is 6000 GPM, and the minimum continuous flow is 300 GPM.
