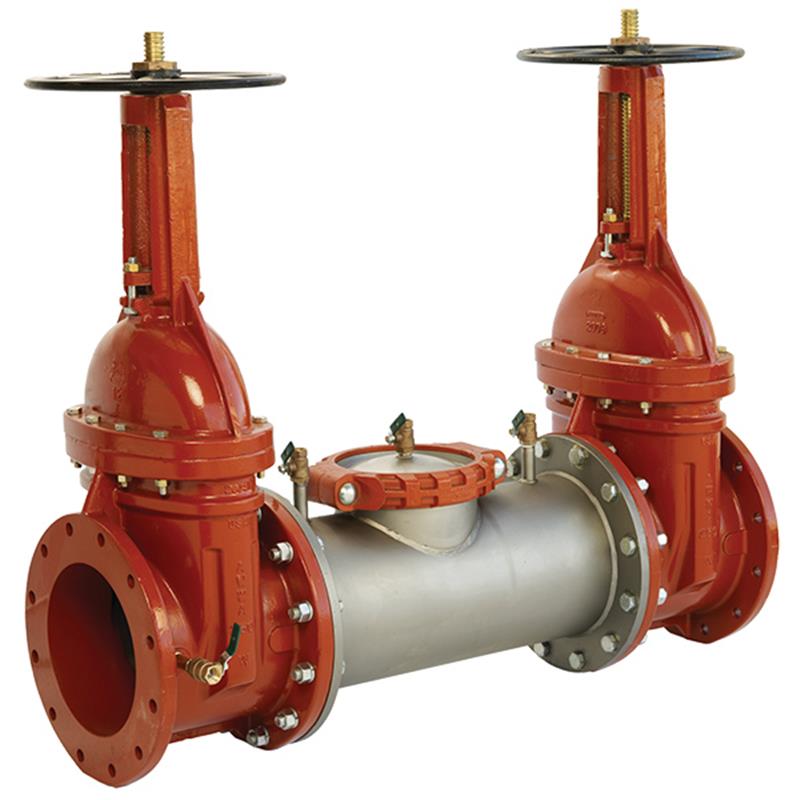

12 2000SS-DNRS

Item Number: 0690564
1 1
$39,408.00
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Product Type: Double Check Valve Assembly
  • Weight: 1440.0 lb
  • Size: 12 inch
  • Body Material: 300 Series Stainless Steel
  • Valve Type: Domestic Non-Rising Stem (NRS) Gate Valves
  • Lead Free: Less than 0.25% lead by weight
  • Maximum Operating Pressure: 175 psi
  • Temperature Range: 33°F - 110°F
  • Installation: Horizontal or Vertical "Flow Up" approved

Description

This 12 inch lead free AMES Series 2000SS Double Check Valve Backflow Preventer Assembly is designed to prevent the reverse flow of polluted water into potable water systems. Ideal for non-health hazard installations, it features a durable stainless steel body and domestic non-rising stem (NRS) gate valves. The compact, modular design with cam-check assembly ensures low head loss and easy maintenance without special tools. Approved for horizontal or vertical installation, it provides long-term corrosion protection and maximum strength for continuous pressure service. Maximum working pressure is 175 PSI. Item number 0690564.

Help Me Connect

Connections

This 12 inch double check valve assembly features flanged connections on both the inlet and outlet. The flange dimensions are in accordance with AWWA Class D standards, ensuring compatibility with other AWWA Class D compliant piping systems.

View full details

Additional Details

This 12 inch lead free double check valve backflow preventer assembly is designed to prevent the reverse flow of water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage and or backpressure. It is ideal for continuous pressure service and protection at cross-connections identified as non-health hazards and from other non toxic contaminants.

Features

  • Provides low head loss with its Cam-Check Assembly.
  • Features a short lay length, ideal for retrofit installations.
  • The stainless steel body is half the weight of competitive designs, reducing installation and shipping cost.
  • Stainless steel construction ensures long-term corrosion protection and maximum strength.
  • Equipped with a single top access cover and two-bolt grooved style coupling for ease of maintenance.
  • No special tools are required for servicing.
  • Compact construction allows for installation in smaller vaults and enclosures.
  • May be installed in horizontal or vertical "flow up" position (ASSE Only).
  • Includes domestic non-rising stem (NRS) resilient seated gate valves.
  • Modular design for easy maintenance.

Materials

  • All Internal Metal Parts: 300 Series stainless steel
  • Main Valve Body: 300 Series stainless steel
  • Check Assembly: Noryl®

Certifications & Approvals

  • AWWA C510-92
  • CSA B64.5
  • ASSE 1015
  • CULUS Classified

Specifications

  • Product Type: Double Check Valve Assembly
  • Size: 12 inch
  • Lead Free: Yes (less than 0.25% lead by weight)
  • Maximum Working Pressure: 175 psi (12.06 bar)
  • Temperature Range: 33°F - 110°F (5°C - 43°C)
  • Installation Position: Horizontal or Vertical "Flow Up" (ASSE Only)

Construction Materials

  • Main Valve Body Material: 300 Series Stainless Steel
  • Internal Metal Parts Material: 300 Series Stainless Steel
  • Check Assembly Material: Noryl®
  • Shutoff Valve Type: Domestic Non-Rising Stem (NRS) Resilient Seated Gate Valves

Standards & Approvals

  • Standards: AWWA C510-92, CSA B64.5
  • Approvals: ASSE 1015, CULUS Classified

FAQs

What type of backflow protection does this assembly provide?

This is a double check valve assembly designed to prevent the reverse flow of polluted water into the potable water system. It is suitable for non-health hazard installations.

Is this backflow preventer lead free?

Yes, the wetted surface of this product contains less than 0.25% of lead by weight, making it lead free in accordance with national plumbing codes.

What type of shutoff valves are included with this assembly?

The assembly includes domestic non-rising stem (NRS) resilient seated gate valves for reliable shutoff and isolation.

Can this 12 inch backflow preventer be installed vertically?

Yes, this double check valve assembly is approved for both horizontal and vertical "flow up" installations, in accordance with ASSE standards.

What is the maximum operating pressure and temperature range for this unit?

This assembly has a maximum working pressure of 175 psi (12.06 bar) and operates within a temperature range of 33°F to 110°F (5°C to 43°C).
