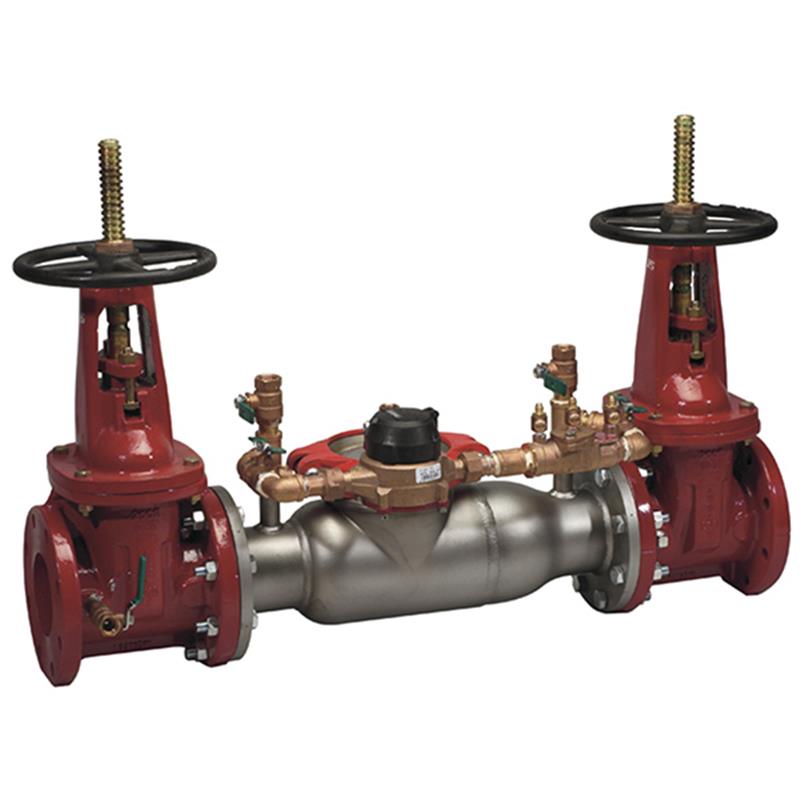

12 3000SS-DOSY-GPM

Item Number: 0690566
1 1
$41,948.25
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 12 inch
  • Weight: 1520.0 lb
  • Body Material: 300 Series Stainless Steel
  • Maximum Working Pressure: 175 PSI
  • Features Gallons/Minute Meter for leak detection
  • Designed for non-health hazard applications
  • Short lay length for retrofit installations
  • Can be installed horizontally or vertically "flow up"
  • UL Classified and FM Approved (OSY only)

Description

The 12 inch 3000SS Double Check Detector Backflow Preventer Assembly is engineered to prevent the reverse flow of non-potable fire protection substances and stagnant water into potable water supplies. This assembly features a durable 300 Series stainless steel body, domestic OSY resilient seated gate valves, and cam-check valves providing low head loss. Its compact design and short lay length are ideal for retrofit installations. A built-in gallons per minute bypass meter detects underground leaks and unauthorized water use, making it suitable for non-health hazard cross-connections. It is approved for horizontal and vertical "flow up" installation and requires no special tools for servicing.

Help Me Connect

Connections and Compatibility

This 12 inch Double Check Detector Backflow Preventer Assembly is equipped with flanged inlet gate connections and flanged outlet gate connections, designed for direct integration into large pipe systems. It is primarily used on fire protection systems to prevent the reverse flow of non-potable substances into the main potable water supply. The assembly can be installed in both horizontal and vertical "flow up" orientations (ASSE Only).

View full details

Additional Details

The 12 inch 3000SS Double Check Detector Backflow Preventer Assembly is designed to prevent the reverse flow of non-potable fire protection substances and other non-potable quality water from entering the potable water supply. This assembly is ideal for protection at non-health hazard cross-connections, such as on fire protection systems and other service line contaminants.

This compact, modular assembly features a stainless steel body, domestic outside stem and yoke (OSY) resilient seated gate valves, and torsion spring check valves. It includes a gallons per minute (GPM) metered bypass to detect underground leaks and unauthorized water use.

Features

  • Cam-Check Assembly valve provides low head loss for efficient operation.
  • Short lay length is ideally suited for retrofit installations.
  • Stainless steel body is half the weight of competitive designs, reducing installation and shipping costs.
  • Stainless steel construction provides long term corrosion protection and maximum strength.
  • Single top access cover with two-bolt grooved style coupling for ease of maintenance.
  • No special tools required for servicing, simplifying maintenance.
  • Compact construction allows for smaller vaults and enclosures.
  • Furnished with a 5/8" x 3/4" bronze meter (gpm or cfm) to detect underground leaks and unauthorized water use.
  • May be installed in horizontal or vertical "flow up" positions (ASSE Only).
  • Includes an integrated supervisory switch as an option on each gate valve of the OS&Y model.

WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing standard material product, consult your local water authority, building and plumbing codes.

Specifications

  • Size: 12 inch
  • Body Material: 300 Series Stainless Steel
  • Internal Metal Parts: 300 Series Stainless Steel
  • Check Assembly Material: Noryl® Flange dimension in accordance with AWWA Class D
  • Valve Type: Double Check Detector Assembly
  • Shutoff Valves: Domestic OSY Resilient Seated Gate Valves
  • Connections: Flanged Inlet Gate and Flanged Outlet Gate
  • Bypass Meter: 5/8" x 3/4" Bronze (gpm or cfm)
  • Maximum Working Pressure: 175 PSI (12 bar)
  • Temperature Range: 33°F – 110°F (0.5°C – 43°C)
  • Installation Orientation: Horizontal or Vertical "Flow Up" (ASSE Only)
  • Net Weight (With Gates): 1049 lbs (476 kg)

Certificates & Approvals

  • Standards: ASSE 1048, AWWA C510-92, CSA B64.5, UL 1469
  • Approvals: UL Classified (OSY only)
  • Approvals: FM Approved (OSY only)
  • Approvals: USC Foundation for Cross-Connection Control and Hydraulic Research

FAQs

What is the primary purpose of this 12 inch Double Check Detector Backflow Preventer?

This assembly is designed to prevent the reverse flow of non-potable fire protection substances, such as glycerin wetting agents or stagnant water, from entering the potable water supply due to back-siphonage or back-pressure.

What materials are used in the construction of this backflow preventer?

The main valve body and internal metal parts are constructed from 300 Series stainless steel for long-term corrosion protection and maximum strength. The check assembly uses Noryl®.

Can this backflow preventer be installed in any orientation?

Yes, this assembly may be installed in both horizontal and vertical "flow up" positions, as approved by ASSE.

How does this backflow preventer detect leaks or unauthorized water use?

It includes a 5/8" x 3/4" bronze meter (gpm or cfm) in its bypass assembly, which accurately detects underground leaks and unauthorized water consumption.

What is the maximum operating pressure and temperature range for this assembly?

The maximum operating pressure is 175 PSI (12 bar). The temperature range for operation is 33°F to 110°F (0.5°C to 43°C).
