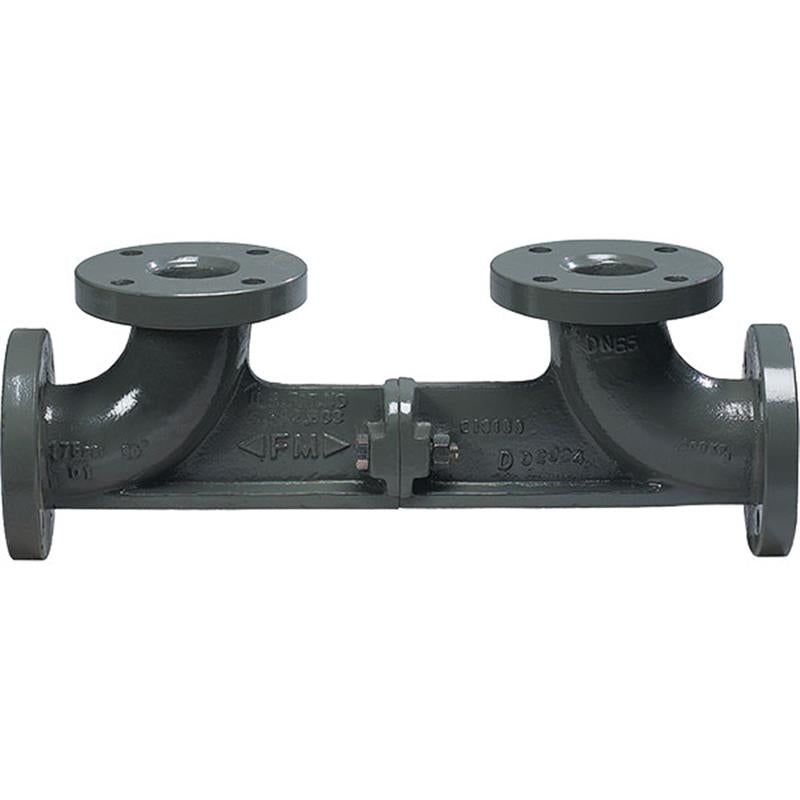

2 1/2 611-Flange x Flange

Item Number: 905204
1 1
$1,028.25
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Nominal Size: 2 1/2 inch
  • Weight: 102.0 lb
  • Connections: Flange x Flange
  • Body Material: Ductile iron
  • Coating: Fusion epoxy coated for corrosion resistance
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 32°F to 140°F
  • Fasteners: Stainless steel
  • Lead Free* Construction (<0.25% lead by weight)

Description

The FEBCO 611 Series 2 1/2 inch Flange x Flange Valve Setter is designed to facilitate the installation of MasterSeries N-pattern backflow prevention valves. Constructed from fusion epoxy coated ductile iron, this setter features integral supports that eliminate the need for external thrust blocks. It has a maximum working pressure of 175 psi and operates in temperatures from 32°F to 140°F. The valve setter utilizes ANSI AWWA C153 A21.53-88 flanged connections and stainless steel fasteners for durability. Its wetted surfaces contain less than 0.25% lead by weight, complying with Lead Free* requirements. Item number 905204.

Help Me Connect

Compatibility

  • This 2 1/2 inch flange by flange valve setter is designed to augment the installation of specific backflow prevention valves.
  • It is compatible with MasterSeries® N-pattern backflow preventer valves, including Series LF870V, LF876VST, and LF880V.

Connections

  • It features ANSI AWWA C153 A21.53-88 flanged connections on both ends.
  • Always ensure the mating flanges on your backflow preventer match these specifications for proper fit.
View full details

Additional Details

This 2 1/2 inch flange by flange valve setter, part of the FEBCO 611 Series, is constructed of fusion epoxy coated ductile iron. It is designed to augment the installation of MasterSeries® N-pattern backflow prevention valves.

Features

  • Corrosion resistant fusion epoxy coated for enhanced longevity.
  • Eliminates the need for thrust blocks or other restraints at the point of installation due to integral ductile iron supports.
  • Integral ductile iron supports between elbows transfer thrust downstream.
  • Features ANSI AWWA C153 A21.53-88 flanges.
  • Constructed with Lead Free* materials to comply with installation requirements.

Materials

  • Body: Ductile iron A536 GR 65-45-12
  • Coating: Fusion epoxy coated internal and external to AWWA C550 standards.
  • Bolts & Nuts: Stainless steel

Operating Limits

  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 32°F to 140°F (0°C to 60°C)
Notice: The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight.

Specifications

  • Nominal Size: 2 1/2 inch
  • Connections: Flange x Flange
  • Body Material: Ductile iron A536 GR 65-45-12
  • Coating: Fusion epoxy coated internal and external AWWA C550
  • Flange Standard: ANSI AWWA C153 A21.53-88
  • Fasteners: Stainless steel bolts & nuts
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 32°F to 140°F (0°C to 60°C)
  • Lead Content: Wetted surface < 0.25% lead by weight

Certificates & Approvals

  • FM Approved
  • Lead Free* Construction

FAQs

What is the primary purpose of the FEBCO 611 Series Valve Setter?

This valve setter is designed to augment the installation of specific backflow prevention valves, providing integral support to eliminate the need for thrust blocks downstream.

What type of backflow preventers is this valve setter compatible with?

This valve setter is compatible with MasterSeries N-pattern backflow preventer valves, including Series LF870V, LF876VST, and LF880V.

What are the material specifications for this valve setter?

The body is constructed from ductile iron (A536 GR 65-45-12), with fusion epoxy coating (AWWA C550) on both internal and external surfaces. It features stainless steel bolts and nuts.

What are the maximum operating pressure and temperature limits?

This valve setter has a maximum working pressure of 175 psi (12.1 bar) and can operate within a temperature range of 32°F to 140°F (0°C to 60°C).

Does this product meet Lead Free standards?

Yes, this product features Lead Free* construction. The wetted surface contacted by consumable water contains less than 0.25% of lead by weight, complying with Lead Free* installation requirements.
