2 1/2 758A

Item Number: 4325
1 1
$746.63
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 2 1/2 inch (65mm)
  • Weight: 31.5 lb
  • Strainer Type: Wye Pattern
  • Body Material: Cast Iron (ASTM A126-B)
  • Screen Material: 304 Stainless Steel
  • Maximum Operating Pressure: 200 psi (Non-Shock)
  • End Connections: ANSI 150 Pound Flanged
  • Blowoff Connection: 1 inch NPT
  • Epoxy Coated for Longevity

Description

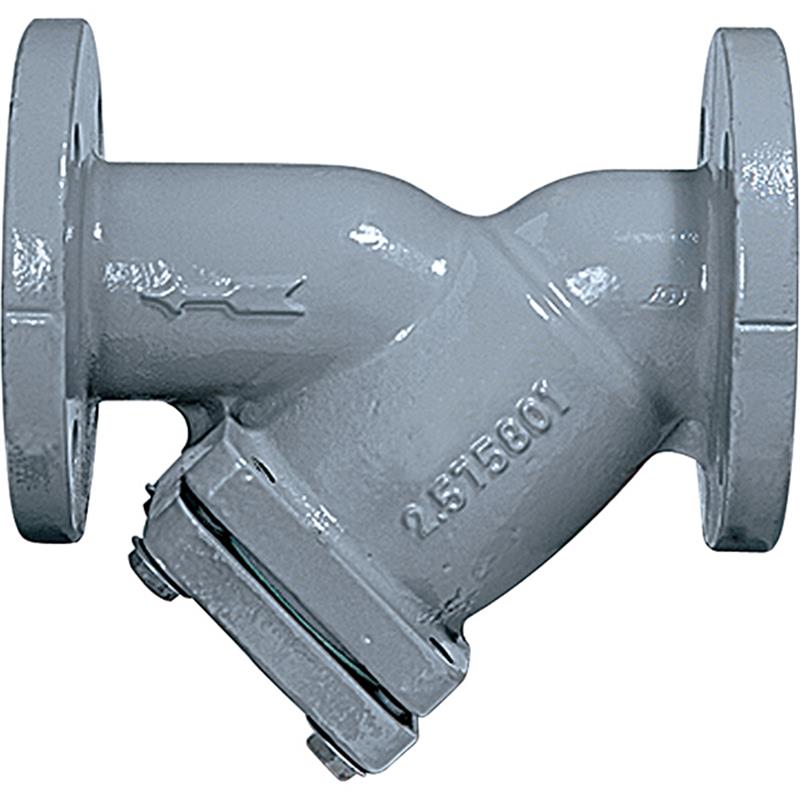

The FEBCO Series 758A 2 1/2 inch wye pattern strainer is designed to protect valuable water system equipment from foreign material in non-health hazard applications. Constructed with a cast iron body and a perforated 304 stainless steel screen, it effectively captures debris. Features include unplugged NPT blowoff connections, recessed screen seats for accurate alignment, and a durable epoxy coating. It can withstand non-shock pressures up to 200 psi at 150°F and connects via ANSI 150 pound flanged ends. Item number 4325.

Help Me Connect

Connections

  • This FEBCO Series 758A strainer features ANSI 150 pound flanged end connections, making it suitable for direct installation into ANSI 150 flanged piping systems.
  • The blowoff connection is a 1 inch NPT tapped port, designed for easy draining or flushing of collected debris.
  • Suitable for use in water piping systems in non-health hazard applications.
View full details

Additional Details

The FEBCO Series 758A 2 1/2 inch wye pattern strainer is designed for installation in water piping systems to protect expensive equipment from damage caused by foreign material.

Key Features

  • Features unplugged NPT blowoff connections located on the cover for easy maintenance.
  • Recessed screen seats ensure accurate screen alignment for effective filtration.
  • Equipped with a perforated 304 stainless steel screen to capture debris.
  • The body is epoxy coated for enhanced longevity and durability.
  • Includes a tapped retainer cap.

Construction & Design

  • Manufactured with a robust cast iron body (ASTM A126-B) and a carbon steel cap/cover (ASTM A36).
  • Designed for non-health hazard applications.

Specifications

  • Brand: FEBCO
  • Model Series: 758A
  • Strainer Type: Wye Pattern
  • Size: 2 1/2 inch (65mm)
  • Body Material: Cast Iron (ASTM A126-B)
  • Cap/Cover Material: Carbon Steel (ASTM A36)
  • Gasket Material: Non-asbestos
  • Screen Material: 304 Stainless Steel
  • Screen Perforation: 1/16 inch
  • Maximum Operating Pressure: 200 psi (Non-Shock)
  • Maximum Operating Temperature: 150°F (60°C)
  • Blowoff Connection: 1 inch NPT
  • End Connections: ANSI 150 Pound Flanged

Dimensions

  • Length (A): 10 inches (254 mm)
  • Height (B): 6 1/2 inches (165 mm)
  • Weight: 28 lbs (12 kgs)

FAQs

What is the primary function of the FEBCO Series 758A wye strainer?

Its primary function is to protect expensive equipment within water piping systems, such as backflow preventers, by filtering out foreign material that could cause damage or failure. It is designed for non-health hazard applications.

What are the main materials used in the construction of this 2 1/2 inch strainer?

The strainer features a robust Cast Iron (ASTM A126-B) body, a Carbon Steel (ASTM A36) cap/cover, and a perforated 304 Stainless Steel screen.

What type of pipe connections does the FEBCO 758A strainer use?

This strainer is equipped with ANSI 150 pound flanged end connections, providing a secure and compatible interface for ANSI 150 flanged piping systems.

What is the maximum pressure and temperature this strainer can withstand?

It is rated for a maximum non-shock operating pressure of 200 psi at temperatures up to 150°F (60°C).

How can debris be removed from the strainer without full disassembly?

The strainer features unplugged 1 inch NPT blowoff connections situated on the cover, allowing for convenient draining and flushing of accumulated debris.
