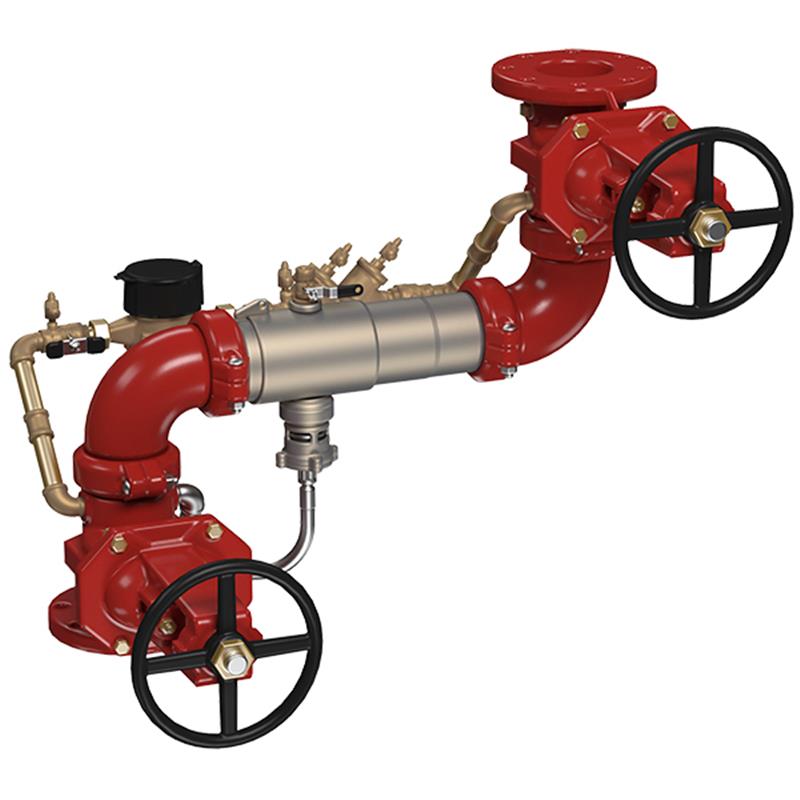

The Colt™ 2 1/2 inch reduced pressure detector backflow preventer assembly is designed to prevent the reverse flow of fire protection substances and non-potable water into the potable water supply due to backsiphonage or backpressure. This C500 Series assembly is ideal for protection at cross-connections identified as health hazards, such as on fire sprinkler systems and at the service line entrance.

A WARNING: It is illegal to use this product in a plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing standard material product, consult your local water authority, building and plumbing codes.

Features & Benefits

• Extremely compact design allows for small enclosures to be used.
• 70% lighter than traditional designs.
• Constructed with a 304 (Schedule 40) stainless steel housing and sleeve for durability.
• Groove fittings allow for integral pipeline adjustment and easy installation.
• Patented link check for lowest pressure loss.
• Unmatched ease of serviceability with a single access cover for easy maintenance.
• Replaceable check disc rubber.
• Includes UL and FM Approved outside stem and yoke (OSY) resilient seated gate valves.
• Bottom-mounted cast stainless steel relief valve.
• Metered bypass with a gallon per minute meter detects leakage or unauthorized water use from the fire sprinkler system.
• Integrated sensor on the relief valve for flood detection, with flood alert feature activated by an add-on sensor connection kit.
• Approved for horizontal Z-pattern installation.
• Available with an integrated supervisory switch as an option on each gate valve of the OS&Y model.
