2 1/2 LF288AM2

Item Number: 0792044
1 1
$4,144.51
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Size: 2 1/2 inch
  • Weight: 11.9 lb
  • Lead Free* Brass Body
  • Maximum Operating Pressure: 125 PSI
  • Maximum Temperature: 180°F (82°C)
  • Full-size orifice for maximum flow
  • Silicone disc for high heat and water hammer shock resistance
  • Prevents backsiphonage of contaminated water
  • Suitable for low flow, non-continuous hot or cold water applications

Description

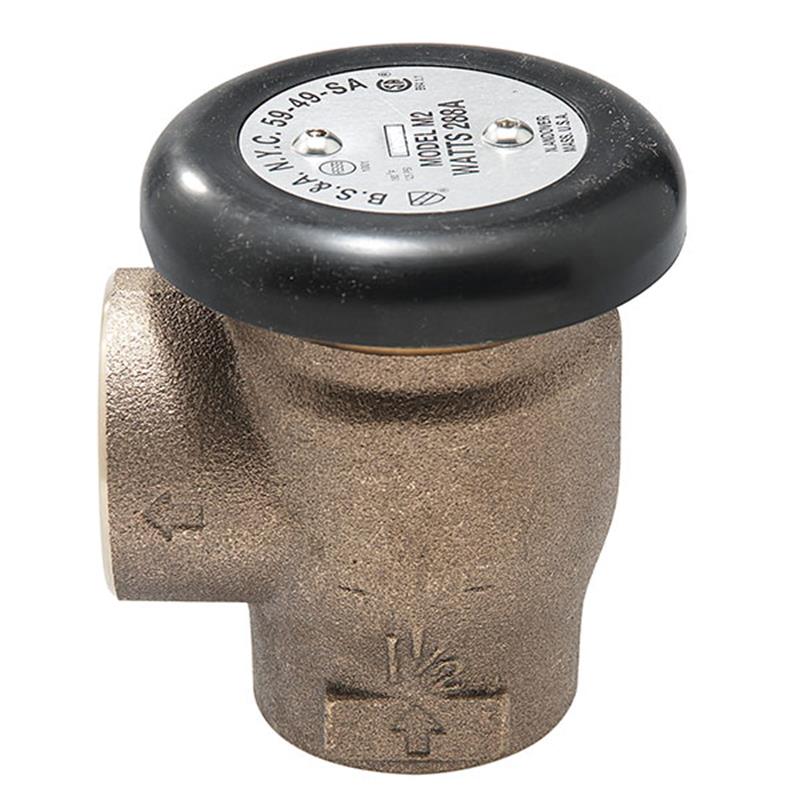

The Watts Series LF288AM2 2 1/2 inch lead free anti-siphon vacuum breaker is designed to prevent backsiphonage of non-potable water into a potable water supply. Constructed with lead free brass and a chemical resistant silicone seat disc, it ensures durability and compliance with lead free requirements. This device features a full-size orifice for maximum flow and an atmospheric vent to prevent spilling, making it ideal for low flow, non-continuous hot or cold water applications like laboratory equipment. It operates effectively up to 125 PSI and 180°F, ensuring reliable protection against backflow without continuous pressure.
View full details

Additional Details

This 2 1/2 inch lead free anti-siphon vacuum breaker backflow preventer for hot or cold water prevents the reverse flow of polluted water into the potable water supply due to backsiphonage.

Product Design & Construction

  • Features lead free construction to comply with Lead Free* installation requirements
  • Includes a chemical resistant silicone seat disc, chrome hood, and an atmospheric vent to prevent spilling
  • Equipped with a full-size orifice to assure pipe size capacity and maximum flow
  • The disc has high heat and water hammer shock resistance
  • Lightweight disc assembly prevents spilling under all rates of flow

Operation & Application

  • Designed for hot or cold water applications
  • Ideal for low flow, non-continuous health hazard applications, such as on laboratory equipment
  • Provides high water flow with minimal pressure loss due to streamlined water passages

This device is not to be used under continuous pressure or where there is a possibility that a backpressure condition may develop. For continuous pressure applications, specify Watts Series LF800 pressure type vacuum breakers.

Specifications

  • Body Material: Lead Free Brass
  • Disc Material: Silicone
  • Inlet/Outlet Connection Type: Female NPT
  • Size: 2 1/2 inch
  • Maximum Temperature: 180°F (82°C)
  • Maximum Working Pressure: 125 PSI (8.6 bar)

Dimensions (Nominal)

  • A (Overall Height): 6 1/2 inch (165 mm)
  • B (Overall Width): 7 1/2 inch (191 mm)
  • C (Height to Centerline of Connection): 4 1/2 inch (114 mm)
  • D (Connection End to End): 3 inch (76 mm)

Weight (Nominal)

  • Weight: 256 oz (7258 gm)

Certificates & Approvals

  • ASSE Standard 1001
  • ANSI A112.1.1
  • CSA B64
  • IAPMO UPC Certified
  • NSF/ANSI 372 Certified

FAQs

What is the primary function of the Watts LF288AM2 vacuum breaker?

The primary function of this 2 1/2 inch lead free anti-siphon vacuum breaker is to prevent the reverse flow of contaminated water into a potable water supply system due to backsiphonage.

What are the key material components of this vacuum breaker?

This vacuum breaker features a lead free brass body and a chemical resistant silicone seat disc, ensuring both durability and compliance with lead free standards.

What are the pressure and temperature limitations for this device?

The Watts LF288AM2 can withstand a maximum working pressure of 125 PSI (8.6 bar) and a maximum temperature of 180°F (82°C).

Can this anti-siphon vacuum breaker be used under continuous pressure?

No, this anti-siphon vacuum breaker is specifically designed for non-continuous pressure applications. It should not be used where continuous pressure or backpressure conditions may develop.

Where is this type of vacuum breaker typically installed?

Atmospheric vacuum breakers like the LF288AM2 are ideally installed 6 inches above the highest point on the downstream piping. They are suitable for low flow, non-continuous hot or cold water health hazard applications, such as on laboratory equipment.
