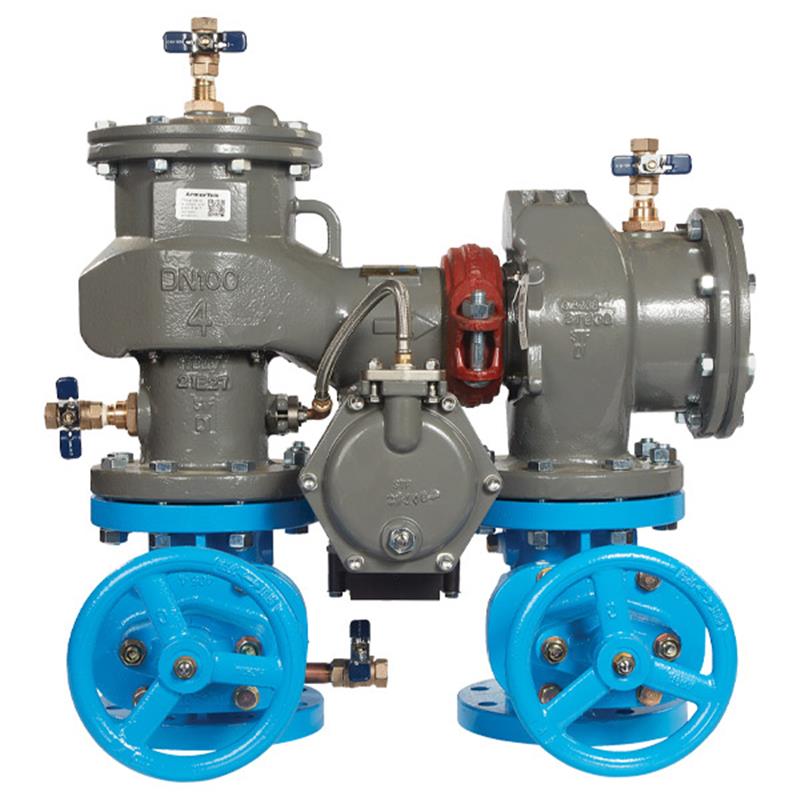

2 1/2 LF880V-NRS-FS

Item Number: F122951
1 1
$10,273.93
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Nominal Pipe Size: 2 1/2 inch
  • Type: Lead Free Reduced Pressure Zone Backflow Preventer
  • Protection: High hazard (toxic) fluids
  • Body Material: Ductile Iron with ArmorTek® epoxy coating
  • Shutoff Valves: Non-Rising Stem (NRS)
  • Relief Valve Seat: Stainless-Steel
  • Integrated SentryPlus Alert® flood sensor
  • Connectivity: Wi-Fi (Nexa®) or RS-485 Modbus alerts

Description

This FEBCO 2 1/2 inch lead free MasterSeries® reduced pressure zone backflow preventer assembly is designed for industrial water services, providing critical protection against high hazard (toxic) fluids. It features a durable ductile iron body with a patented ArmorTek® epoxy coating to resist corrosion, alongside stainless-steel relief valve seats and check components for long-term performance. Non-rising stem shutoff valves ensure reliable operation. An integrated SentryPlus Alert® flood sensor detects continuous relief valve discharge and can send alerts via Wi-Fi or RS-485 Modbus, enhancing system monitoring. The assembly also boasts a configurable N-Pattern design.

Help Me Connect

Sensor Integration

The integrated SentryPlus Alert® flood sensor detects excessive water discharges from the relief valve. For extended flood monitoring, this sensor is compatible with add-on sensor connection kits. It can integrate with a Sensor Control Monitor to deliver maintenance alerts to Building Automation Systems (BAS) via RS-485 Modbus or to the Nexa® platform through Wi-Fi.

View full details

Additional Details

This 2 1/2 inch lead free MasterSeries® reduced pressure zone backflow preventer assembly is designed to protect water services against high hazard (toxic) fluids in industrial installations and applications. Featuring non-rising stem (NRS) shutoff valves, this assembly is built for dependability and extended valve life.

Construction & Durability

  • Features a lead free ductile iron body constructed with a patented 3-part ArmorTek® epoxy coating system, engineered to limit both microbial induced (MIC) and exposed metal substrate corrosion.
  • Equipped with a stainless-steel relief valve seat and stainless-steel check components for maximum performance and longevity.
  • Includes test cocks, spring loaded check valves, and a pressure differential relief valve.
  • Configurable N-Pattern design allows for flexible installation.

Advanced Monitoring & Alerts

  • Integrated flood sensor with SentryPlus Alert® technology detects continuous discharge from the relief valve, signaling potential flooding events.
  • Compatible with add-on sensor connection kits for extended flood monitoring capabilities.
  • Enables integration with a Sensor Control Monitor to deliver critical maintenance alerts.
  • Alerts can be communicated to Building Automation Systems (BAS) via RS-485 Modbus or through the Nexa® platform by Wi-Fi connectivity.

Specifications

  • Model: LF880V-NRS-FS
  • Nominal Pipe Size: 2 1/2 inch
  • Assembly Type: Reduced Pressure Zone Backflow Preventer
  • Hazard Protection: High Hazard (Toxic) Fluids
  • Body Material: Lead Free Ductile Iron
  • Body Coating: ArmorTek® Epoxy (3-part, patented)
  • Shutoff Valves: Non-Rising Stem (NRS)
  • Relief Valve Seat Material: Stainless-Steel
  • Check Component Material: Stainless-Steel
  • Pattern: N-Pattern (Configurable)
  • Sensor Technology: SentryPlus Alert® Flood Sensor
  • Alert Connectivity: RS-485 Modbus, Wi-Fi (via Nexa® platform)
  • Relief Valve Discharge Rate (2 1/2" size): 55 GPM

Certificates & Approvals

  • Lead Free Construction

FAQs

What type of fluid hazards does this backflow preventer protect against?

This FEBCO backflow preventer is specifically designed to protect water services from high hazard (toxic) fluids in industrial installations and applications.

What material is the body constructed from and what corrosion protection does it offer?

The body is made from lead free ductile iron and features a patented 3-part ArmorTek® epoxy coating system. This coating is engineered to limit both microbial induced (MIC) and exposed metal substrate corrosion.

Does this assembly include a flood detection system?

Yes, it integrates a flood sensor with SentryPlus Alert® technology. This system detects continuous discharge from the relief valve, providing alerts for potential flooding events.

How can maintenance alerts from the flood sensor be received?

Alerts can be relayed via a Sensor Control Monitor, integrating with Building Automation Systems (BAS) through RS-485 Modbus, or through the Nexa® platform using Wi-Fi connectivity.

What is the relief valve discharge rate for the 2 1/2 inch model?

For the 2 1/2 inch size, the typical relief valve discharge rate is 55 GPM (gallons per minute). This information is helpful for proper floor drain sizing.
