2 1/2 M400Z-BFG

Item Number: 0191106
1 1
$8,949.00
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Product Type: Reduced Pressure Zone Backflow Preventer
  • Weight: 90.0 lb
  • Size: 2 1/2 inch
  • Housing Material: 304 (Schedule 40) Stainless Steel
  • Valve Type: Grooved Gear Operated Butterfly with Tamper Switch
  • Design: Extremely Compact, 70% Lighter
  • Maximum Working Pressure: 175 psi
  • Installation: Horizontal Z Pattern
  • Certifications: ASSE 1013, CSA B64.4, UL/CULus, FM, NSF/ANSI 61-G

Description

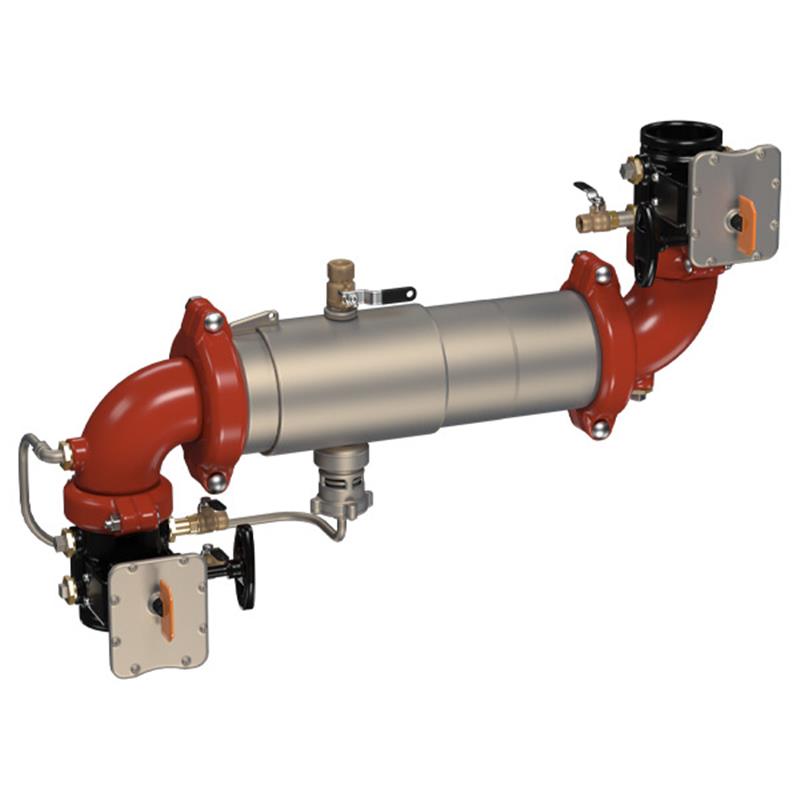

This Maxim M400Z-BFG is a 2 1/2 inch lead-free reduced pressure zone backflow preventer assembly designed to protect potable water systems from contamination due to backsiphonage or backpressure. Its compact, lightweight design, featuring a 304 stainless steel housing and grooved gear-operated butterfly shutoff valves with tamper switches, allows for easy installation in horizontal Z pattern configurations. It incorporates link check modules for low pressure loss and simple serviceability. With a maximum working pressure of 175 psi and a temperature range of 33°F to 110°F, this assembly meets ASSE 1013, CSA B64.4, UL/CULus, FM, and NSF/ANSI 61-G standards. Item number 0191106.

Help Me Connect

Connections

  • This 2 1/2 inch backflow preventer features grooved end connections for both the inlet and outlet.
  • The grooved couplings allow for integral pipeline adjustment and simplify installation into existing grooved piping systems.

Installation Note

  • When installing a drain line on Series M400 backflow preventers, utilize a 400 or 500 air gap.
View full details

Additional Details

The Maxim™ 2 1/2 inch lead-free reduced pressure zone backflow preventer assembly, model M400Z-BFG, is designed to protect potable water systems from contamination by backsiphonage or backpressure, in accordance with national plumbing codes.

This assembly features grooved gear-operated butterfly shutoff valves and a horizontal Z pattern configuration, ideal for health hazard applications and continuous pressure piping.

Construction & Design

  • Features an extremely compact design, making it 70% lighter than traditional designs for easier installation in smaller enclosures.
  • Constructed with a 304 (Schedule 40) stainless steel housing and sleeve for durability.
  • Includes torsion spring link check modules for lowest pressure loss and unmatched ease of serviceability.
  • Groove couplings allow for integral pipeline adjustment and simplified installation.
  • Equipped with reversible elastomer check discs and a bottom-mounted differential pressure relief valve.
  • Integral grooved gear-operated butterfly shutoff valves with tamper switches are included.
  • Designed for horizontal Z pattern installation.

Lead-Free Compliance

  • The wetted surface of this product contains less than 0.25% of lead by weight, ensuring compliance with lead-free requirements for consumable water applications.

Notice: The information contained herein is not intended to replace the full product installation and safety information available or the experience of a trained product installer. Thoroughly read all installation instructions and product safety information before beginning the installation of this product.

Specifications

General

  • Product Type: Reduced Pressure Zone Backflow Preventer Assembly
  • Model: M400Z-BFG
  • Nominal Size: 2 1/2 inch
  • Pattern: Horizontal Z Pattern
  • Valve Type: Grooved Gear Operated Butterfly Shutoff Valves with Tamper Switch
  • Manufacturer: Ames Fire & Waterworks

Materials

  • Housing & Sleeve Material: 304 (Schedule 40) Stainless Steel
  • Elastomers: EPDM, Silicone, Buna 'N'
  • Link Check Material: Noryl®, Stainless Steel
  • Check Disc Material: Reversible Silicone or EPDM
  • Test Cock Body: Lead Free Bronze
  • Pins & Fastener Material: 300 Series Stainless Steel
  • Spring Material: Stainless Steel

Performance

  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 33°F - 110°F (0.5°C – 43°C)

Dimensions & Weight

  • Height (H): 23 in (584 mm)
  • Length (P): 15 11/16 in (398 mm)
  • Width (M): 19 3/4 in (502 mm)
  • Overall Length (G): 32 1/2 in (825 mm)
  • Connection Length (J): 9 1/2 in (242 mm)
  • Weight: 67 lbs (30 kgs)

Certificates & Approvals

  • ASSE 1013
  • CSA B64.4
  • UL/CULus Listed
  • FM Approved
  • NSF/ANSI 61-G Certified
  • AWWA C511-97
  • FCCCHR-USC Approved (2 1/2" - 6" N and Z pattern, 2 1/2" - 10" horizontal)

FAQs

What is the primary use of the Maxim M400Z-BFG backflow preventer?

This backflow preventer is designed to protect potable water systems from contamination by preventing the reverse flow of non-potable substances due to backsiphonage or backpressure. It is suitable for health hazard applications and continuous pressure piping systems.

What type of shutoff valves does this assembly include?

The Maxim M400Z-BFG assembly comes equipped with grooved gear-operated butterfly shutoff valves that also include tamper switches for added security and monitoring.

What are the key material specifications for this backflow preventer?

The housing and sleeve are constructed from durable 304 (Schedule 40) stainless steel. Elastomers used include EPDM, Silicone, and Buna 'N', with reversible silicone or EPDM check discs.

What installation patterns is this backflow preventer approved for?

This 2 1/2 inch backflow preventer is specifically designed and approved for horizontal Z pattern installations. Other Series M400 models may support different configurations.

What certifications does the Maxim M400Z-BFG hold?

This assembly is certified by multiple bodies, including ASSE 1013, CSA B64.4, UL/CULus, FM Approved, NSF/ANSI 61-G, AWWA C511-97, and FCCCHR-USC approved for applicable sizes and patterns.
