2 188A

Item Number: 0340975
1 1
$1,084.50
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Size: 2 inch
  • Weight: 29.4 lb
  • Body Material: Brass
  • Connection Type: Female NPT
  • Maximum Working Pressure: 125 psi
  • Maximum Temperature: 180°F (82°C)
  • Seat Disc Material: Silicone
  • Prevents backsiphonage in irrigation systems
  • ASSE Standard 1001 Approved

Description

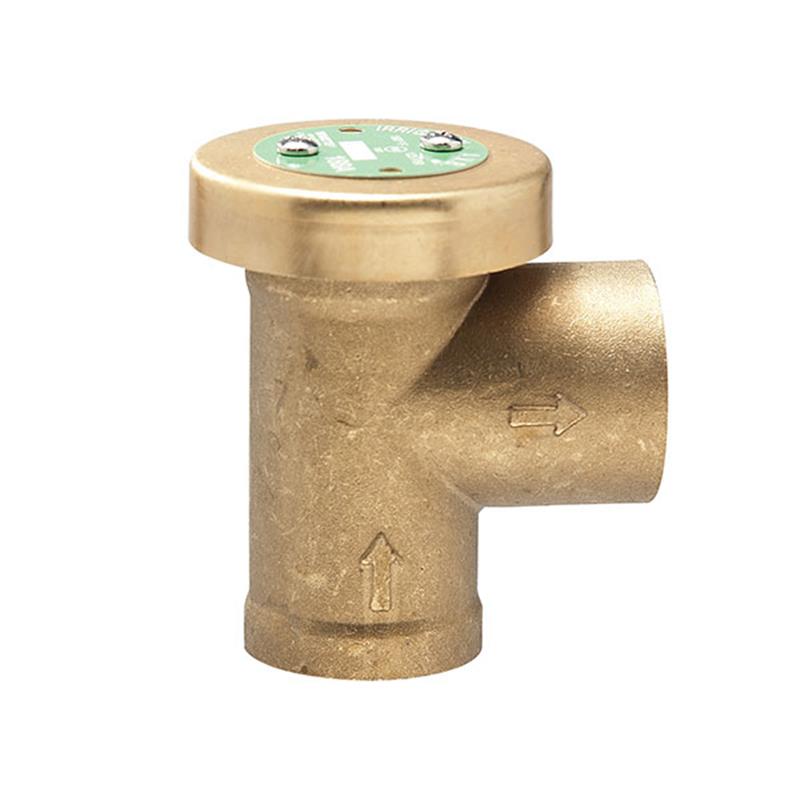

The Watts Series 188A 2 inch anti-siphon vacuum breaker backflow preventer safeguards drinking water from contamination due to backsiphonage. Constructed with a durable brass body and bronze internal trim, it is suitable for non-potable service applications like irrigation systems and industrial processing. This device features female NPT connections and a silicone seat disc for tight sealing, handling temperatures up to 180°F and a maximum working pressure of 125 psi. It is designed for low-flow, non-continuous pressure installations and meets ASSE 1001 and CSA B64.1.1 standards.

Help Me Connect

Installation Guidelines

  • This anti-siphon vacuum breaker must be installed a minimum of 6 inches above the highest point of the downstream piping to ensure proper operation.
  • It is critical that there are no shutoff valves downstream of the vacuum breaker, as this can impede its protective function.
  • The Watts Series 188A is specifically designed for non-continuous pressure installations. It is not suitable for continuous pressure or where backpressure conditions are possible.
  • Always consult and inquire with local governing authorities for specific installation requirements and compliance with regional codes.
View full details

Additional Details

The Watts Series 188A 2 inch anti-siphon vacuum breaker backflow preventer protects drinking water supplies from backsiphonage of contaminated water. It is engineered for non-potable service applications, including irrigation systems, firelines, and industrial processing, particularly in low-flow, non-continuous pressure installations.

Features

  • Constructed with a durable brass body and bronze internal trim for longevity.
  • Features a durable silicone seat disc, offering high heat and water hammer shock resistance and ensuring tight seating.
  • Equipped with a plastic disc float to prevent spilling under all flow rates, suitable for temperatures up to 180°F (82°C).
  • Automatically opens its atmospheric vent to prevent contamination upon loss of supply pressure or creation of negative supply pressure, and closes the vent while allowing water to flow under downstream demand.

Important Usage Considerations

  • This device is not designed for continuous pressure applications or conditions where backpressure may develop.
  • It must not be subjected to continuous pressure for more than 12 hours per ASSE Standard 1001.

Specifications

  • Nominal Size: 2 inch
  • Connection Type: Female NPT
  • Body Material: Brass
  • Internal Trim: Bronze
  • Seat Disc Material: Silicone
  • Disc Float Material: Plastic
  • Maximum Working Pressure: 125 psi (8.6 bar)
  • Maximum Temperature: 180°F (82°C)

Dimensions (Approximate)

  • Overall Height (A): 4 1/8 inch (105 mm)
  • Width (C): 2 7/8 inch (73 mm)
  • Depth (D): 2 1/2 inch (64 mm)

Weight

  • Weight: 5.25 lbs (2.38 kgs)

Certificates & Approvals

  • ASSE Standard 1001
  • ANSI A112.1.1
  • CSA B64.1.1
  • UPC Listed
  • Approved by the city of Los Angeles

FAQs

What is the primary use of the Watts Series 188A anti-siphon vacuum breaker?

It is designed to protect drinking water supplies from contamination caused by backsiphonage, particularly in non-potable service applications like irrigation systems, firelines, or industrial processing.

What type of connections does this vacuum breaker have?

The Watts Series 188A features female NPT (National Pipe Taper) inlet and outlet connections.

Can this vacuum breaker be used under continuous pressure?

No, this device is not designed for continuous pressure applications or where backpressure conditions may develop. It should not be subjected to continuous pressure for more than 12 hours.

What materials are used in the construction of this device?

The body is made of durable brass, with bronze internal trim, a silicone seat disc, and a plastic disc float.

What is the maximum operating temperature and pressure?

This vacuum breaker can operate in temperatures up to 180°F (82°C) and handles a maximum working pressure of 125 psi (8.6 bar).
