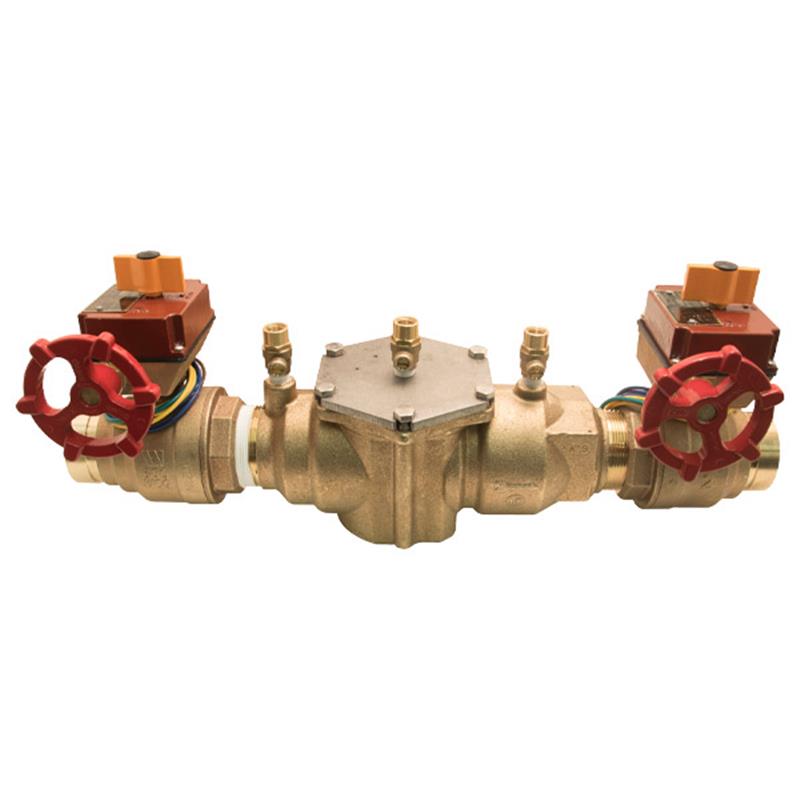

2 2000BM1-FP - GV

Item Number: 88005579
1 1
$4,245.00
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • 2 inch Double Check Valve Assembly
  • Weight: 27.7 lb
  • Cast Bronze Body Construction
  • Grooved Inlet/Outlet Connections
  • Maximum Operating Pressure: 175 PSI
  • Temperature Range: 33°F - 140°F
  • Gear Operated Slow Close Isolation Valves
  • Easy Maintenance with Single Top Entry Cover
  • Approved for Horizontal and Vertical Installations

Description

The Ames 2 inch Series 2000B-FP Double Check Valve Assembly prevents backflow of polluted non-potable water into the potable supply. This cast bronze backflow preventer features grooved inlet/outlet connections, gear-operated slow close isolation valves, and a single top entry cover for easy maintenance. Rated for a maximum working pressure of 175 PSI and temperatures from 33°F to 140°F, its compact, modular design ensures low pressure drop. The assembly includes two pre-wired tamper switches and four resilient seated test cocks. Approved by ASSE 1015, UL Classified, IAPMO/CUPC, AWWA C510, and CSA B64.5, it is suitable for non-health hazard cross-connection applications.

Help Me Connect

This 2 inch double check valve assembly features grooved inlet and outlet connections for integration into plumbing systems. The gear-operated ball valves comply with National Pipe Thread Taper ANSI/ASME B1.20.1 and Grooved end Table 4 of AWWA C 606-11 standards, ensuring compatibility with standard grooved piping systems. Always verify with local codes for specific installation requirements.

View full details

Additional Details

This 2 inch double check valve assembly backflow preventer is designed to prevent the reverse flow of contaminated water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage and backpressure. It is ideal for protection at cross-connections identified as non-health hazard applications, aligning with national plumbing codes and water authority requirements.

This compact, modular assembly features a bronze body with grooved inlet/outlet connections, gear-operated slow close isolation valves, and a single top entry access cover for easy maintenance. It is approved for both horizontal and vertical installations.

Key Features

  • Body Material: Cast bronze construction (1" - 2" sizes)
  • Isolation Valves: Two resilient seated, gear operated slow close shutoffs
  • Check Modules: Two positive seating with captured springs and replaceable rubber seat discs
  • Tamper Switches: Two pre-wired tamper switches per shutoff
  • Test Cocks: Four resilient seated, top mounted
  • Access: Single top entry cover for service of all internal components
  • Design: Modular and compact for ease of installation and maintenance
  • Performance: Low pressure drop
  • Maintenance: No special tools required
  • Wiring: Reversible wiring harness for gear-operated ball valves, configurable Normally Open or Normally Closed

⚠ WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing, consult your local water authority, building, and plumbing codes.

Specifications

  • Valve Type: Double Check Valve Assembly (DCVA)
  • Size: 2 inch
  • Body Material: Cast Bronze
  • Inlet/Outlet Connection: Grooved
  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Temperature Range: 33°F - 140°F (0.5°C - 60°C)
  • Isolation Valves: Gear Operated Slow Close
  • Check Modules: Two Positive Seating, Replaceable Seats and Discs
  • Access: Single Top Entry Cover
  • Tamper Switches: 2 Pre-wired, per shutoff
  • Test Cocks: 4 Resilient Seated

Certificates & Approvals

  • Approved by Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • Horizontal and Vertical "Flow-Up" Approved
  • ASSE 1015 Listed
  • UL Classified (US & Canada)
  • IAPMO/CUPC
  • AWWA Standard C510 Compliant
  • CSA B64.5
  • NFPA Compliant: 13, 14, 15, 16, 20, 22 & 24
  • End Connections (Gear-Operated Ball Valves): National Pipe Thread Taper ANSI/ASME B1.20.1 - Grooved end Table 4 of AWWA C 606-11

FAQs

What is the primary function of this 2-inch double check valve assembly?

This backflow preventer is designed to prevent non-potable, polluted water from flowing back into the potable water supply system due to backsiphonage or backpressure. It is used for non-health hazard cross-connection applications.

What type of connections does this model use?

This specific model (2000BM1-FP-GV) features grooved inlet and outlet connections, compliant with AWWA C 606-11 standards for gear-operated ball valves.

What are the key maintenance features of this backflow preventer?

It offers ease of maintenance with a single top entry access cover. The check module seats and rubber seat discs are replaceable, and no special tools are required for service.

What are the operating pressure and temperature limits?

The maximum working pressure for this assembly is 175 PSI (12.1 bar), and it operates within a temperature range of 33°F to 140°F (0.5°C to 60°C).

Is this backflow preventer approved for specific standards?

Yes, it meets the requirements of ASSE Std. 1015, AWWA Std. C510, UL Classified (US & Canada), IAPMO/CUPC, and CSA B64.5. It is also approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California.
