2 2000BM1-HC

Item Number: 0691939
1 1
$7,678.50
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 2 Inch
  • Body Material: Bronze
  • Maximum Working Pressure: 175 PSI
  • Temperature Range: 33°F to 140°F
  • Inlet Connection: Female Hydrant Thread
  • Outlet Connection: Male Hydrant Thread
  • Valves: Quarter Turn Shutoff
  • Serviceable in-line from top

Description

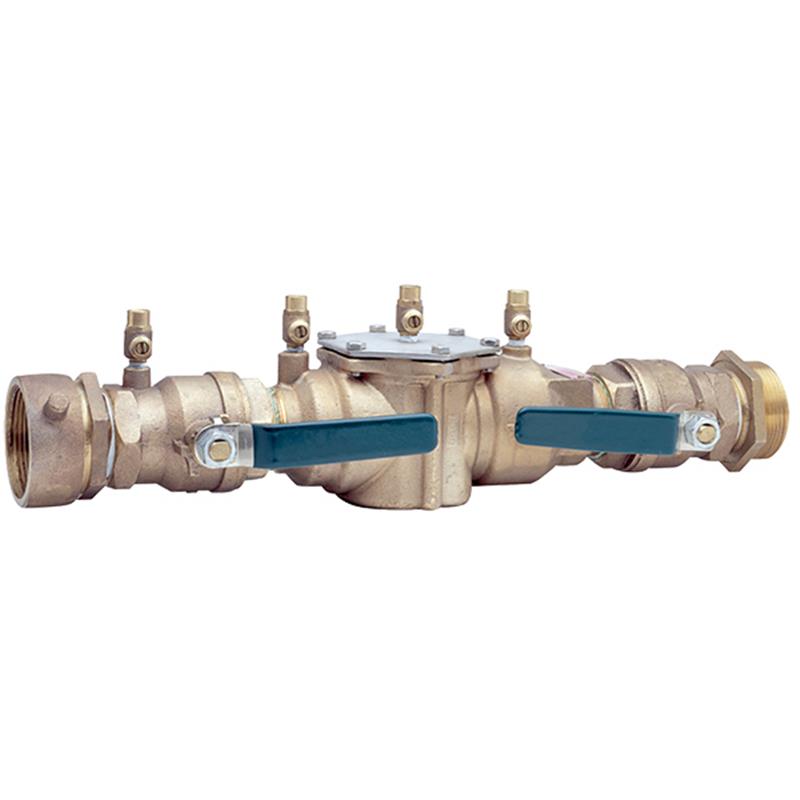

The Ames Fire & Waterworks Series 2000B double check valve backflow preventer assembly in 2 inch size prevents polluted water from entering potable water supplies in non-health hazard cross-connections. It features a durable bronze body, female hydrant thread inlet, and male hydrant thread outlet with quarter-turn shutoffs. Designed for easy maintenance, its internal components are serviceable in-line from the top. The assembly is rated for a maximum working pressure of 175 PSI and operates within a temperature range of 33°F to 140°F, meeting ASSE 1015 and AWWA C510 standards.

Help Me Connect

Connections

  • The inlet side of this assembly features a 2 inch female hydrant thread for connecting to a corresponding male hydrant thread.
  • The outlet side is equipped with a 2 inch male hydrant thread, designed for connecting to a female hydrant thread.
  • The integrated quarter turn shutoff valves allow for easy control of water flow.
View full details

Additional Details

The Ames Fire & Waterworks Series 2000B double check valve backflow preventer assembly is designed to prevent the backflow of polluted water into the potable water supply. This assembly is suitable for referenced cross-connections identified as non-health hazard applications.

Features

  • Bronze body construction for durability
  • Short lay length for compact installation
  • Quarter turn shutoffs for easy operation
  • Internal parts serviceable in-line from the top of the unit
  • Ease of maintenance with only one cover
  • Replaceable seats and seat discs
  • Modular construction
  • Compact design
  • Low pressure drop
  • No special tools required

WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing, consult your local water authority, building, and plumbing codes.

Specifications

  • Size: 2 Inch
  • Body Material: Bronze
  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Temperature Range: 33°F - 140°F (0.5°C - 60°C)
  • Operation: Quarter Turn Shutoff Ball Valves
  • Serviceability: In-line from top

Connections

  • Inlet: Female Hydrant Thread
  • Outlet: Male Hydrant Thread

Certificates & Approvals

  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • ASSE 1015 Listed
  • UL Classified (US & Canada)
  • IAPMO/CUPC
  • AWWA Standard C510 Compliant
  • CSA B64.5
  • NFPA 13, 14, 15, 16, 20, 22 & 24 Compliant
  • Horizontal and Vertical "Flow-Up" approved on all sizes

FAQs

What is the primary purpose of this backflow preventer?

This backflow preventer is designed to prevent the backflow of polluted water into the potable water supply, specifically in non-health hazard cross-connection applications.

What are the connection types for this 2-inch assembly?

This assembly features a 2-inch female hydrant thread inlet and a 2-inch male hydrant thread outlet, equipped with quarter-turn shutoff valves.

What is the maximum operating pressure and temperature range?

The maximum working pressure for this unit is 175 PSI (12.1 bar), and it operates efficiently within a temperature range of 33°F to 140°F (0.5°C to 60°C).

Can this backflow preventer be used for drinking water lines?

No, it is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Always consult local water authority and plumbing codes.

Is the unit easy to maintain?

Yes, the design allows for ease of maintenance with only one cover. Internal parts, including seats and seat discs, are replaceable and serviceable in-line from the top.
