2 3000BM1-FP-GPM

Item Number: 88007309
1 1
$7,105.49
On Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2-5 Days When Back In Stock

Brand - Ames
  • Size: 2 inch
  • Weight: 95.7 lb
  • Body Material: Cast Bronze ASTM B584
  • Valves: Right Hand Close Gear Operated Ball
  • Includes: Pre-wired tamper switches
  • Meter Type: Gallon Per Minute (GPM)
  • Maximum Working Pressure: 175 PSI
  • Approvals: ASSE 1048, UL, IAPMO/CUPC
  • Application: Non-health hazard fire protection systems

Description

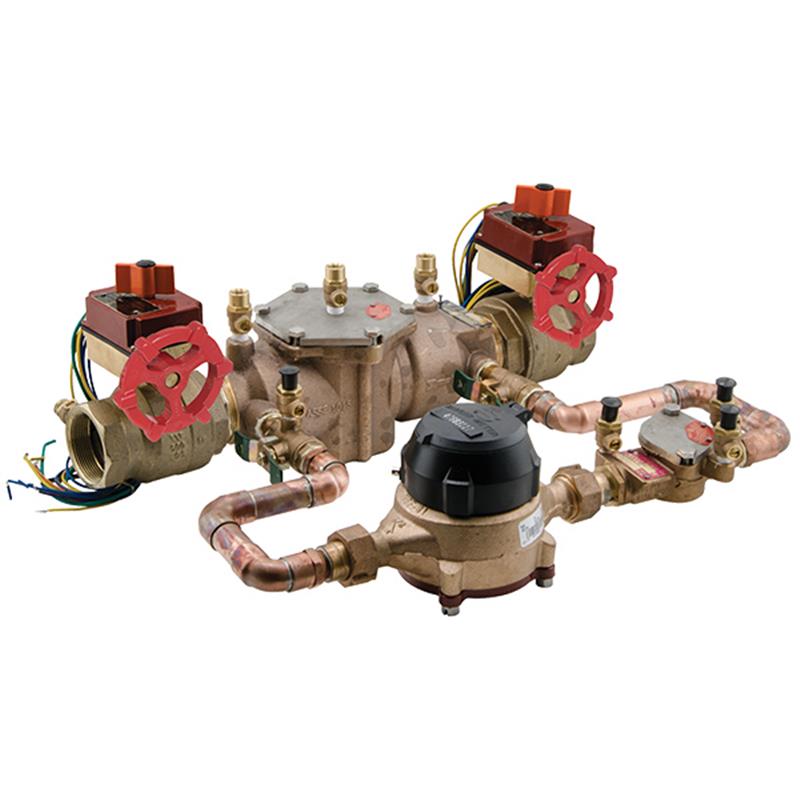

The Ames 2 inch Series 3000B Double Check Detector Backflow Prevention Assembly is designed for non-health hazard applications like fire protection systems, irrigation, and industrial processing. This cast bronze assembly protects drinking water supplies from cross-connections and helps detect leaks or unauthorized water usage. It features right-hand close gear operated ball valves with pre-wired tamper switches and a 5/8" x 3/4" gallon per minute (GPM) water meter. With a compact, inline serviceable design, it allows for easy maintenance without special tools. Approved for horizontal and vertical up flow, it has a maximum working pressure of 175 PSI.

Help Me Connect

Application & Installation

  • This 2 inch double check detector backflow preventer assembly is designed for non-health hazard applications such as commercial fire sprinkler systems, irrigation, fire line, or industrial processing.
  • It is suitable for detecting potential underground water leaks and unauthorized water usage within these systems.
  • The assembly is approved for both horizontal and vertical up flow installation.
  • Recommended installation is after a water meter and/or main line isolation shutoff valve, following the latest edition of the Uniform Plumbing Code and local governing codes.
View full details

Additional Details

This 2 inch Ames Series 3000B Double Check Detector Backflow Prevention Assembly protects drinking water supplies from dangerous cross-connections in non-health hazard applications such as fire line, irrigation, or industrial processing.

It is designed to detect leaks or unauthorized water usage within these systems.

Features

  • 2 inch cast bronze body construction.
  • Equipped with Right Hand Close Gear Operated Ball Valves and Pre-Wired Tamper Switches.
  • Includes a Gallon Per Minute (GPM) water meter on the auxiliary bypass line to detect leaks and unauthorized water usage.
  • Compact modular design facilitates ease of installation and maintenance.
  • Inline serviceable assembly with captured modular spring loaded checks and field replaceable seats & discs.
  • No special tools required for servicing.
  • Approved for horizontal and vertical up flow installation.

WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Consult your local water authority, building and plumbing codes before installation.

Specifications

General

  • Product Type: Double Check Detector Backflow Prevention Assembly
  • Series: 3000B
  • Size: 2 inch
  • Body Material: Cast Bronze ASTM B584
  • Isolation Valves: Right Hand Close Gear Operated Ball Valves
  • Tamper Switches: Pre-Wired
  • Water Meter: 5/8 inch x 3/4 inch Gallon Per Minute (GPM) Meter (AWWA C700 Compliant)
  • Elastomers: Silicone
  • O-Rings: EPDM
  • Check Modules: Engineered Plastics
  • Serviceability: Inline, No Special Tools Required

Pressure Ratings

  • Maximum Working Pressure: 175 PSI
  • Minimum Working Pressure: 10 PSI
  • Hydrostatic Test Pressure: 350 PSI
  • Hydrostatic Safety Pressure Rating: 700 PSI

Temperature Ratings

  • Continuous Operating Range: 33°F - 110°F (0.5°C - 43°C)
  • Intermittent Operating Range: Up to 140°F (60°C), not to exceed 12 hour duration

End Connections

  • Main Valve: National Pipe Thread Taper (ANSI/ASME B1.20.1)

Certificates & Approvals

  • Approved by FCCCHR-USC
  • ASSE 1048 Listed
  • UL Classified (US & Canada)
  • IAPMO/CUPC
  • AWWA Standard C510 Compliant
  • CSA B64.5
  • NFPA Compliant: 13, 14, 15, 16, 20, 22 & 24

FAQs

What is the primary use of the Ames 3000B Double Check Detector Backflow Prevention Assembly?

This assembly is primarily used to protect drinking water supplies from dangerous cross-connections in non-health hazard applications, such as fire protection systems, irrigation, or industrial processing, and to detect leaks or unauthorized water usage.

What size is this backflow prevention assembly?

This specific model is a 2 inch assembly.

What type of valves are included with this model?

This 3000BM1-FP-GPM model is fitted with Right Hand Close Gear Operated Ball Valves and includes pre-wired tamper switches.

Does this assembly include a water meter?

Yes, it includes a 5/8 inch x 3/4 inch Gallon Per Minute (GPM) water meter on the auxiliary bypass line, which is designed to detect leaks and unauthorized water usage.

What are the maximum and minimum working pressure ratings for this device?

The maximum working pressure for this assembly is 175 PSI, and the minimum working pressure is 10 PSI.
