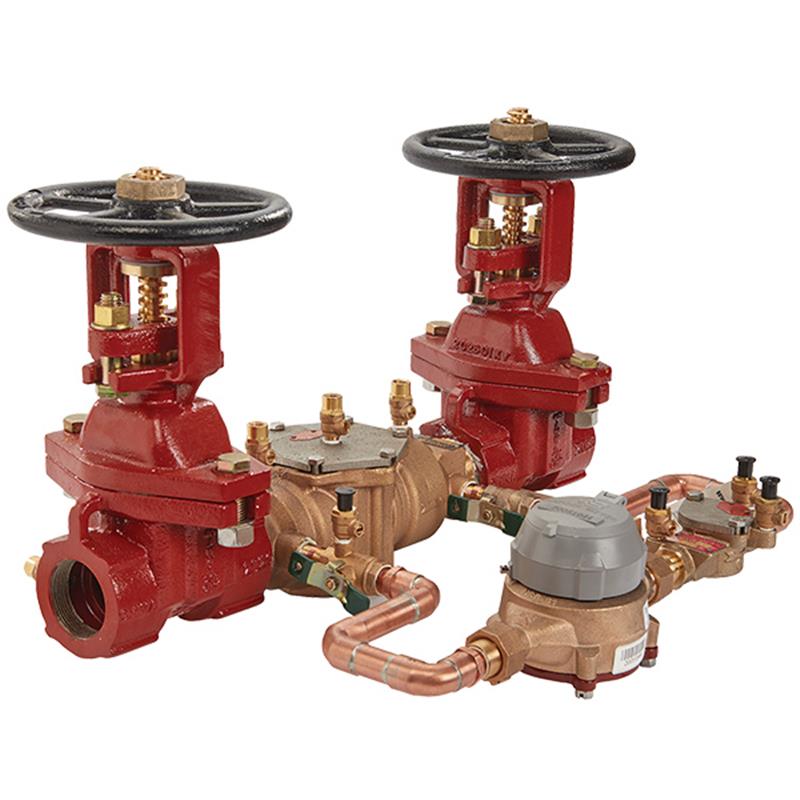

2 3000BM1-OSY-GPM

Item Number: 0696041
1 1
$10,844.24
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 2 inch
  • Weight: 155.0 lb
  • Body Material: Cast Bronze ASTM B584
  • Shutoff Valves: OS&Y Gate Valves
  • Bypass Meter: 5/8" x 3/4" Gallon per Minute Water Meter
  • Maximum Working Pressure: 175 psi
  • Compact modular design
  • No special tools required for servicing
  • Approved for horizontal and vertical flow-up installation

Description

This 2 inch AMES Series 3000B Double Check Detector Backflow Prevention Assembly protects potable water from non-health hazard contamination due to backsiphonage or backpressure. It is specifically designed for non-health hazard fire protection systems, detecting leaks and unauthorized water usage. Key features include a durable cast bronze ASTM B584 body, OS&Y gate shutoff valves, and a 5/8" x 3/4" water meter. The compact modular design allows for easy inline servicing without special tools. Approved for both horizontal and vertical flow-up installations, this assembly ensures reliable backflow prevention for commercial fire sprinkler systems. Item number 0696041.

Help Me Connect

Installation Guidance

  • This assembly is typically installed for service on commercial fire sprinkler systems.
  • It is recommended to install this device after a water meter and/or main line isolation shutoff valve.
  • Installation must comply with the latest edition of the Uniform Plumbing Code and local governing codes.
  • Approved for horizontal and vertical flow-up installation.
View full details

Additional Details

This 2 inch AMES Series 3000B Double Check Detector Backflow Prevention Assembly is designed to prevent the reverse flow of non-potable water into the potable water supply due to backsiphonage or backpressure. It is ideal for use on non-health hazard fire protection systems and other cross-connections to detect leaks or unauthorized water usage.

Key Features

  • Compact modular design with a single top entry cover for ease of maintenance and assembly access.
  • No special tools required for servicing main checks or auxiliary bypass.
  • Features OS&Y (Outside Stem and Yoke) resilient seated gate valves.
  • Includes a 5/8" x 3/4" water meter for detecting underground leaks and unauthorized water usage.
  • Captured modular spring loaded checks and field replaceable seats & discs.
  • Inline serviceable main assembly and 1/2" bypass assembly.
  • Approved for horizontal and vertical flow-up installation.
This device is intended for non-health hazard applications. Consult local water authority, building, and plumbing codes for installation requirements, as it is illegal to use this product in any plumbing system providing water for human consumption in the United States.

Specifications

General

  • Product Type: Double Check Detector Backflow Prevention Assembly
  • Size: 2 inch
  • Body Material: Cast Bronze ASTM B584
  • Shutoff Valves: OS&Y (Outside Stem and Yoke) Gate Valves
  • Bypass Meter: 5/8" x 3/4" Water Meter (AWWA C700 Compliant)
  • Main Check Modules: Two (2) independently acting poppet-type
  • Test Cocks: Resilient seated
  • Design: Compact, modular with single top entry access
  • Installation Orientation: Horizontal and Vertical Up

Pressure Ratings

  • Maximum Working Pressure: 175 psi
  • Minimum Working Pressure: 10 psi
  • Hydrostatic Test Pressure: 350 psi
  • Hydrostatic Safety Pressure Rating: 700 psi

Temperature Ratings

  • Continuous Operating Range: 33°F-110°F (0.5°C-43°C)
  • Intermittent Operating Range: Up to 140°F (60°C) for maximum 12 hours

Materials

  • Elastomers: Silicone
  • O-Rings: EPDM
  • Check Modules: Engineered Plastics

Certificates & Approvals

  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • ASSE 1048 Listed
  • UL Classified (US & Canada)
  • IAPMO/CUPC
  • AWWA Standard C510 Compliant
  • CSA B64.5
  • NFPA Compliant: 13, 14, 15, 16, 20, 22 & 24
  • OS&Y Gate Valve End Connections: Compliant to ASME B16.1 Class 125 & AWWA Class D Flange

FAQs

What is the primary application of this backflow preventer?

This backflow preventer is designed for non-health hazard fire protection systems and other cross-connections to prevent non-potable water from entering the potable water supply.

What size is this backflow prevention assembly?

This specific model is a 2-inch double check detector backflow prevention assembly.

Does this unit include a water meter?

Yes, it includes a 5/8" x 3/4" water meter in the auxiliary bypass line, which detects underground leaks and unauthorized water usage.

Can this assembly be installed vertically?

Yes, the AMES Series 3000B is approved for both horizontal and vertical flow-up installation orientations.

What kind of shutoff valves are included?

This assembly features OS&Y (Outside Stem and Yoke) resilient seated gate valves.
