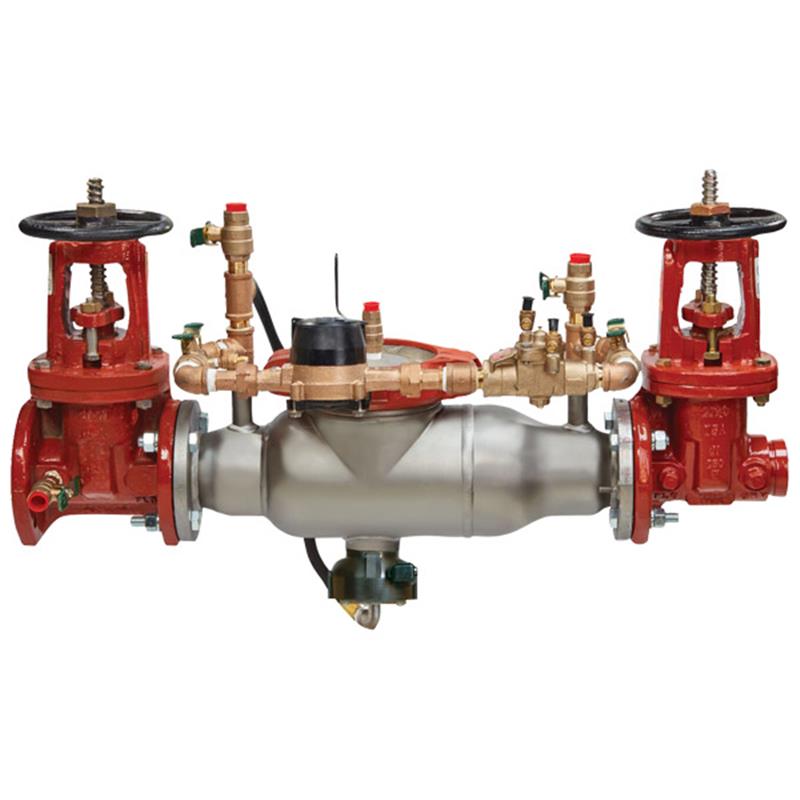

2.5 5000SS-DOSYFxG-G-FSDOSY-FxG-GPM-FS

Item Number: F0694023
1 1
$8,866.50
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 2 1/2 inch
  • Weight: 185.0 lb
  • Body Material: Stainless Steel
  • Inlet Connection: Flanged
  • Outlet Connection: Grooved
  • Shutoff Valves: Domestic OSY Resilient Seated Gate Valves
  • Maximum Working Pressure: 175 PSI
  • Temperature Range: 33°F - 110°F
  • Flood Sensor: SentryPlus Alert® technology

Description

The Ames 5000SS Series 2 1/2 inch Reduced Pressure Detector Backflow Preventer Assembly guards potable water supplies from contamination in non-potable applications like firelines or irrigation. Featuring durable stainless steel construction for corrosion resistance and a lightweight body for easier installation, it includes domestic OSY shutoffs, a flanged inlet, and a grooved outlet. A SentryPlus Alert® flood sensor detects relief valve discharge, with optional connection kits enabling BMS or cellular communication for alerts. The assembly also has a GPM meter to detect leaks. Item number F0694023.

Help Me Connect

Connections

  • The main assembly features a 2 1/2 inch flanged inlet for connection to a corresponding flanged pipe.
  • The outlet side provides a 2 1/2 inch grooved connection for easy installation with grooved piping systems.
  • It is equipped with domestic OSY (Outside Stem and Yoke) resilient seated gate valves on both the inlet and outlet.

Flood Sensor Connectivity

The integrated SentryPlus Alert® flood sensor detects excessive relief valve discharges. To activate its communication capabilities and receive alerts, an add-on sensor connection kit is required (sold separately). These kits allow integration with:

  • Building Management Systems (BMS)
  • Cellular network communication
  • A Sensor Control Monitor for integration with Building Automation Systems (BAS) via RS‑485 Modbus or to the Nexa® platform through Wi-Fi.
View full details

Additional Details

This 2 1/2 inch Ames 5000SS Series Reduced Pressure Detector Backflow Preventer Assembly is designed to protect potable water supplies from dangerous cross-connections caused by backsiphonage or backpressure.

It is suitable for non-potable service applications such as irrigation, fireline, or industrial processing where health hazard conditions exist.

Features

  • Stainless steel construction provides long-term corrosion resistance and maximum strength.
  • Lightweight stainless steel body reduces installation and shipping costs.
  • Short end-to-end dimensions make retrofit installations easier.
  • Bottom-mounted relief valve minimizes clearance requirements when installed against an outside wall.
  • Cam-check valves provide maximum flow at a low pressure drop.
  • No special tools are required for servicing.
  • Compact construction allows for smaller enclosures.
  • Stainless steel relief valve features a balanced rolling diaphragm to eliminate sliding seals and lower maintenance costs.
  • Detects underground leaks and unauthorized water use.
  • Furnished with a Gallon Per Minute (GPM) meter.
  • Includes a flood sensor with SentryPlus Alert® technology for detecting excessive water discharges from the relief valve.
  • The flood alert feature is activated with an add-on sensor connection kit, compatible with BMS and cellular network communication.
  • The Sensor Control Monitor integrates smart devices with BAS via RS‑485 Modbus or the Nexa® platform through Wi-Fi.

WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing standard material product, consult your local water authority, building and plumbing codes.

Specifications

  • Body Material: Stainless Steel
  • Main Valve Body Material: 300 Series Stainless Steel
  • Check Assembly Material: Noryl®
  • Inlet Connection: 2 1/2 inch Flanged
  • Outlet Connection: 2 1/2 inch Grooved
  • Shutoff Valves: Domestic OSY (Outside Stem and Yoke) Resilient Seated Gate Valves
  • Bypass Meter: Gallons Per Minute (GPM)
  • Maximum Working Pressure: 175 PSI
  • Temperature Range: 33°F - 110°F (0.5°C - 43°C)
  • Flood Detection: SentryPlus Alert® Flood Sensor Included

Certificates & Approvals

  • AWWA C511-92
  • IAPMO R&T® (UPC®)
  • cUPC®
  • ASSE® 1047
  • CSA B64.4
  • UL Listed
  • FM Approved

FAQs

What is the primary application for this Ames 5000SS backflow preventer?

This backflow preventer is designed for non-potable service applications such as irrigation systems, firelines, and industrial processing, particularly in health hazard conditions. It is NOT for use in plumbing systems providing water for human consumption in the United States.

What are the connection types for this 2 1/2 inch assembly?

This assembly features a 2 1/2 inch flanged inlet connection and a 2 1/2 inch grooved outlet connection. It includes domestic OSY (Outside Stem and Yoke) resilient seated gate valves on both ends.

How does the SentryPlus Alert® flood sensor work?

The flood sensor detects excessive water discharges from the relief valve. To activate the sensor for communication and alerts, an add-on connection kit is required. These kits can provide connectivity for BMS, cellular communication, or integrate with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.

What materials are used in the construction of this backflow preventer?

The main body of the assembly is constructed from stainless steel for corrosion resistance. Internal parts are made from 300 Series stainless steel, and the check assembly utilizes Noryl®.

What is the maximum operating pressure and temperature range?

This backflow preventer is rated for a maximum operating pressure of 175 PSI (12.1 bar). The safe operating temperature range for the assembly is 33°F to 110°F (0.5°C to 43°C).
