2.5 5000SS-DOSYGxG-G-FSDOSY-FxG-GPM-FS

Item Number: F0694021
1 1
$9,491.24
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 2 1/2 inch
  • Weight: 185.0 lb
  • Body Material: 300 Series Stainless Steel
  • Maximum Operating Pressure: 175 PSI
  • Connections: Grooved Inlet x Grooved Outlet
  • Detector Meter: Gallons Per Minute (GPM)
  • Flood Sensor: SentryPlus Alert® Technology
  • Shutoffs: Domestic OSY Gate Valves
  • Approvals: UL Classified, FM Approved

Description

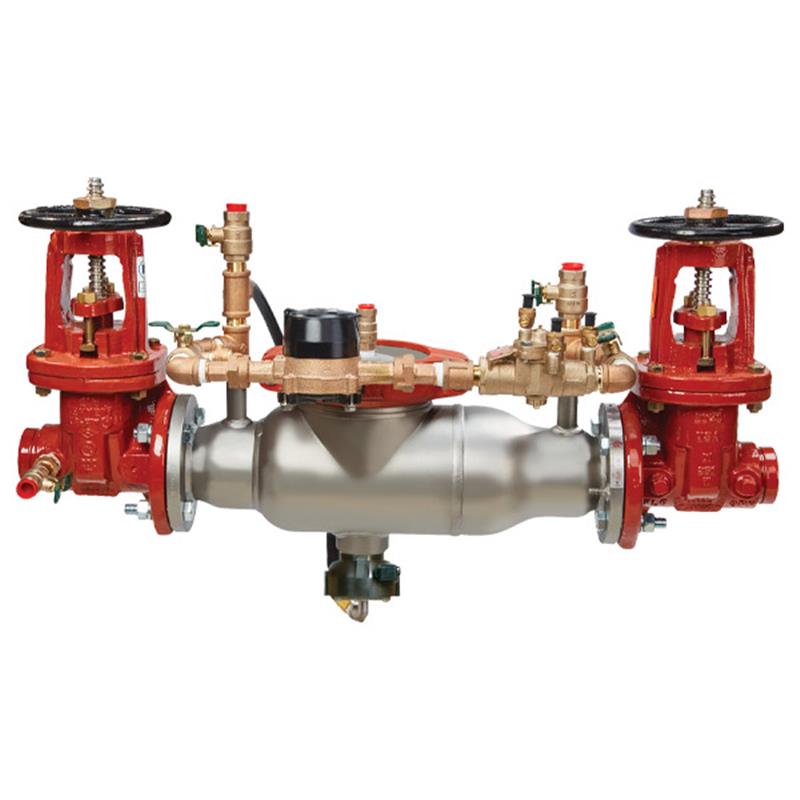

This AMES Series 5000SS 2 1/2 inch Reduced Pressure Detector Backflow Preventer Assembly with domestic OSY shutoffs prevents the reverse flow of non-potable water into potable water supplies. Constructed from 300 Series stainless steel for corrosion resistance, it features grooved inlet and outlet connections and thermoplastic cam-check valves. A GPM meter detects leaks, and integrated SentryPlus Alert flood sensor technology warns of excessive relief valve discharge, enhancing system safety and preventing damage. It is UL Classified and FM Approved for horizontal installation in health hazard applications. Item number F0694021.

Help Me Connect

Connections

  • The grooved inlet connects to a 2 1/2 inch grooved piping system.
  • The grooved outlet connects to a 2 1/2 inch grooved piping system.
  • An add-on sensor connection kit is required to activate the flood sensor's communication features and integrate with Building Management Systems (BMS), cellular networks, or the Nexa® platform via Wi-Fi.

Compatibility

  • Designed for non-potable service applications, including irrigation, fireline, and industrial processing.
View full details

Additional Details

The AMES Series 5000SS 2 1/2 inch Reduced Pressure Detector Backflow Preventer Assembly is engineered to safeguard potable water supplies from contamination caused by backpressure or backsiphonage of non-potable substances, specifically for fire protection systems and other non-potable service applications.

This assembly is ideal for uses such as irrigation, fireline systems, and industrial processing, particularly in health hazard applications. It features a compact, modular design with a lightweight stainless steel body and domestic grooved outside stem and yoke resilient seated gate valves.

WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing, consult your local water authority, building, and plumbing codes.

Flood Sensor Technology

  • Includes a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve.
  • The sensor relays a signal to facility personnel for corrective action, helping to limit flooding and costly damage.
  • An add-on sensor connection kit is required to activate the flood sensor's communication capabilities. Without this kit, the sensor is a passive component.
  • Connection kit options include BMS, cellular communication, and the Sensor Control Monitor for integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.

Construction & Components

  • Main body and internal metal parts are constructed from 300 Series stainless steel for long-term corrosion resistance and maximum strength.
  • Features thermoplastic cam-check valves for maximum flow at low pressure drop.
  • A corrosion-resistant stainless steel bottom-mounted relief valve with a balanced rolling diaphragm minimizes sliding seals and lowers maintenance.
  • Equipped with a gallons per minute (GPM) metered bypass to detect underground leaks and unauthorized water use.
  • Domestic outside stem and yoke (OSY) resilient seated gate valves.

Design & Installation Benefits

  • Lightweight stainless steel body reduces installation and shipping costs.
  • Short end-to-end dimensions make retrofit installations easier.
  • Compact construction allows for smaller enclosures.
  • No special tools required for servicing.
  • Bottom-mounted relief valve design reduces clearance requirements, especially when installed against an outside wall.

Specifications

General

  • Product Type: Reduced Pressure Detector Backflow Preventer Assembly
  • Series: 5000SS
  • Size: 2 1/2 inch
  • Connections: Grooved Inlet x Grooved Outlet
  • Shutoffs: Domestic Outside Stem and Yoke (OSY) Resilient Seated Gate Valves

Materials

  • Body Material: 300 Series Stainless Steel
  • Internal Metal Parts: 300 Series Stainless Steel
  • Check Assembly Material: Noryl®
  • Relief Valve Material: Stainless Steel

Performance

  • Maximum Operating Pressure: 175 PSI (12.1 bar)
  • Temperature Range: 33°F - 110°F (0.5°C - 43°C)

Dimensions (Approximate)

  • Overall Length (A): 37 inches (940 mm)
  • Face-to-Face (C - OSY): 16 3/4 inches (426 mm)
  • Inlet to Centerline (D): 10 3/8 inches (264 mm)
  • Outlet to Centerline (E): 10 1/2 inches (267 mm)
  • Bypass Length (L): 22 inches (559 mm)

Certificates & Approvals

  • AWWA C511-92
  • IAPMO
  • SCC
  • UL Classified
  • FM Approved
  • Horizontal Installation
  • CSA B64.4

FAQs

What is the primary application for this backflow preventer?

This backflow preventer is primarily used in non-potable service applications such as irrigation, fireline systems, and industrial processing to protect drinking water supplies from contamination. It is suitable for health hazard applications.

Is this product suitable for use with potable (drinking) water systems?

No, this product is explicitly designed for non-potable water systems. It is illegal to use this backflow preventer in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States.

How does the flood sensor feature work?

The integrated SentryPlus Alert® flood sensor detects excessive water discharges from the relief valve. When paired with an add-on connection kit, it relays signals to facility personnel for notification, helping to prevent flooding and costly damage.

What type of connections does this backflow preventer use?

This assembly features 2 1/2 inch grooved inlet and grooved outlet connections, along with domestic outside stem and yoke (OSY) resilient seated gate valves.

What certifications does this backflow preventer hold?

This AMES Series 5000SS assembly is UL Classified, FM Approved, and meets AWWA C511-92, IAPMO, SCC, and CSA B64.4 standards for horizontal installation.
