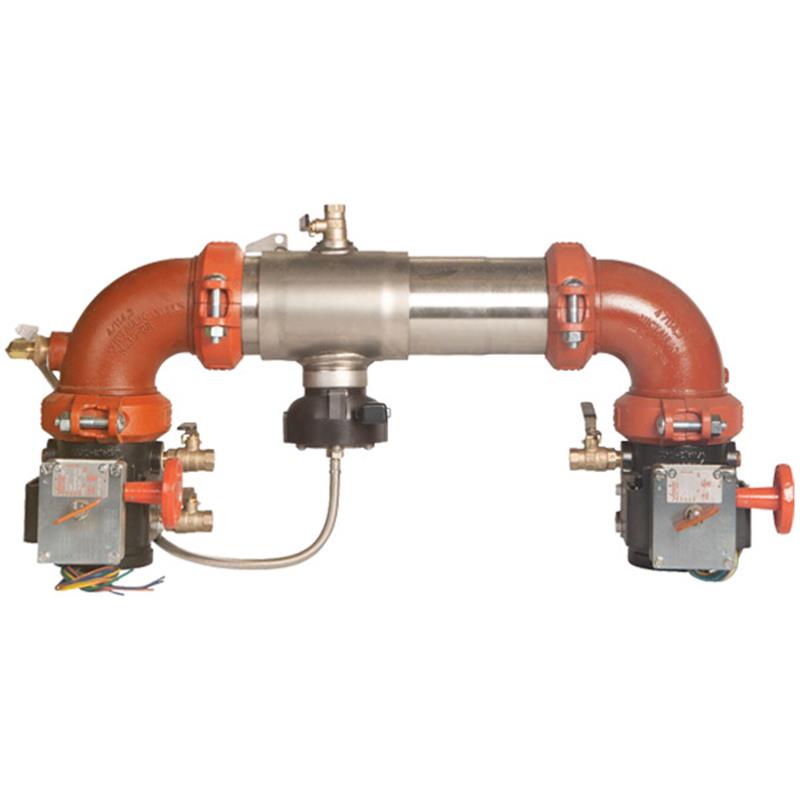

2.5 C400-DOSY-FS

Item Number: F0206383
1 1
$6,358.63
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Nominal Size: 2 1/2 inch
  • Weight: 200.0 lb
  • Body Material: 304 Stainless Steel
  • Valve Type: Domestic OSY Gate Valves
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F - 140°F
  • Features Flood Sensor with SentryPlus Alert® Technology
  • Compact Design
  • Approved for Horizontal Installation

Description

The Ames Colt Series C400 2 1/2 inch reduced pressure zone backflow preventer assembly protects potable water from contamination by non-potable substances due to backsiphonage and backpressure. It features a compact 304 stainless steel body, domestic OSY gate valves, and grooved connections for horizontal installation. The assembly includes a flood sensor with SentryPlus Alert technology to detect excessive relief valve discharge and can be connected to alert systems with an add-on kit. Rated for 175 psi and approved by AWWA, UL, FM, and NSF, this unit ensures reliable protection for health hazard applications. Item number F0206383.

Help Me Connect

Connections and Installation

  • This 2 1/2 inch Reduced Pressure Zone assembly is designed for horizontal installation in line with the direction of flow.
  • It features groove couplings on both the inlet and outlet for straightforward installation and pipeline alignment with existing grooved piping systems.
  • The OSY (Outside Stem and Yoke) gate valves include an integrated supervisory switch option.

Flood Sensor Connectivity

  • The integrated flood sensor requires an add-on sensor connection kit (sold separately) to activate its alert capabilities.
  • Connection kit options can facilitate integration with Building Automation Systems (BAS) via RS-485 Modbus or the Nexa® platform through Wi-Fi.
View full details

Additional Details

This Ames Colt Series C400 2 1/2 inch stainless steel reduced pressure zone backflow preventer assembly is designed to prevent the reverse flow of fire protection substances and non-potable water from being pumped or siphoned into the potable water supply due to backsiphonage and/or backpressure. Its extremely compact design makes it lighter than traditional assemblies and suitable for smaller enclosures.

Key Components

  • Type 304 (Schedule 40) stainless steel housing and sleeve
  • Two independent Link Check modules with torsion springs for unmatched ease of serviceability
  • Domestic outside stem and yoke resilient seated gate valves (OSY)
  • Bottom-mounted pressure relief valve
  • Lead Free* bronze body test cocks
  • Groove couplings for easy installation and pipeline alignment

Flood Sensor & Alerts

  • Includes a flood sensor with SentryPlus Alert® technology to detect excessive water discharge from the relief valve.
  • An add-on sensor connection kit (sold separately) is required to activate the flood sensor and relay alerts for potential flooding events via multichannel alerts (call, email, text).
  • Connection kit options can include integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.
  • The OSY model includes an integrated supervisory switch option.

Note: The wetted surface of this product contained by consumable water contains less than 0.25% of lead by weight.

Specifications

  • Body Material: Type 304 (Schedule 40) Stainless Steel
  • Connection Type: Grooved
  • Inlet/Outlet Connection: Grooved
  • Valve Type: Outside Stem and Yoke (OSY) Gate Valves
  • Check Module Type: Torsion Spring Link Check
  • Elastomers: EPDM, Silicone, Buna 'N'
  • Check Discs: Reversible Silicone or EPDM
  • Test Cocks: Lead Free* Bronze Body
  • Pins & Fasteners: 300 Series Stainless Steel
  • Springs: Stainless Steel
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 33°F - 140°F (0.5°C - 60°C)
  • Installation: Horizontal
  • Features: Flood sensor with SentryPlus Alert® technology
  • Nominal Size: 2 1/2 inch
  • Weight (OSY): 90 lbs (41 kg)

Certificates & Approvals

  • Approved by FCCCHR-USC
  • AWWA C511-97
  • cCSAus
  • UL Classified
  • FM Approved
  • NSF Certified to ANSI/NSF 61, Annex G
  • CSA B64.4

FAQs

What is the primary purpose of this backflow preventer?

This backflow preventer is designed to protect potable water systems from contamination by preventing the reverse flow of non-potable water, such as fire protection substances, due to backsiphonage or backpressure.

What materials are used in the construction of this backflow preventer?

The housing and sleeve are made of Type 304 (Schedule 40) stainless steel. Elastomers include EPDM, silicone, and Buna 'N', while check discs are reversible silicone or EPDM. Test cocks have Lead Free* bronze bodies.

Does this backflow preventer include a flood sensor?

Yes, it includes a flood sensor with SentryPlus Alert® technology to detect excessive water discharge from the relief valve. An add-on sensor connection kit is required to activate its alert capabilities.

What is the maximum operating pressure and temperature range for this unit?

The maximum working pressure for this backflow preventer is 175 psi (12.1 bar), and it is designed for a temperature range of 33°F to 140°F (0.5°C to 60°C).

What type of connections does this backflow preventer use?

This assembly features grooved couplings on both the inlet and outlet for easy installation and alignment with existing grooved piping systems.
