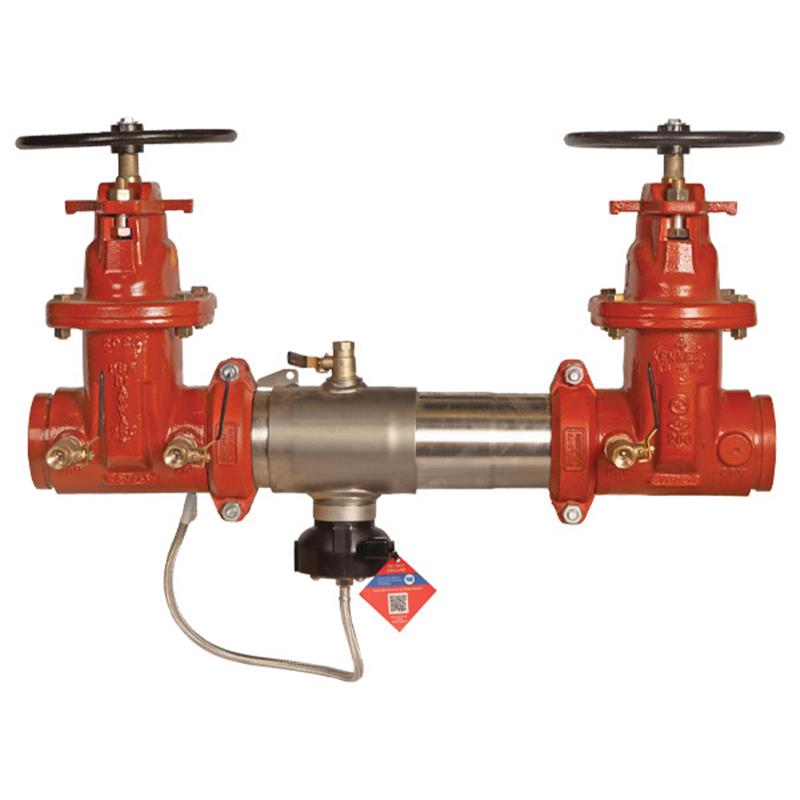

2.5 C400-NRS-GxG-FS

Item Number: F0112116
1 1
$5,572.50
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Product Type: Reduced Pressure Zone (RPZ) Backflow Preventer
  • Weight: 168.0 lb
  • Size: 2 1/2 inch
  • Housing Material: Type 304 (Schedule 40) Stainless Steel
  • Shutoff Valves: Non-Rising Stem (NRS) Grooved Gate Valves
  • Flood Sensor: Integrated with SentryPlus Alert® Technology
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F - 140°F
  • Lead Free* Construction: Wetted surfaces < 0.25% lead

Description

The Colt C400 Series 2 1/2 inch Lead Free Reduced Pressure Zone (RPZ) backflow preventer assembly protects potable water from contamination caused by backsiphonage and backpressure. Featuring a durable Type 304 stainless steel housing and non-rising stem grooved gate valves, it is designed for horizontal installation in continuous pressure piping applications. An integrated flood sensor with SentryPlus Alert® technology detects excessive relief valve discharge, requiring an add-on connection kit for active alerts. This compact and lightweight assembly offers a maximum working pressure of 175 psi and operates between 33°F and 140°F, ensuring reliable performance in critical health hazard cross-connections. Item number F0112116.

Help Me Connect

Connections

  • This 2 1/2 inch RPZ assembly features grooved inlet and grooved outlet connections for straightforward installation with compatible grooved piping systems.
  • The groove couplings facilitate easy installation and allow for integral pipeline adjustment.

Flood Sensor Activation

  • The integrated flood sensor is a passive component and requires an add-on connection kit for activation.
  • Connect a compatible add-on kit (such as BMS, cellular, or the Sensor Control Monitor) to enable flood alerts and integrate with building management systems via RS-485 Modbus or the Nexa® platform through Wi-Fi.
  • Retrofit sensor connection kits are available for existing installations.
View full details

Additional Details

The Colt C400 Series 2 1/2 inch Lead Free Reduced Pressure Zone (RPZ) backflow preventer assembly is designed to protect potable water systems from contamination due to backsiphonage and backpressure.

This assembly is approved for horizontal installation and is ideal for continuous pressure piping applications and health hazard cross-connections.

Key Components

  • Type 304 (Schedule 40) stainless steel housing and sleeve for durability.
  • Two independent Link Check modules with torsion springs for unmatched ease of serviceability and lowest pressure loss.
  • Non-rising stem resilient seated gate valves with grooved inlet and grooved outlet connections.
  • Bottom-mounted differential pressure relief valve.
  • Multiple test cocks for easy maintenance.
  • Drip tight shutoff valves.

Flood Detection & Alerts

  • Includes a flood sensor with SentryPlus Alert® technology to detect continuous discharge from the relief valve.
  • The flood sensor is a passive component and requires an add-on connection kit to activate and communicate alerts.
  • When paired with a compatible add-on connection kit, the sensor can relay alerts via BMS, cellular communication, or integrate with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.

Design & Installation

  • Extremely compact design, approximately 70% lighter than traditional models.
  • Groove couplings for easy installation and integral pipeline adjustment.
  • Configurable for horizontal or N-pattern installation.
  • Contains less than 0.25% of lead by weight on wetted surfaces to comply with Lead Free* installation requirements.

Specifications

  • Product Type: Reduced Pressure Zone Assembly
  • Size: 2 1/2 inch
  • Model: C400NRS-GxG-FS
  • Flood Sensor: Included
  • Inlet Connection Type: Grooved
  • Outlet Connection Type: Grooved
  • Shutoff Valve Type: Non-Rising Stem (NRS) Resilient Seated Gate Valves
  • Temperature Range: 33°F - 140°F (0.5°C - 60°C)
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Lead Content: Wetted surface contains less than 0.25%

Materials

  • Housing & Sleeve: Type 304 (Schedule 40) Stainless Steel
  • Elastomers: EPDM, Silicone, Buna 'N'
  • Link Checks: Noryl®, Stainless Steel
  • Check Discs: Reversible Silicone or EPDM
  • Test Tocks: Lead Free* Bronze Body
  • Pins & Fasteners: 300 Series Stainless Steel
  • Springs: Stainless Steel

Dimensions (Nominal 2 1/2 inch NRS)

  • A (Length): 30 3/4 inch (781 mm)
  • C (Valve Height): 16 3/8 inch (416 mm)
  • D (Bottom to Centerline): 9 3/8 inch (238 mm)
  • G: 29 1/16 inch (738 mm)
  • H: 21 1/2 inch (546 mm)
  • J: 15 1/2 inch (393 mm)
  • M: 8 13/16 inch (223 mm)
  • P (Valve Top to Centerline): 21 1/4 inch (540 mm)
  • Approximate Weight (NRS): 126 lb (57 kg)

Certificates & Approvals

  • Approved by Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • AWWA C511-97
  • ASSE 1013
  • CSA B64.4
  • UL Classified
  • FM Approved
  • NSF Certified to NSF/ANSI 61-G

FAQs

What is the primary purpose of the Colt C400 RPZ backflow preventer?

The primary purpose of this 2 1/2 inch Lead Free Reduced Pressure Zone (RPZ) backflow preventer is to protect potable water systems from contamination due to reverse flow caused by backsiphonage or backpressure.

What type of connections does this backflow preventer use?

This C400 series assembly features grooved inlet and grooved outlet connections, which are designed for easy installation with compatible grooved piping systems.

How does the flood sensor function, and what is needed for it to work?

The integrated flood sensor with SentryPlus Alert® technology detects excessive water discharges from the relief valve. To activate the sensor and enable communication for alerts, an add-on connection kit is required. Without this kit, the sensor remains a passive component.

What are the main materials used in the construction of this assembly?

The housing and sleeve are constructed from durable Type 304 (Schedule 40) stainless steel. Link checks are Noryl® and stainless steel, while elastomers are EPDM, silicone, and Buna 'N'.

Can this backflow preventer be installed vertically?

This backflow preventer is approved for horizontal installation. It can also be configured for N-pattern horizontal or Z-pattern horizontal installations, but not vertical.
