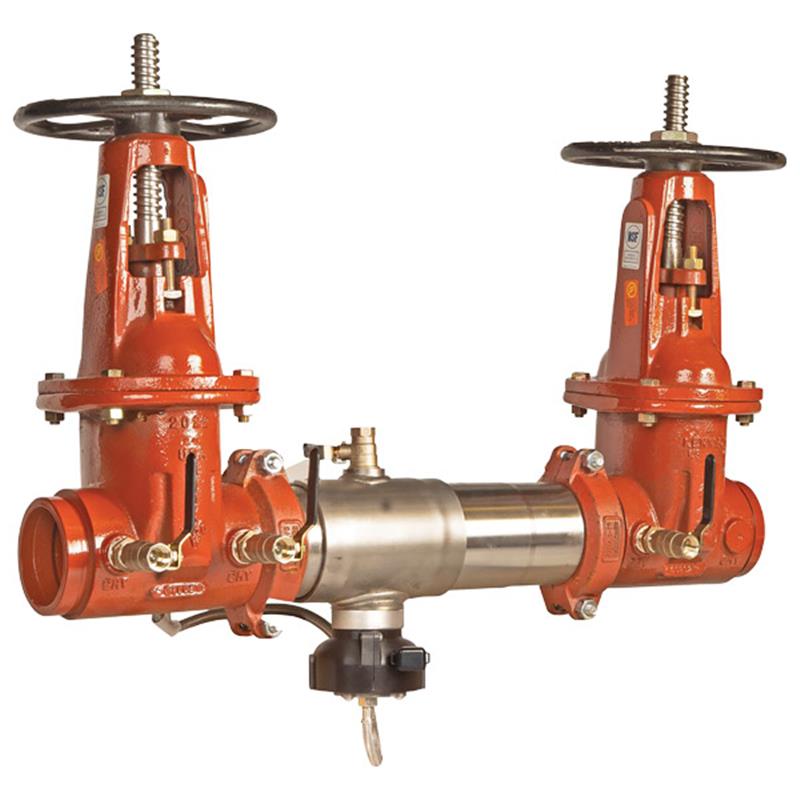

2.5 C400-OSY-GxG-FS

Item Number: F0112110
1 1
$5,627.99
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 2 1/2 inch
  • Weight: 200.0 lb
  • Lead Free* construction (wetted surface less than 0.25% lead)
  • Housing & Sleeve: Type 304 (Schedule 40) Stainless Steel
  • Valve Type: OSY Resilient Seated Gate Valves
  • Connections: Grooved Inlet x Grooved Outlet
  • Integrated Flood Sensor with SentryPlus Alert® Technology
  • Extremely compact design
  • Approved for horizontal installation

Description

The Colt 2 1/2 inch Lead Free Reduced Pressure Zone Backflow Preventer (F0112110) provides critical protection against contamination in potable water systems. Designed for health hazard applications, this assembly features durable Type 304 stainless steel housing, OSY resilient seated gate valves, and grooved inlet and outlet connections. An integrated flood sensor with SentryPlus Alert® technology detects excessive relief valve discharge, relaying alerts when paired with an add-on connection kit. Its compact design and torsion spring check modules ensure ease of serviceability and horizontal installation suitability, complying with national plumbing codes for backflow and backsiphonage prevention.

Help Me Connect

This Colt 2 1/2 inch Reduced Pressure Zone Backflow Preventer features grooved inlet and outlet gate valve connections. It is designed for seamless integration into existing or new piping systems with corresponding 2 1/2 inch grooved pipe connections. The groove couplings facilitate easy installation and precise pipe alignment, ensuring a secure and leak-free fit. Ensure your system's piping is compatible with 2 1/2 inch grooved connections for proper installation.

View full details

Additional Details

This Colt 2 1/2 inch Lead Free Reduced Pressure Zone Backflow Preventer Assembly is designed to prevent the reverse flow of fire protection substances and non-potable water into the potable water supply due to backsiphonage or backpressure.

The assembly is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards.

Construction & Features

  • Features Lead Free* construction, containing less than 0.25% lead by weight in wetted surfaces.
  • Constructed with a Type 304 (Schedule 40) stainless steel housing and sleeve for durability.
  • Includes two independent torsion spring check modules for ease of serviceability.
  • Equipped with OSY (Outside Stem and Yoke) resilient seated gate valves.
  • Designed for grooved inlet and grooved outlet connections.
  • Features a bottom-mounted pressure relief valve and required test cocks.

Flood Detection System

  • Contains a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve.
  • When paired with an add-on connection kit (sold separately), the sensor is activated to relay alerts for potential flooding events via BMS, cellular communication, or integration with BAS via RS‑485 Modbus or the Nexa® platform through Wi-Fi.
  • An add-on connection kit is required to activate the flood sensor. Without the connection kit, the flood sensor is a passive component and will not communicate with any other device.

Installation

  • Approved for horizontal installation as long as the assembly is installed in accordance with the direction of the flow arrow.
  • Designed with groove couplings for easy installation and pipe alignment.
  • Extremely compact design allows for use in small enclosures.

Specifications

  • Product Type: Reduced Pressure Zone Backflow Preventer
  • Nominal Size: 2 1/2 inch
  • Construction: Lead Free*
  • Housing & Sleeve Material: Type 304 (Schedule 40) Stainless Steel
  • Valve Type: OSY (Outside Stem and Yoke) Resilient Seated Gate Valves
  • End Connections: Grooved Inlet x Grooved Outlet
  • Check Modules: Torsion Spring
  • Check Discs: Reversible Silicone or EPDM
  • Elastomers: EPDM, Silicone, Buna 'N'
  • Link Checks Material: Noryl®, Stainless Steel
  • Test Cocks Material: Lead Free* Bronze Body
  • Pins & Fasteners Material: 300 Series Stainless Steel
  • Springs Material: Stainless Steel
  • Flood Sensor: Integrated with SentryPlus Alert® Technology
  • Installation Orientation: Horizontal

Performance Ratings

  • Minimum Temperature: 33°F (0.5°C)
  • Maximum Temperature: 140°F (60°C)
  • Maximum Working Pressure: 175 psi (12.1 bar)

Certificates & Approvals

  • Approved by Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • AWWA C511-97
  • ASSE 1013
  • CSA B64.4
  • UL Classified
  • FM Approved
  • NSF Certified to NSF/ANSI 61-G

FAQs

What is the primary function of the Colt 2 1/2 inch Reduced Pressure Zone Backflow Preventer?

Its primary function is to prevent the reverse flow of fire protection substances and non-potable water into the potable water supply, protecting against contamination due to backsiphonage or backpressure.

What materials are used in the construction of this backflow preventer?

The housing and sleeve are made from Type 304 (Schedule 40) stainless steel. Link checks are Noryl® and stainless steel, while check discs are reversible silicone or EPDM. It features Lead Free* bronze body test cocks and 300 Series stainless steel pins and fasteners.

Does this assembly include a flood detection feature?

Yes, it includes an integrated flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve. An add-on connection kit is required to activate and relay these alerts.

What type of connections does this backflow preventer use?

This backflow preventer features OSY (Outside Stem and Yoke) resilient seated gate valves with grooved inlet and grooved outlet connections, designed for compatibility with 2 1/2 inch grooved piping.

What are the installation requirements for this backflow preventer?

It is approved for horizontal installation. The assembly must be installed in accordance with the direction of the flow arrow, and groove couplings facilitate easy installation and pipe alignment.
