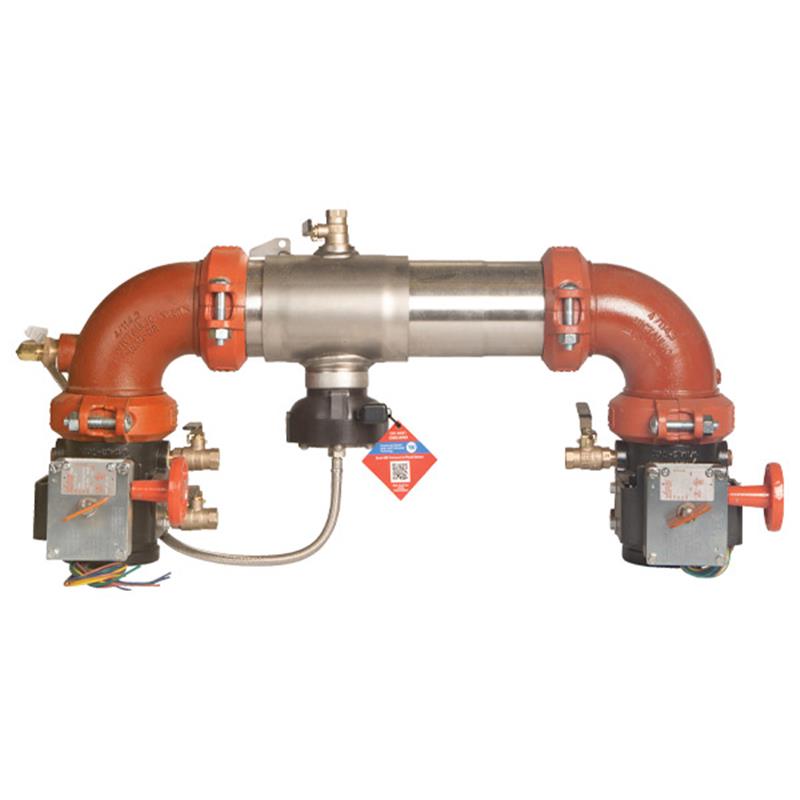

2.5 C400N-BFG-FS

Item Number: F0191416
1 1
$6,866.25
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 2 1/2 inch
  • Weight: 86.2 lb
  • Type: Reduced Pressure Zone Backflow Preventer
  • Housing Material: 304 Stainless Steel
  • Valve Type: Grooved Gear Operated Butterfly Valves with Tamper Switch
  • Flood Detection: Integrated Flood Sensor with SentryPlus Alert® Technology
  • Maximum Working Pressure: 175 PSI
  • Temperature Range: 33°F - 140°F
  • Installation: Horizontal N Pattern

Description

The Colt 2 1/2 inch C400N Reduced Pressure Zone Backflow Preventer Assembly protects potable water supplies from contamination due to backpressure or backsiphonage in fire protection systems. It features a durable 304 stainless steel housing, grooved gear operated butterfly shutoff valves with tamper switches, and an integrated flood sensor with SentryPlus Alert technology for discharge detection. Constructed with Lead Free* materials, this compact unit offers reliable performance for continuous pressure piping applications and is approved for horizontal N-pattern installation. Item number F0191416.

Help Me Connect

Connection Information

  • This assembly features groove end connections for easy installation into piping systems.
  • It is approved for horizontal N pattern installation and must be installed in accordance with the direction of the flow arrow to ensure proper function.
  • The integrated supervisory switch has continuity when the valve is fully open and activates within two turns from open, sending a tamper signal when the valve is closed or the switch is removed.
View full details

Additional Details

This Colt 2 1/2 inch lead free reduced pressure zone backflow preventer assembly is designed to prevent the reverse flow of fire protection substances and water of non-potable quality from being pumped or siphoned into the potable water supply. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards due to backsiphonage and/or backpressure.

Key Components & Design

  • Features two independent Link Check modules and a differential pressure relief valve.
  • Includes two drip tight shutoff valves and required test cocks.
  • Constructed with a 304 (Schedule 40) stainless steel housing and sleeve for durability.
  • Utilizes grooved gear operated butterfly valves with tamper switch for reliable operation.
  • Extremely compact design allows for installation in small enclosures.
  • Torsion spring check modules provide ease of serviceability.
  • Groove couplings enable easy installation and pipe alignment.
  • Approved for horizontal N pattern installation.

Integrated Technology

  • Equipped with a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve.
  • An add-on sensor connection kit can extend flood monitoring capabilities.
  • The optional Sensor Control Monitor enables integration with Building Automation Systems (BAS) via RS-485 Modbus or the Nexa® platform through Wi-Fi.

Specifications

  • Product Type: Reduced Pressure Zone Backflow Preventer
  • Nominal Size: 2 1/2 inch
  • Housing & Sleeve Material: Type 304 (Schedule 40) stainless steel
  • Elastomers: EPDM, silicone, Buna 'N'
  • Link Checks Material: Noryl®, stainless steel
  • Check Discs: Reversible silicone or EPDM
  • Test Cocks Material: Lead Free* bronze body
  • Pins & Fasteners Material: 300 Series stainless steel
  • Springs Material: Stainless steel
  • Configuration: Horizontal N pattern
  • Valve Type: Grooved Gear Operated Butterfly Valves with Tamper Switch
  • Flood Detection: Integrated Flood Sensor
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 33°F - 140°F (0.5°C ~ 60°C)

Certificates & Approvals

  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • AWWA C511-97
  • ASSE 1013
  • CSA B64.4
  • UL Classified
  • FM Approved
  • NSF/ANSI 61-G Certified

FAQs

Q: What is the primary purpose of this backflow preventer?

A: This backflow preventer is designed to prevent the reverse flow of non-potable water or fire protection substances into the potable water supply, protecting against contamination due to backsiphonage and backpressure.

Q: What type of connections does this assembly use?

A: The assembly features groove end connections, designed for easy and efficient installation and alignment with existing piping systems.

Q: Does this backflow preventer include flood detection capabilities?

A: Yes, it is equipped with an integrated flood sensor featuring SentryPlus Alert® technology to detect excessive water discharge from the relief valve, with optional add-on kits for enhanced monitoring.

Q: What materials are used in the construction of the housing?

A: The housing and sleeve are constructed from durable Type 304 (Schedule 40) stainless steel, and it features Lead Free* bronze body test cocks.

Q: What are the maximum operating pressure and temperature?

A: This backflow preventer has a maximum working pressure of 175 psi (12.1 bar) and an operating temperature range of 33°F to 140°F (0.5°C to 60°C).
