2.5 C500N-OSY-C-FS

Item Number: F0191318
1 1
$8,361.00
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Reduced Pressure Detector Assembly
  • Weight: 200.0 lb
  • Size: 2 1/2 inch
  • Body Material: 304 (Schedule 40) Stainless Steel
  • Installation: Horizontal N Pattern
  • Shutoff Valves: OSY Resilient Seated Gate Valves
  • Features: SentryPlus Alert® Flood Sensor
  • Meter: Cubic Feet Meter included
  • Approvals: UL Classified, FM Approved, CSA B64.4

Description

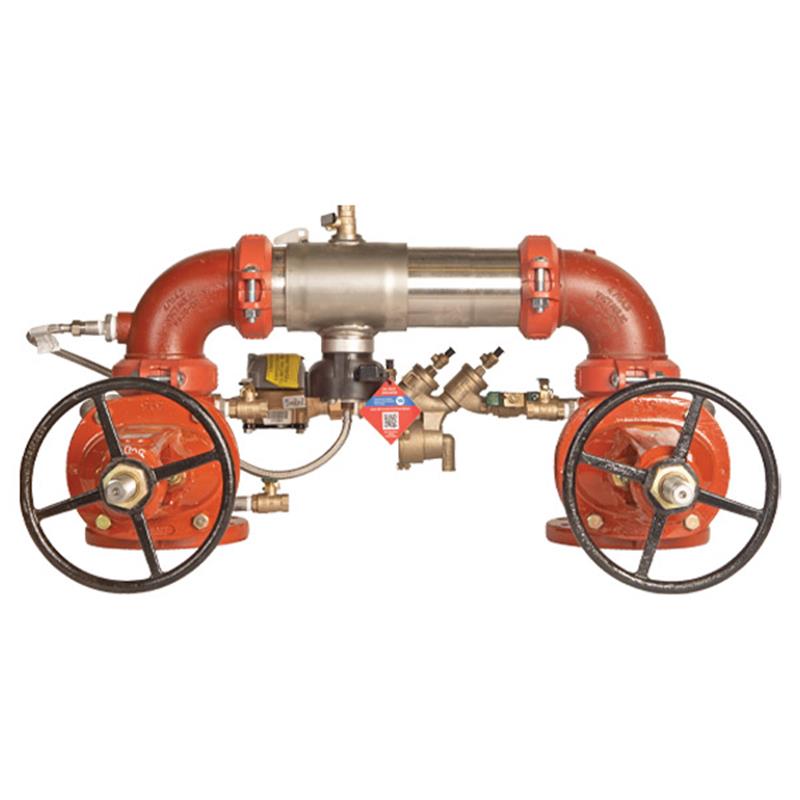

The Colt Series C500 2 1/2 inch Reduced Pressure Detector Assembly is designed for horizontal N pattern installation to prevent backsiphonage and backpressure in non-potable water systems, especially fire protection lines. It features a durable 304 stainless steel body, OSY shutoff valves, and a cubic feet meter for detecting leaks. A key feature is the integrated SentryPlus Alert® flood sensor, which detects excessive relief valve discharge and can send alerts when connected to an add-on kit. This compact and lightweight assembly is UL Classified, FM Approved, and CSA B64.4 compliant. Item number F0191318.

Help Me Connect

Flood Sensor Activation

  • An add-on connection kit is required to activate the flood sensor's alert features. Without this kit, the flood sensor is a passive component and will not communicate with other devices.
  • Connection kit options include BMS, cellular communication, or the Sensor Control Monitor.
  • The Sensor Control Monitor enables integration with Building Automation Systems (BAS) via RS-485 Modbus or the Nexa® platform through Wi-Fi.
  • For existing installations, a retrofit sensor connection kit is also available.

Installation

  • This assembly is approved for horizontal N pattern installation. Groove fittings are provided for integral pipeline adjustment and ease of installation.
View full details

Additional Details

This Colt Series C500 2 1/2 inch Reduced Pressure Detector Assembly with a flood sensor is designed to prevent the reverse flow of non-potable water into the potable water supply due to backsiphonage and backpressure, commonly used in fire protection systems.

It also monitors for unauthorized water use and detects excessive discharge from the relief valve, providing alerts when paired with an add-on connection kit.

Features

  • Backflow Prevention: Protects drinking water supplies from health hazards in non-potable service applications such as irrigation, fire line, or industrial processing.
  • Flood Sensor with SentryPlus Alert: Detects excessive water discharges from the relief valve and can relay signals for potential flooding events when an add-on connection kit is used.
  • Unauthorized Water Use Detection: Furnished with a cubic feet meter to detect underground leaks or unauthorized water use from the fire protection system.
  • Robust Construction: The entire valve body and closure sleeve are manufactured from 304 (Schedule 40) stainless steel, offering durability and corrosion resistance.
  • Efficient Design: Extremely compact, 70% lighter than traditional designs, featuring a patented link check for lowest pressure loss.
  • Ease of Service: Unmatched ease of serviceability with replaceable check disc rubber.
  • Installation: Approved for horizontal N pattern installation, featuring groove fittings for integral pipeline adjustment and easy installation.
  • Shutoff Valves: Includes Outside Stem and Yoke (OSY) resilient seated gate valves.

A WARNING: It is illegal to use this product in a plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing, consult your local water authority, building, and plumbing codes.

Specifications

General

  • Product Type: Reduced Pressure Detector Assembly
  • Series: C500
  • Nominal Size: 2 1/2 inch
  • Installation Pattern: Horizontal N pattern

Materials

  • Housing & Sleeve: 304 (Schedule 40) Stainless Steel
  • Elastomers: EPDM, Silicone, Buna 'N'
  • Check Discs: Noryl®, stainless steel
  • Link Checks: Reversible silicone or EPDM
  • Test Cocks: Lead-free bronze body, nickel plated
  • Fasteners: Stainless Steel
  • Relief Valve: Bottom-mounted cast stainless steel

Features

  • Shutoff Valves: Outside Stem and Yoke (OSY) resilient seated gate valves
  • Meter: Cubic feet per minute meter
  • Flood Sensor: Yes, with SentryPlus Alert® technology
  • Integral Pipeline Adjustment: Yes, with groove fittings

Certificates & Approvals

  • Approved By: Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • Approved By: AWWA C511-97
  • Approved By: UL Classified
  • Approved By: FM Approved
  • Approved By: CSA B64.4

FAQs

What is the primary function of the Colt C500 Reduced Pressure Detector Assembly?

Its primary function is to prevent contaminated non-potable water from flowing back into the potable (drinking) water supply due to backsiphonage or backpressure. It also helps monitor for unauthorized water use.

Does this assembly come with a flood sensor?

Yes, this assembly includes a SentryPlus Alert® flood sensor designed to detect excessive water discharges from the relief valve. An add-on connection kit is required to activate its alert capabilities.

What type of shutoff valves are included with this model?

This model is furnished with Outside Stem and Yoke (OSY) resilient seated gate valves, which provide reliable shutoff and visual indication of valve position.

What material is the main body of the C500 assembly made from?

The entire valve body and closure sleeve are constructed from durable 304 (Schedule 40) stainless steel, offering excellent corrosion resistance and strength.

How does the cubic feet meter function?

The integrated cubic feet meter helps detect small leaks or unauthorized water usage within the fire protection system, providing a valuable monitoring function.
