2.5 LFC500-OSY-C-FS

Item Number: F0124633
1 1
$8,372.00
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Nominal Size: 2.5 inch
  • Weight: 192.0 lb
  • Lead Free* design for potable water protection
  • Housing & Sleeve Material: Type 304 Stainless Steel
  • Valve Type: OSY Resilient Seated Gate Valves
  • SentryPlus Alert® flood sensor included
  • Cubic feet meter detects leaks and unauthorized water use
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F - 110°F

Description

The Colt 2.5 inch Lead Free Reduced Pressure Detector Backflow Preventer Assembly (LFC500-OSY-C-FS) is designed to protect potable water supplies from contamination by preventing reverse flow from fire protection systems and other health hazards. Featuring a compact modular design with a durable Type 304 stainless steel body and OSY resilient seated gate valves, this assembly ensures reliable performance. It includes a SentryPlus Alert® flood sensor to detect relief valve discharge and a cubic feet meter for monitoring leaks and unauthorized water use. With approvals including ASSE, CSA, UL, and FM, it offers robust protection for various applications.

Help Me Connect

Connections

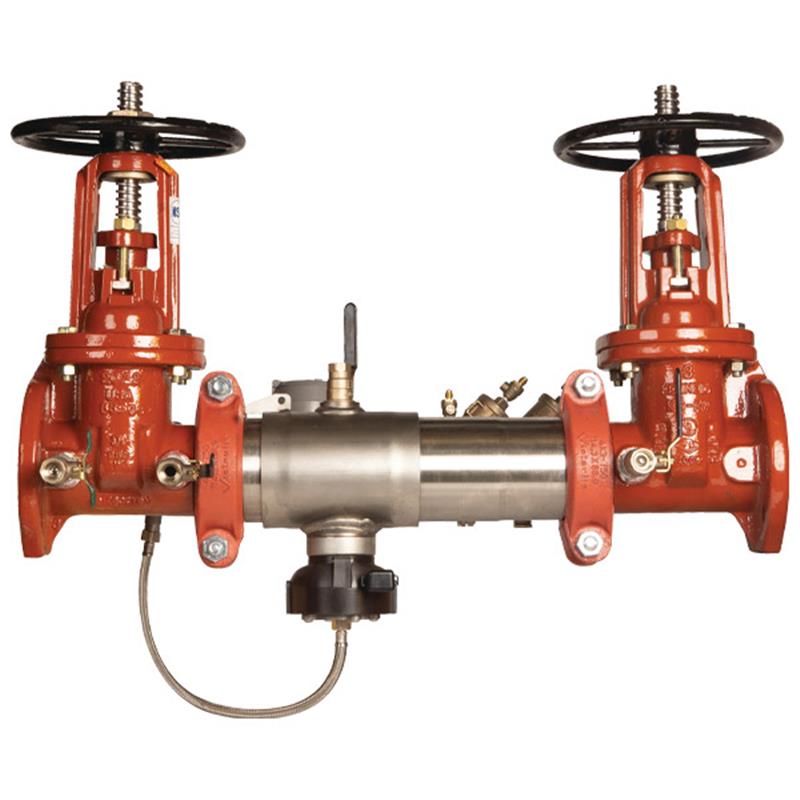

  • This 2.5 inch backflow preventer assembly features OSY (Outside Stem and Yoke) resilient seated gate valves. The main body includes groove end connections, and the OSY shutoff valves can be configured with either flanged or grooved inlet and outlet connections depending on the specific model. The primary image for this product depicts flanged connections.

SentryPlus Alert® Integration

  • The integrated SentryPlus Alert® flood sensor on the relief valve detects continuous or excessive water discharge. An add-on sensor connection kit allows for extended flood monitoring, enabling integration with Building Automation Systems (BAS) via RS-485 Modbus or the Nexa® platform through Wi-Fi connectivity for remote alerts.
View full details

Additional Details

The Colt 2.5 inch Lead Free Reduced Pressure Detector Backflow Preventer Assembly is engineered to prevent the reverse flow of non-potable fire protection substances and water into the potable water supply, protecting against backsiphonage and backpressure. It is ideal for safeguarding cross-connections identified as health hazards, such as those found in fire sprinkler systems and service line entrances.

This compact and modular assembly features a durable Type 304 (Schedule 40) stainless steel body and closure sleeve. It includes two independent Link Check modules, a differential pressure relief valve, and OSY (Outside Stem and Yoke) resilient seated gate valves. This model is equipped with a SentryPlus Alert® flood sensor to detect continuous or excessive discharge from the relief valve, and a cubic feet meter to monitor for underground leaks or unauthorized water usage.

Features

  • Compact modular design for installation in tight spaces
  • Constructed from Type 304 (Schedule 40) stainless steel housing and sleeve
  • Equipped with OSY (Outside Stem and Yoke) resilient seated gate valves for reliable shutoff
  • Patented Link Check design for lower pressure loss and ease of serviceability
  • Integrated SentryPlus Alert® flood sensor detects excessive relief valve discharge
  • Includes an add-on sensor connection kit for extending flood monitoring to compatible alert systems
  • Furnished with a cubic feet meter to detect underground leaks and unauthorized water use
  • Bottom-mounted cast stainless steel relief valve
  • Reversible elastomer discs for drip-tight closure against reverse flow

Specifications

  • Product Type: Reduced Pressure Detector Backflow Preventer Assembly
  • Nominal Size: 2.5 inch
  • Housing & Sleeve Material: Type 304 (Schedule 40) Stainless Steel
  • Elastomer Material: EPDM, Silicone, Buna-N
  • Link Check Material: Noryl®, Stainless Steel
  • Check Disc Material: Reversible Silicone or EPDM
  • Test Cock Material: Lead Free* Bronze Body
  • Pin & Fastener Material: 300 Series Stainless Steel
  • Spring Material: Stainless Steel
  • Valve Type: OSY (Outside Stem and Yoke) Resilient Seated Gate Valves
  • Meter Type: Cubic Feet Meter
  • Flood Sensor: SentryPlus Alert® Technology
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 33°F - 110°F (0.5°C – 43°C)

Certificates & Approvals

  • Approved by: Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • AWWA C511-97
  • ASSE 1047
  • CSA B64.4
  • UL Classified (BFG & OSY Only)
  • FM Approved (BFG & OSY Only)
  • NSF Certified to NSF/ANSI 372

FAQs

What is the primary purpose of this backflow preventer assembly?

Its primary purpose is to prevent the reverse flow of non-potable water and fire protection substances into the potable water supply, protecting against contamination from backsiphonage and backpressure.

What material is the main housing and sleeve made from?

The main housing and sleeve are constructed from durable Type 304 (Schedule 40) stainless steel, ensuring corrosion resistance and longevity.

Does this assembly include a flood detection feature?

Yes, it features an integrated SentryPlus Alert® flood sensor on the relief valve to detect continuous or excessive water discharge, with options for add-on connection kits for remote monitoring.

What type of shutoff valves are used in this model?

This assembly utilizes OSY (Outside Stem and Yoke) resilient seated gate valves, which are UL Classified and FM Approved for reliable shutoff.

How does this device help detect water leaks or unauthorized use?

It is furnished with a cubic feet meter in the bypass assembly that registers water flow, allowing for the detection of underground leaks and unauthorized water consumption.
