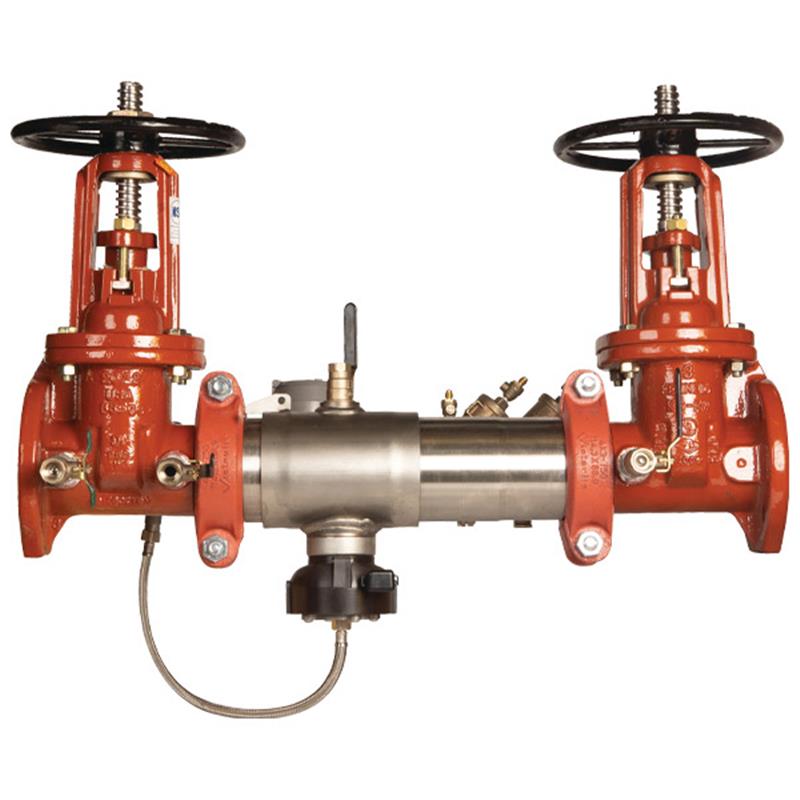

2.5 LFC500-OSY-G-FS

Item Number: F0124639
1 1
$8,372.00
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 2 1/2 inch
  • Weight: 192.0 lb
  • Lead Free* construction
  • Body Material: Type 304 Stainless Steel
  • Shutoff Valves: OSY Resilient Seated Gate Valves
  • Connections: Grooved inlet and outlet
  • Includes: Flood sensor with SentryPlus Alert® technology
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F - 110°F

Description

The Colt 2 1/2 inch Lead Free Reduced Pressure Detector Backflow Preventer Assembly with OSY shutoff valves and grooved connections is designed to protect potable water systems from contamination due to backflow and backsiphonage. Constructed with a durable Type 304 stainless steel body, it features an integrated flood sensor with SentryPlus Alert technology to detect water discharges. Ideal for fire sprinkler systems and other health hazard cross-connections, this compact and lightweight assembly ensures reliable performance with a metered bypass for leak detection and easy serviceability. Item number F0124639.

Help Me Connect

Connections

  • The assembly features grooved inlet and outlet connections for integral pipeline adjustment and easy installation with compatible grooved fittings.

Flood Sensor Activation

To activate the integrated flood sensor with SentryPlus Alert® technology, an add-on sensor connection kit is required. Without this kit, the flood sensor operates as a passive component and will not communicate with other devices. Connection kit options include BMS, cellular communication, and the Sensor Control Monitor for integration with Building Automation Systems (BAS) via RS-485 Modbus or the Nexa® platform through Wi-Fi.

View full details

Additional Details

The Colt 2 1/2 inch Lead Free Reduced Pressure Detector Backflow Preventer Assembly provides robust protection to potable water systems by preventing the reverse flow of fire protection substances and non-potable water due to backsiphonage and backpressure. It is ideal for safeguarding cross-connections identified as health hazards, such as those found in fire sprinkler systems and at service line entrances.

This compact modular design features a Type 304 (Schedule 40) stainless steel body with a quick access sleeve and includes a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve.

NOTICE: An add-on connection kit is required to activate the flood sensor. Without the connection kit, the flood sensor is a passive component and will not communicate with any other device.

Key Features

  • Extremely compact design that is 70% lighter than traditional designs
  • Housing and sleeve constructed from Type 304 (Schedule 40) stainless steel pipe with groove end connections
  • Features OSY (Outside Stem and Yoke) resilient seated gate valves for shutoff
  • Patented link check for lowest pressure loss and unmatched ease of serviceability
  • Reversible elastomer discs and replaceable check disc rubber
  • Bottom-mounted cast stainless steel relief valve
  • Metered bypass with a gallon per minute meter to detect leakage or theft of water from the fire sprinkler system
  • Integrated flood sensor on the relief valve for flood detection, activated by an add-on sensor connection kit
  • Lead Free* construction to comply with Lead Free* installation requirements

NOTICE: This information is not intended to replace full product installation and safety information or the experience of a trained product installer. Thoroughly read all installation instructions and product safety information before installation. Inquire with governing authorities for local installation requirements.

NOTICE: The flood sensor does not replace the need to comply with all required instructions, codes, and regulations related to installation, operation, and maintenance of this product, including the need to provide proper drainage in the event of a discharge. Watts® is not responsible for the failure of alerts due to connectivity issues, power outages, or improper installation.

Specifications

  • Product Type: Reduced Pressure Detector Backflow Preventer Assembly
  • Size: 2 1/2 inch
  • Body Material: Type 304 (Schedule 40) Stainless Steel
  • Housing & Sleeve Material: Type 304 (Schedule 40) Stainless Steel
  • Elastomers: EPDM, Silicone, Buna-N
  • Link Checks Material: Noryl®, Stainless Steel
  • Check Discs Material: Reversible Silicone or EPDM
  • Test Cocks Material: Lead Free* Bronze Body
  • Pins & Fasteners Material: 300 Series Stainless Steel
  • Springs Material: Stainless Steel
  • Shutoff Valves: OSY (Outside Stem and Yoke) Resilient Seated Gate Valves
  • Connections: Grooved inlet and outlet
  • Bypass Meter: Gallon per minute meter
  • Flood Detection: Integrated flood sensor with SentryPlus Alert® technology
  • Temperature Range: 33°F - 110°F (0.5°C – 43°C)
  • Maximum Working Pressure: 175 psi (12.1 bar)

Certificates & Approvals

  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • AWWA C511-97
  • ASSE 1047
  • CSA B64.4
  • UL Classified
  • FM Approved
  • NSF Certified to NSF/ANSI 372

FAQs

What is the primary function of the Colt LFC500 Reduced Pressure Detector Assembly?

Its primary function is to protect potable water systems from contamination by preventing the reverse flow of non-potable water and fire protection substances caused by backsiphonage or backpressure. This is crucial for health-hazard cross-connections like fire sprinkler systems.

What type of shutoff valves are included with this model?

This model, LFC500-OSY-G-FS, comes with UL Classified and FM Approved outside stem and yoke (OSY) resilient seated gate valves. These valves provide reliable shutoff capability for the assembly.

How does the flood sensor function in this backflow preventer?

The backflow preventer includes an integrated flood sensor with SentryPlus Alert® technology on the relief valve. When activated with an add-on connection kit, it detects excessive water discharges and can relay signals for potential flooding alerts.

What materials are used for the main body and internal components?

The housing and sleeve are constructed from durable Type 304 (Schedule 40) stainless steel. Internal components such as elastomers (EPDM, silicone, Buna-N) and check discs (reversible silicone or EPDM) ensure reliable operation and longevity.

What are the connection types for this 2 1/2 inch assembly?

This assembly features grooved inlet and outlet connections. These connections are designed for integral pipeline adjustment and facilitate easy installation with compatible grooved fittings.
