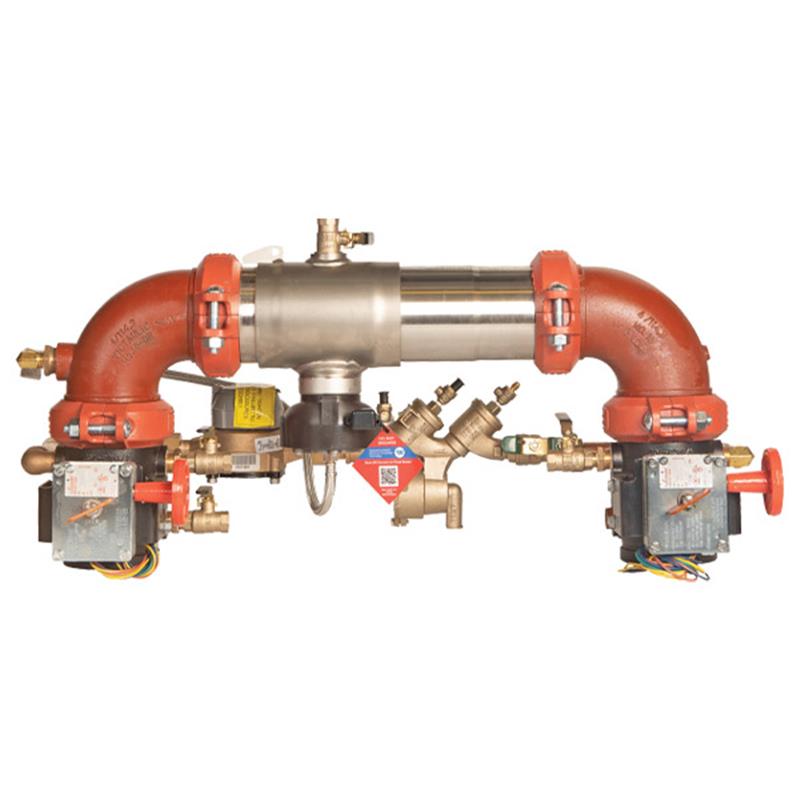

This Colt Series LFC500 2 1/2 inch Lead Free Reduced Pressure Detector Backflow Preventer Assembly provides critical protection to the potable water system from contamination. It is specifically designed to prevent the reverse flow of non-potable fire protection substances and water from being pumped or siphoned into the drinking water supply due to backsiphonage or backpressure. Additionally, it monitors unauthorized water use from the fire protection system.

Key Features

• Lead Free* construction, with wetted surfaces containing less than 0.25% lead by weight, to comply with lead-free installation requirements.
• Integrated flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve.
• An add-on sensor connection kit is required to activate the flood sensor's alert capabilities for potential flooding events. Connection kit options include BMS, cellular communication, and the Sensor Control Monitor for integration with BAS via RS‑485 Modbus or the Nexa® platform through Wi-Fi.
• Features a metered bypass (gallon per minute meter) to detect underground leaks and unauthorized water use.
• Extremely compact design, approximately 70% lighter than traditional designs.
• Approved for horizontal N pattern installation.
• Equipped with grooved gear operated butterfly valves with tamper switches.

Construction & Design

• Housing and closure sleeve are constructed from Type 304 (Schedule 40) stainless steel.
• Features two independent Link Check modules with patented link checks for lowest pressure loss.
• Reversible elastomer discs and replaceable check disc rubber for ease of serviceability.
• Corrosive resistant bottom-mounted cast stainless steel relief valve.
• Includes Lead Free bronze body nickel plated test cocks.
