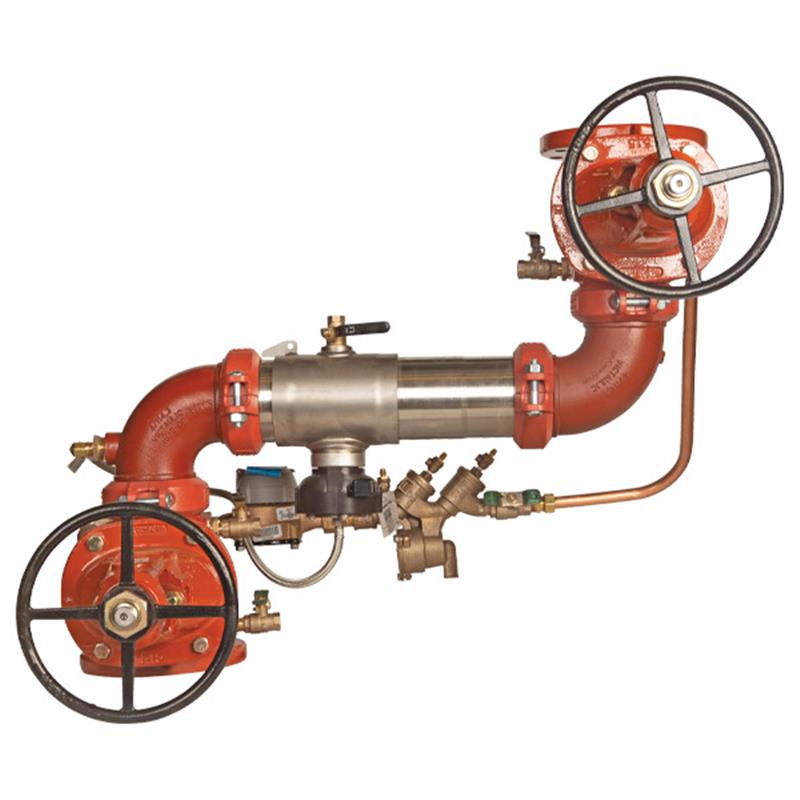

This Colt™ 2 1/2 inch Lead Free Reduced Pressure Detector Backflow Preventer Assembly is designed to protect potable water systems from contamination by preventing the reverse flow of fire protection substances and non-potable water due to backsiphonage and backpressure.

The LFC500 series also monitors for unauthorized water use from the fire protection system, providing a comprehensive safety and security solution.

Key Features

• Extremely compact design, making it 70% lighter than traditional designs.
• Approved for horizontal Z pattern installation.
• Includes outside stem and yoke (OSY) resilient seated gate valves.
• Equipped with a metered bypass (CFM meter) to detect underground leaks and unauthorized water use from the fire sprinkler system.
• Features a flood sensor with SentryPlus Alert® technology on the relief valve to detect excessive water discharges and potential flooding events.
• Integrated supervisory switch is an option on each gate valve of the OSY model.

Construction

• Housing and sleeve are manufactured from durable Type 304 (Schedule 40) stainless steel.
• Features groove fittings for integral pipeline adjustment.
• Contains two independent Link Check modules with reversible elastomer discs for drip-tight closure against reverse flow.
• Test cocks are bronze body, nickel plated.
• Elastomers include EPDM, silicone, and Buna-N.
• Utilizes a corrosive resistant bottom-mounted pressure relief valve.

NOTICE: An add-on connection kit is required to activate the flood sensor. Without the connection kit, the flood sensor is a passive component and will not communicate with any other device. Use of the flood sensor does not replace the need to comply with all required instructions, codes, and regulations related to installation, operation, and maintenance of this product, including the need to provide proper drainage in the event of a discharge.
