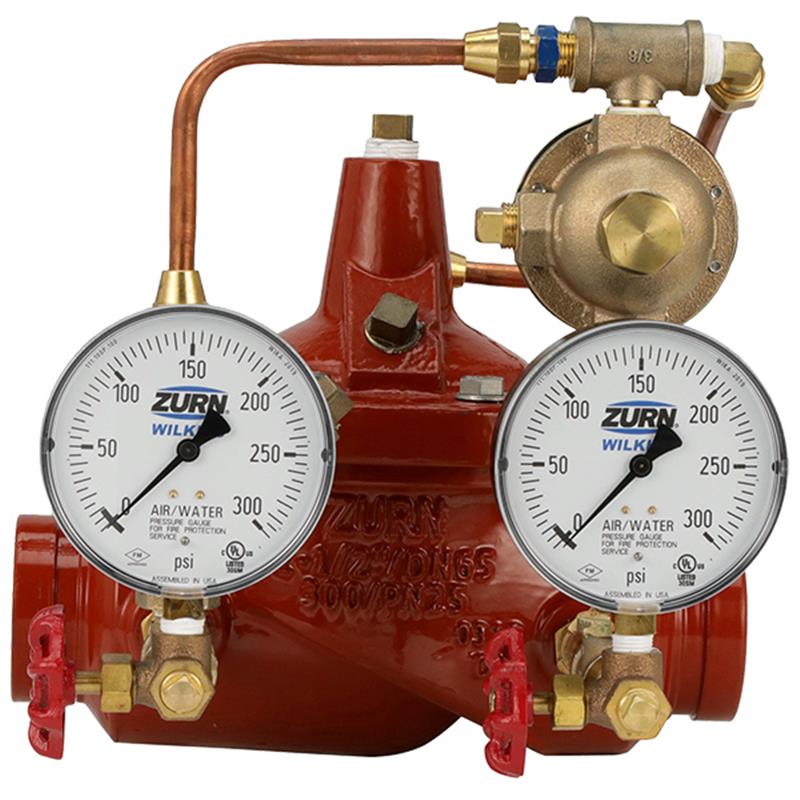

2.5 ZW209 PRESS REDUC FIRE VLV GLB BODY IPS GRVD SS SEAT 50-165PSI CPR TUBE

Item Number: 212-ZW209FPG
1 1
$7,020.58
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Wilkins
  • Pilot Operated Pressure Reducing Valve
  • Nominal Pipe Size: 2.5 inch
  • End Connections: Grooved
  • Inlet Rating: 300 psi
  • Pilot Spring Range: 50-165 psi
  • Body Material: Ductile Iron ASTM A536
  • Coating: Red Epoxy (internal & external)
  • Standards: NSF/ANSI/CAN 61, ANSI/AWWA C530

Description

The Zurn Wilkins Model ZW209 is a 2.5-inch pilot-operated pressure reducing valve with grooved end connections, designed for fire suppression systems and other applications requiring stable downstream pressure. It features a ductile iron body with internal and external red epoxy coating for corrosion resistance. The pilot assembly ensures constant pressure regulation regardless of flow rate, automatically sealing shut to prevent damage. Standard components include isolation valves, pressure gauges, and a wye strainer for simplified maintenance. It meets ANSI/AWWA C530 and NSF/ANSI/CAN 61 lead-free standards. This valve maintains outlet pressure between 50-165 psi.

Help Me Connect

Connections

  • The 2.5 inch Zurn Wilkins Model ZW209 valve features grooved end connections, designed for quick and secure installation into compatible grooved piping systems.
  • This valve is specifically utilized in fire suppression systems where precise control of downstream pressure is critical.
View full details

Additional Details

The 2-1/2 inch Zurn Wilkins Model ZW209 Pilot Operated Pressure Reducing Valve with grooved end connections is designed for fire suppression systems and other applications requiring the reduction of high inlet pressures to safe and stable outlet pressures.

Features

  • The pilot assembly reacts to changes in downstream pressure allowing the main valve to modulate between closed and open, ensuring a constant downstream set pressure.
  • The valve automatically seals shut after reaching the pilot setting, preventing possible downstream damage.
  • Pressure regulation is not dependent upon flow rate, resulting in minimal pressure loss through the valve.
  • Internal and external ferrous surfaces are coated with a high-quality, red fusion epoxy coating for superior corrosion protection.
  • Standard components include isolation valves, inlet and outlet pressure gauges, and a "Wye" Type Strainer for quick and easy maintenance or repair.
  • The pilot control is field adjustable, maintaining outlet pressure between 50 psi and 165 psi.
  • Includes copper tubing and brass fittings for the pilot assembly.

Construction Materials

  • Main Valve Body: Ductile Iron ASTM A536
  • Main Valve Bonnet: Ductile Iron ASTM A536
  • Disc Guide: Stainless Steel
  • Seat: Stainless Steel
  • Disc: Buna-N Rubber
  • Diaphragm: Nylon Reinforced Buna-N
  • Stem: Stainless Steel
  • Spring: Stainless Steel

The closing speed control (optional) on this valve should always be open at least three (3) turns off its seat.

Specifications

  • Nominal Pipe Size: 2.5 inch
  • End Connection Type: Grooved
  • Body Style: Globe
  • Inlet Rating: 300 psi
  • Minimum Inlet Pressure: 10 PSI
  • Pilot Spring Range: 50-165 psi
  • Temperature Rating: Water 33°F to 140°F
  • Coating: Red Epoxy (internal and external)

Materials

  • Main Valve Body: Ductile Iron ASTM A536
  • Main Valve Bonnet: Ductile Iron ASTM A536
  • Disc Guide: Stainless Steel
  • Seat: Stainless Steel
  • Disc: Buna-N Rubber
  • Diaphragm: Nylon Reinforced Buna-N
  • Stem: Stainless Steel
  • Spring: Stainless Steel

Certificates & Approvals

  • ANSI/AWWA C530
  • NSF/ANSI/CAN 61 (0.25% MAX. WEIGHTED AVERAGE LEAD CONTENT)

FAQs

What is the primary use of the Zurn Wilkins Model ZW209 valve?

It is designed for fire suppression systems and other applications that require reducing high inlet pressures to a safe and stable outlet pressure.

What type of connections does this valve use?

This specific Model ZW209 valve features 2.5-inch grooved end connections for straightforward installation into compatible piping systems.

What is the adjustable pressure range for the pilot control?

The pilot control for this valve is field adjustable to maintain an outlet pressure between 50 and 165 psi.

Is the Zurn Wilkins ZW209 valve corrosion-resistant?

Yes, the valve's main body, both internally and externally, is coated with a high-quality red fusion epoxy for excellent corrosion protection.

What materials are used for the main components of the valve?

The main valve body and bonnet are constructed from Ductile Iron ASTM A536. The disc guide, seat, stem, and spring are Stainless Steel, while the disc is Buna-N Rubber and the diaphragm is Nylon Reinforced Buna-N.
