2 765-QT-FZ PVB

Item Number: T765HBV
1 1
$1,294.51
Limited Stock (2)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Febco
  • Nominal Size: 2 inch
  • Body Material: Bronze
  • Maximum Working Pressure: 150 psi
  • Temperature Range: 32°F to 140°F
  • Integrated freeze sensor for temperature monitoring
  • Internal parts serviceable in-line from the top
  • Plastic bonnet protects valve body from freeze damage
  • Approved to ASSE 1020

Description

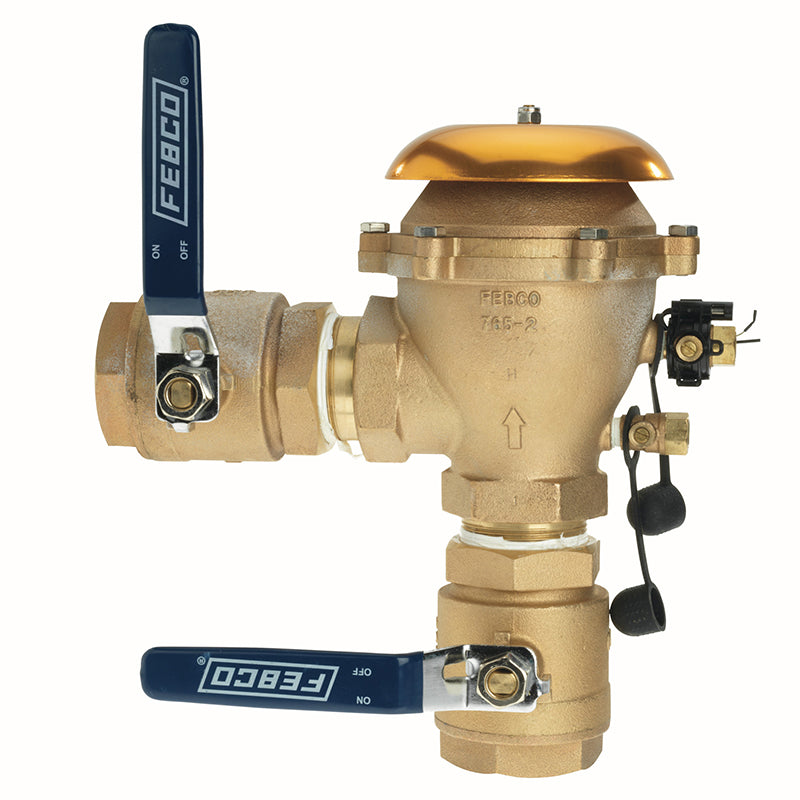

This 2 inch FEBCO Series 765 Pressure Vacuum Breaker Backflow Preventer is engineered with a durable bronze body to protect against health hazard and non-health hazard backsiphonage. Ideal for industrial plants, cooling towers, laundries, swimming pools, and irrigation systems, it features a spring-loaded check valve, air relief valve, and resilient seated quarter-turn shutoffs. An integrated freeze sensor utilizes SentryPlus Alert® technology for temperature monitoring, providing alerts with an optional connection kit. Rated for 150 psi and temperatures from 32°F to 140°F, it offers reliable performance and in-line serviceability.

Help Me Connect

Installation Requirements

  • Pressure Vacuum Breaker assemblies require installation at least 12 inches above the highest piping and outlet downstream of the assembly to prevent backpressure.
  • Install in locations that are easily accessible for maintenance, periodic testing, and where discharge is not objectionable.
  • If subject to freezing temperatures, follow freeze protection procedures outlined in "Service Instruction Freeze Protection Model 765."
  • For 2 inch sizes, the discharge pressure shall be maintained above 5.0 psi to ensure seating of the spring-loaded air inlet poppet.

Freeze Sensor Connectivity

The integrated freeze sensor requires an add-on connection kit (sold separately) to activate its full monitoring capabilities. Without this kit, the sensor is a passive component and will not communicate alerts.

View full details

Additional Details

This 2 inch FEBCO Series 765 Pressure Vacuum Breaker Backflow Preventer is designed to protect against health hazard and non-health hazard backsiphonage conditions. It is ideal for use in industrial plants, cooling towers, laboratories, laundries, swimming pools, and lawn sprinkler systems.

Connections

  • Features NPT ANSI/ASME B1.20.1 end connections.
  • Includes two resilient seated quarter-turn shutoffs for easy isolation.

Features

  • Constructed with an all bronze body for durability.
  • Incorporates a spring-loaded check valve and an air relief valve with opening port.
  • All internal parts are serviceable in line from the top of the unit.
  • An engineered plastic bonnet protects valve bodies from freeze damage.
  • Designed for minimum head loss.
  • Includes a freeze sensor for use with SentryPlus Alert® technology to monitor temperature and alert facility personnel when freeze conditions approach.
  • The freeze alerts feature is available with an add-on connection kit (sold separately) for Wi-Fi networks, building management systems (BMS), and irrigation management systems (IMS).

WARNING It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing standard material product, consult your local water authority, building and plumbing codes.

WARNING Freeze sensor solely provides alerts about a possible freeze event and cannot prevent a freeze event from occurring. User action is required to prevent freeze conditions from causing product and/or property damage.

Specifications

  • Nominal Size: 2 inch
  • Valve Type: Pressure Vacuum Breaker Backflow Preventer
  • Body Material: Bronze
  • End Connections: NPT ANSI/ASME B1.20.1
  • Maximum Working Pressure: 150 psi (10.3 bar)
  • Hydrostatic Test Pressure: 300 psi (20.7 bar)
  • Temperature Range: 32°F to 140°F (0°C to 60°C)
  • Elastomers: Nitrile
  • Shutoffs: Resilient Seated Quarter Turn Ball Valves

Certificates & Approvals

  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California
  • ASSE 1020
  • IAPMO UPC
  • B64.1.2

FAQs

What is the primary use of this backflow preventer?

It is designed to protect against health hazard and non-health hazard backsiphonage in systems like industrial plants, cooling towers, laboratories, laundries, swimming pools, and lawn sprinkler systems.

Does this product come with shutoff valves?

Yes, this assembly includes two resilient seated quarter-turn shutoff valves for easy isolation during maintenance.

What is the maximum operating pressure and temperature?

The maximum working pressure for this 2 inch backflow preventer is 150 psi, and it can operate in temperatures ranging from 32°F to 140°F (0°C to 60°C).

How does the freeze sensor work?

The integrated freeze sensor monitors temperature and, with an optional add-on connection kit (sold separately), can alert facility personnel via Wi-Fi, BMS, or IMS if temperatures approach freezing.

Is this product suitable for potable water applications?

No, a warning states it is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States.
