Brand - Wilkins
Couldn't load pickup availability
Nominal Size: 2 inch

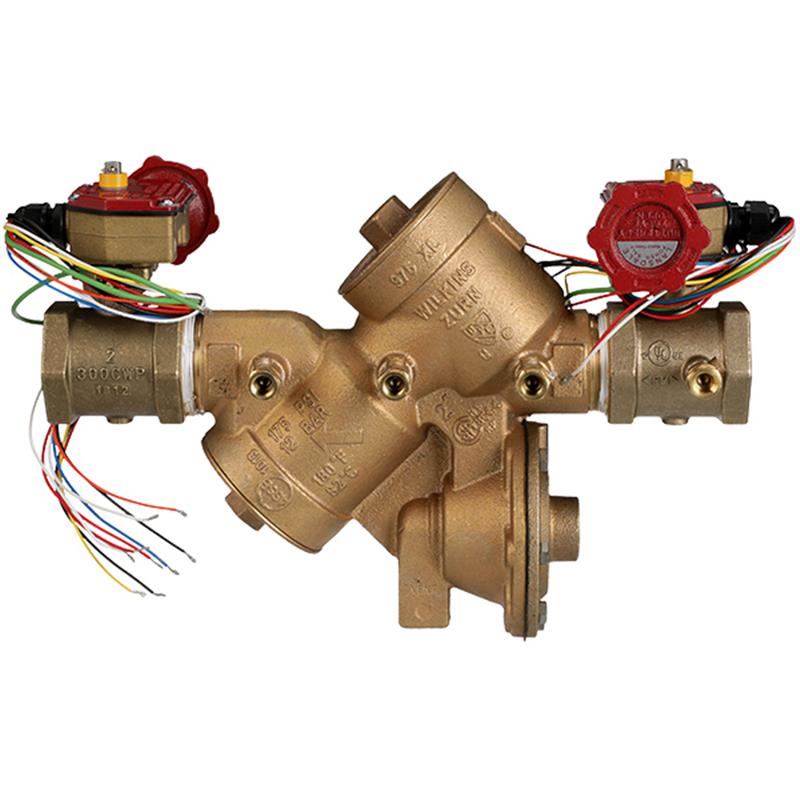

Reduced Pressure Principle Backflow Assembly
Includes Supervisory Switches
Body Material: Cast Bronze
Internal Materials: 300 Series Stainless Steel
Maximum Working Pressure: 175 psi
Maximum Working Temperature: 180°F
Wye Pattern Design for compact installation
Description
The 2" 975XLBF Reduced Pressure Principle Backflow Assembly with supervisory switches is designed for high health hazard, non-potable installations. It effectively protects against backsiphonage and backpressure, preventing contaminated water from entering the potable supply. Featuring a wye pattern design and butterfly shutoff valves, it offers easy installation in compact spaces. Constructed with a corrosion-resistant cast bronze body and 300 series stainless steel internals, it can handle a maximum working pressure of 175 psi and a maximum temperature of 180°F. This reliable backflow preventer is favored for irrigation and industrial non-potable applications.
Help Me Connect
Connection Information
The 2" 975XLBF backflow assembly features NPT (National Pipe Taper) threaded connections, suitable for direct installation into 2-inch piping systems. The wye pattern design, combined with its short lay length, makes it easier to install in confined or compact spaces within non-potable water systems.
The 2" 975XLBF Reduced Pressure Principle Backflow Assembly with supervisory switches is designed for high health hazard, non-potable installations, protecting against both backsiphonage and backpressure of contaminated water into the potable water supply.
Key Features
Reduced Pressure Principle: Provides reliable protection against backsiphonage and backpressure.
Supervisory Switches: Integrated for monitoring the status of the shutoff valves.
Wye Pattern Design: Offers a short lay length, easing installation in compact spaces.
Butterfly Shutoff Valves: Assembled for convenient system control.
Corrosion-Resistant Construction: Features a cast bronze body and 300 series stainless steel internals for durability.
What is the primary application for the 2" 975XLBF backflow assembly?
This backflow assembly is primarily used in high health hazard, non-potable water installations to protect against contamination of the potable water supply from both backsiphonage and backpressure.
What type of shutoff valves are included with this model?
The 2" 975XLBF assembly comes with integrated butterfly shutoff valves for isolation and control within the system.
What materials are used in the construction of this backflow preventer?
The backflow assembly features a durable, corrosion-resistant cast bronze body and 300 series stainless steel internal components for longevity and reliable performance.
What are the maximum operating pressure and temperature ratings for this unit?
This backflow assembly is rated for a maximum working water pressure of 175 psi and a maximum working water temperature of 180°F.
What is the benefit of the wye pattern design?
The wye pattern design provides a short lay length, which simplifies installation in compact or confined spaces, making it ideal for various site conditions.
