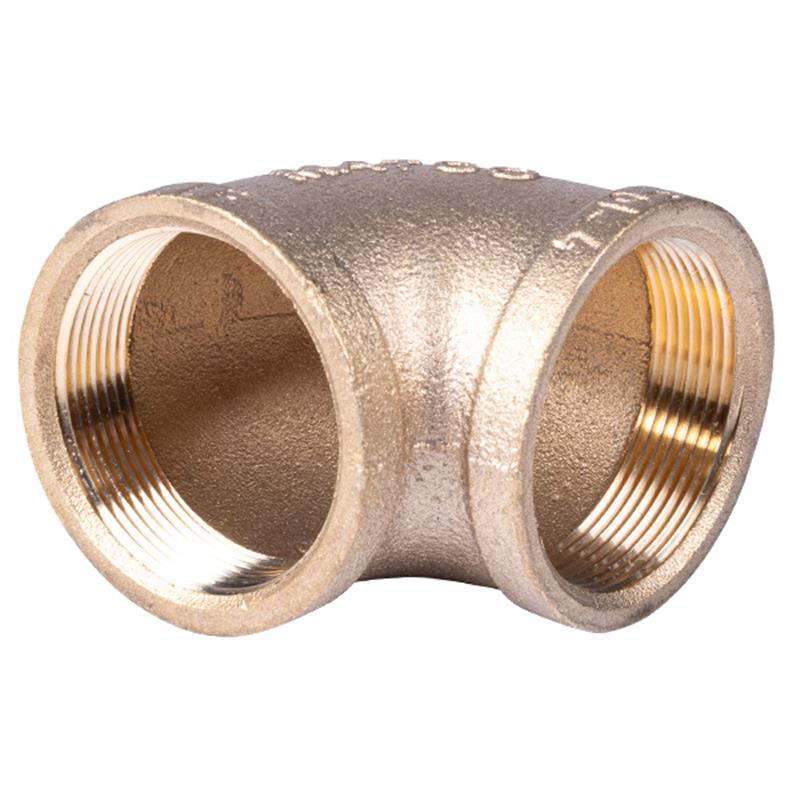

2" Lead Free 90 Degree Brass Elbow
Item Number: 15391
1
/
of
1
Regular price
$50.67
In Stock
(10)
Estimated transit time: 2 to 5 Business Days
Eligible for Express Shipping
Brand - Matco-Norca
Couldn't load pickup availability
- Product Type: 90 Degree Elbow
- Weight: 2.02 lb
- Material: Lead Free Brass
- Nominal Size: 2 inch
- Class: 125 lbs.
- Thread Standard: ASME B1.20.1 (NPT)
- Dimension Standard: ASME B16.15, B16.18
- NSF 61 certified for potable water
- NSF 372 certified for lead content
Description
Description
The 2 inch Lead Free 90 Degree Brass Elbow is a reliable fitting for changing flow direction in plumbing systems. Constructed from lead-free brass (ASTM B584, Alloy C89833), it meets Class 125 lbs. specifications and features threads compliant with ASME B1.20.1. This elbow is certified to NSF 61 and NSF 372, ensuring suitability for potable water applications. Its robust design adheres to ASME B16.15 and B16.18 dimension standards, providing a secure and compliant connection for various pipe installations. Item number 15391.

Collapsible content
Additional Details
The 2 inch Lead Free 90 Degree Brass Elbow is a durable pipe fitting designed to change the direction of piping by 90 degrees in lead-free applications.
This fitting is suitable for use in potable water systems and general industrial applications requiring a robust, lead-free connection.
Construction & Compliance
- Manufactured from lead-free brass (ASTM B584, Alloy C89833) for safe use in drinking water systems.
- Designed to Class 125 lbs. specifications for reliable performance.
- Dimensions comply with ASME B16.15 and ASME B16.18 standards.
- Threads are manufactured according to ASME B1.20.1 for secure connections.
Certifications
- NSF 61 certified for drinking water system components.
- NSF 372 certified for lead content compliance.
Specifications
- Product Type: 90 Degree Elbow
- Material: Lead Free Brass (ASTM B584, Alloy C89833)
- Nominal Size: 2 inch
- Class: 125 lbs.
- Thread Standard: ASME B1.20.1
- Dimension Standard: ASME B16.15, B16.18
- Dimension "A": 2.12 inches
Certificates & Approvals
- NSF 61
- NSF 372
FAQs
What material is this 90-degree elbow made from?
This 90-degree elbow is manufactured from lead-free brass, specifically ASTM B584, Alloy C89833. This ensures it is safe for use in potable water applications.
What are the primary certifications for this brass elbow?
This brass elbow is certified to NSF 61, which relates to drinking water system components, and NSF 372, which pertains to lead content compliance.
What is the thread standard for this fitting?
The threads on this 2 inch elbow conform to the ASME B1.20.1 standard, which typically indicates NPT (National Pipe Taper) threads for secure pipe connections.
What does "Class 125 lbs." signify for this fitting?
"Class 125 lbs." refers to the pressure class or service rating of the fitting. It indicates its suitability for general service applications within specific temperature and pressure limits.
What size pipes is this elbow compatible with?
This fitting is a 2 inch nominal size elbow, designed for use with 2 inch pipes that have corresponding NPT threads.
