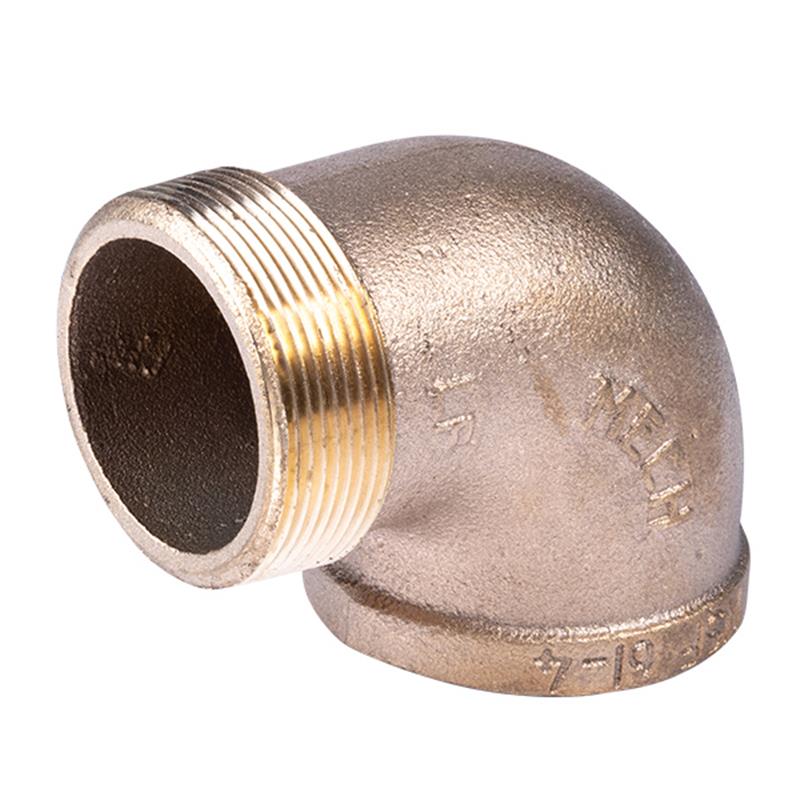

2" Lead Free 90 Degree Brass Street Elbow

Item Number: 15524
Skip to product information
1 of 1
Regular price $74.01
In Stock (10)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Matco-Norca

  • Material: Lead Free Brass (ASTM B584, Alloy C89833)
  • Weight: 2.07 lb
  • Fitting Type: 90 Degree Street Elbow
  • Nominal Pipe Size: 2 inch
  • Class Rating: 125 lbs.
  • Thread Standard: ASME B1.20.1
  • Approved for Potable Water: NSF 61, NSF 372
  • Dimension A: 2.12 inches
  • Dimension B: 2.88 inches

Description

This 2 inch Lead Free 90 Degree Brass Street Elbow provides a reliable connection for changing flow direction in plumbing systems. Constructed from durable ASTM B584 C89833 lead-free brass, it is suitable for potable water applications, meeting NSF 61 and NSF 372 approvals. Rated for 125 lbs. service, this fitting features ASME B1.20.1 compliant NPT threads, ensuring compatibility with standard pipes and fittings. Its robust design adheres to ASME B16.15 and B16.18 dimensions, making it an ideal choice for residential, commercial, and industrial plumbing installations. Item number 15524.

Help Me Connect

Connections

  • This 2 inch 90 Degree Brass Street Elbow features one male NPT thread and one female NPT thread. The male NPT end threads into a female NPT fitting or pipe, and the female NPT end accepts a male NPT fitting or pipe.
  • Ensure that connecting components also have 2 inch National Pipe Taper (NPT) threads for a proper and leak-free seal.
View full details

Collapsible content

Additional Details

This is a 2 inch Lead Free 90 Degree Brass Street Elbow designed for reliable pipe connection in various plumbing and industrial applications. It features one male National Pipe Taper (NPT) thread and one female NPT thread, allowing for a tight, leak-free connection and a 90-degree change in direction.

Construction & Quality

  • Manufactured from lead-free brass (ASTM B584, Alloy C89833) to ensure compliance with safe drinking water standards.
  • Rated for Class 125 lbs. service, providing robust performance.
  • Designed to ASME B16.15 and B16.18 dimensions, ensuring compatibility and interchangeability with other standard fittings.
  • ASME B1.20.1 compliant threads provide a secure and standard NPT connection.

Certifications

  • Approved by NSF 61 and NSF 372 for potable water applications.

Specifications

  • Body Material: Lead Free Brass (ASTM B584, Alloy C89833)
  • Fitting Type: Street Elbow, 90 Degree
  • Nominal Pipe Size: 2 inch
  • Class Rating: 125 lbs.
  • Thread Standard: ASME B1.20.1
  • Dimension A: 2.12 inches
  • Dimension B: 2.88 inches

Certificates & Approvals

  • NSF 61
  • NSF 372

FAQs

What is the material of this street elbow?

This street elbow is made from Lead Free Brass, specifically ASTM B584, Alloy C89833, ensuring it is safe for various applications, including potable water.

What does "Class 125 lbs." signify for this fitting?

The "Class 125 lbs." rating indicates the pressure class or strength rating of the fitting, signifying its ability to withstand certain pressure and temperature conditions in a piping system.

Is this fitting approved for use with drinking water?

Yes, this 2 inch Lead Free 90 Degree Brass Street Elbow holds NSF 61 and NSF 372 approvals, making it suitable and certified for use in potable water applications.

What type of threads does this elbow have?

This street elbow features threads compliant with ASME B1.20.1, which specifies National Pipe Taper (NPT) threads, commonly used for sealing pipes and fittings.

What are the dimensions "A" and "B" for the 2 inch street elbow?

For the 2 inch street elbow, Dimension A is 2.12 inches and Dimension B is 2.88 inches, as per the specification sheet.
