2 LF650A

Item Number: 0122980
1 1
$413.25
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Lead Free Construction
  • Weight: 21.3 lb
  • Body Material: Cast Copper Silicon Alloy
  • Screen Material: 304 Stainless Steel
  • Screen Mesh: 20 Mesh
  • Maximum WOG Pressure: 400 psi
  • Tapped Retainer Cap with Closure Plug
  • Female NPT Inlet and Outlet
  • Protects equipment from foreign material

Description

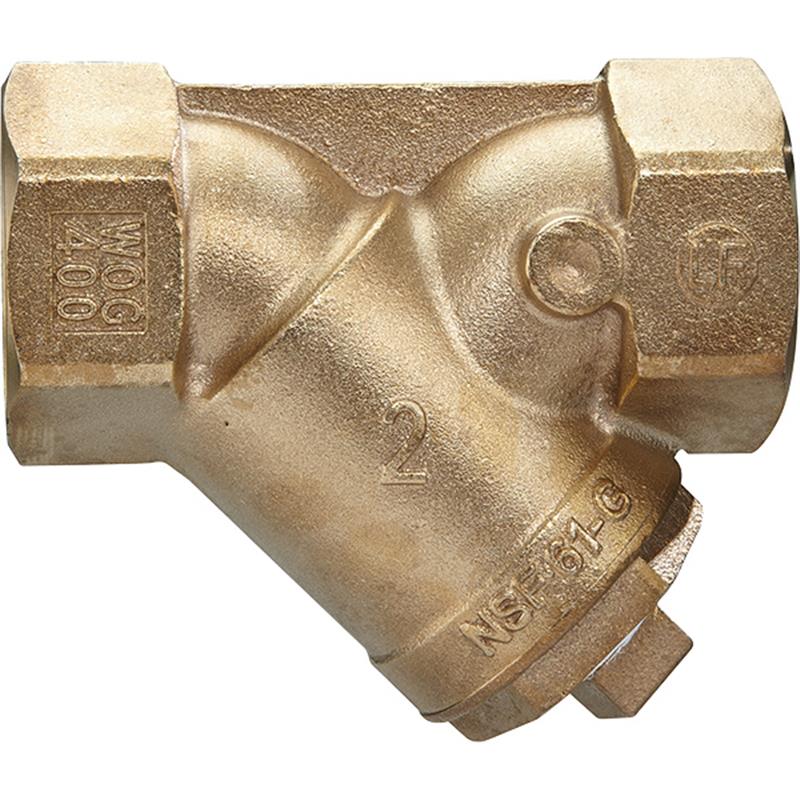

The FEBCO Series LF650A is a 2 inch lead free Y-strainer designed to protect valuable equipment in water piping systems from foreign material. It features a durable cast copper silicon alloy body and a 20 mesh 304 stainless steel screen. With a maximum working pressure of 400 psi at 210°F, it ensures reliable performance. The strainer includes a tapped retainer cap with closure plug for easy maintenance and connects via NPT threaded ends, complying with lead-free installation requirements. Item number 0122980.

Help Me Connect

This 2 inch Y-strainer is designed for straightforward installation into water piping systems. It features NPT threaded end connections for both the inlet and outlet. This means it will connect directly to components with corresponding 2 inch male NPT threads.

  • The nominal pipe diameter for this product is 2 inches (50mm).
  • Ensure all connections are properly sealed to prevent leaks, following standard plumbing practices for NPT threads.
View full details

Additional Details

This 2 inch lead free cast copper silicon alloy Y pattern strainer is designed to be installed in water piping systems to protect expensive equipment, such as backflow preventers, from damage or failure caused by foreign material in the pipeline.

Features

  • Features Lead Free* construction to comply with Lead Free* installation requirements.
  • Includes a tapped retainer cap with a closure plug for easy maintenance.
  • Equipped with a 304 stainless steel screen for effective filtration.
  • Recessed screen seats ensure accurate screen alignment.

*The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight.

Specifications

  • Body Material: Cast copper silicon alloy
  • Cap/Cover Material: Cast copper silicon alloy
  • Screen Material: 304 Stainless Steel
  • Screen Mesh: 20 Mesh

Pressure - Temperature

  • Maximum Working Pressure (WOG): 400 psi (27.6 bar) @ 210°F (99°C)
  • Maximum Working Pressure (WSP): 125 psi (8.6 bar) @ 353°F (178°C)

Connections

  • End Connections: NPT threaded
  • Nominal Pipe Diameter: 2 inches (50mm)

Certificates & Approvals

  • Lead Free Compliant (<0.25% lead by weight on wetted surfaces)

FAQs

What is the primary function of the FEBCO Series LF650A Y-strainer?

The primary function of this Y-strainer is to protect expensive equipment, such as backflow preventers, in water piping systems from damage or failure caused by foreign material within the pipeline.

What materials are used in the construction of this strainer?

The body and cap/cover of the strainer are made from cast copper silicon alloy. It features a 20 mesh, 304 stainless steel screen for effective filtration.

What does 'Lead Free' mean for this product?

Lead Free construction means that the wetted surface of this product, which comes into contact with consumable water, contains less than 0.25% of lead by weight. This complies with Lead Free installation requirements.

What are the maximum pressure and temperature ratings for this strainer?

The maximum working pressure for water, oil, or gas (WOG) is 400 psi (27.6 bar) at 210°F (99°C). For steam (WSP), the maximum working pressure is 125 psi (8.6 bar) at 353°F (178°C).

How does this Y-strainer connect to a piping system?

This 2 inch Y-strainer is designed with NPT threaded end connections, allowing for direct integration into water piping systems using standard NPT male threads.
