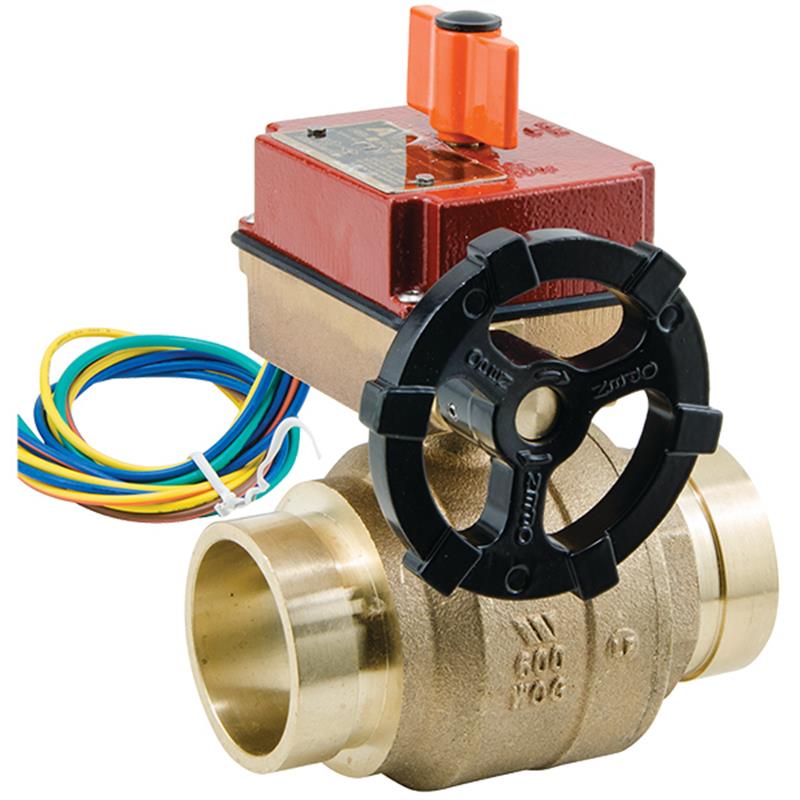

2 LFAFBV-FP-G

Item Number: 88005716
1 1
$980.99
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 2 inch
  • Weight: 25.4 lb
  • End Connections: Grooved
  • Operation: Gear Operated, Slow Close
  • Lead Free Construction: Yes
  • Maximum UL/FM Rated Working Pressure: 400 psi
  • Integrated Supervisory Switches: Yes
  • Approved For: Indoor and Outdoor Use
  • Certifications: UL, FM, NSF/ANSI 372, NFPA

Description

The 2 inch Ames LFAFBV-FP-G Lead Free Gear Operated Ball Valve with Grooved Ends and Supervisory Switches is engineered for fire protection systems. This full port, slow close valve is UL/FM rated for 400 psi, designed to prevent water hammer and ensure system integrity. Its lead-free copper-silicon alloy body and chrome-plated brass ball offer durability. Integrated supervisory switches can be wired Normally Open or Normally Closed, simplifying electrical monitoring. Approved for both indoor and outdoor use, it connects efficiently to Schedule 40 grooved pipe. Item number 88005716.

Help Me Connect

Connections

  • This valve features 2 inch grooved ends, designed for quick and secure installation with compatible grooved piping systems.
  • It is approved for use with Schedule 40 pipe in fire protection systems.
  • The integrated supervisory switch box has a reversible wiring harness, allowing it to be configured as either Normally Open or Normally Closed for flexible integration with fire alarm and monitoring systems.
View full details

Additional Details

This 2 inch full port gear operated ball valve is designed for use in fire protection systems, offering reliable flow control with integrated supervisory features. It features a lead-free, 2-piece construction with grooved ends for easy installation.

The valve's slow open and slow close operation helps eliminate water hammer, making it ideal for maintaining system integrity. Equipped with an integrated supervisory switch box, it allows for electrical wiring in either a Normally Open or Normally Closed configuration, simplifying installation and monitoring.

Features

  • 2 inch, full port design ensures maximum flow with minimal pressure drop.
  • Slow open and slow close operation prevents water hammer in fire protection systems.
  • Can be wired as either Normally Open or Normally Closed for versatile monitoring.
  • Reversible supervisory switch box simplifies electrical wiring access.
  • Gear operated quarter-turn operation for precise control.
  • Two standard internal tamper switches provide enhanced security.
  • Conforms to NFPA 13 Section 6.7.1 for fire protection system requirements.
  • Grooved end connections for secure and straightforward pipe attachment.
  • Clockwise-to-close handle with an ergonomic design for comfortable operation.
  • UL/FM rated for 400 psi (27.6 bar) service in fire protection systems.
  • Approved for indoor and outdoor use.

Specifications

General

  • Product Type: Ball Valve
  • Design: 2-Piece, Full Port, Slow Close
  • Size: 2 inch
  • Operation: Gear Operated, Quarter-Turn
  • Valve Body Material: Lead Free Copper-Silicon Alloy
  • Ball Material: Chrome Plated Brass
  • Seat Material: Virgin PTFE
  • Stem Material: Brass
  • Stem Packing: Virgin PTFE
  • Stem O-Ring Material: EPDM
  • Box/Cover Material: Bronze ASTM B584 Alloy 844
  • Yoke Material: Lead-FREE Copper Silicon Alloy
  • Screw Material: Brass
  • Traveler Nut Material: Brass
  • End Connections: Grooved

Pressure & Temperature

  • Maximum UL/FM Rated Working Pressure: 400 psi (27.6 bar)
  • Maximum Work Pressure (WOG): 600 psi (41.4 bar)
  • Hydrostatic Test Pressure: 900 psi (62.0 bar)
  • Temperature Range: 33°F - 180°F (0.5°C - 82°C)

Electrical (Integrated Tamper Switches)

  • Switch Type: Integrated Tamper Switches
  • Wiring Configuration: Normally Open or Normally Closed
  • Reversible Supervisory Switch Box: Yes
  • Switches Included: 2 Standard Internal Tamper Switches

Certificates & Approvals

  • UL Listed
  • FM Approved
  • NSF Certified to NSF/ANSI 372
  • NFPA Compliant: 11, 13, 14, 15, 16, 20, 22, and 24
  • Conforms to NFPA 13 Section 6.7.1
  • Conforms to AWWA C606

FAQs

What is the primary application of the Ames LFAFBV-FP-G ball valve?

This ball valve is primarily designed for use in fire protection systems, offering reliable flow control and supervisory capabilities.

What type of end connections does this 2 inch ball valve have?

This specific model features 2 inch grooved ends, which are suitable for secure and efficient installation with compatible grooved piping.

What is the maximum working pressure rating for this valve?

The valve is UL/FM rated for a maximum working pressure of 400 psi (27.6 bar) in fire protection service, with a general Maximum Work Pressure (WOG) of 600 psi.

Does this ball valve include supervisory switches?

Yes, it includes two integrated internal tamper supervisory switches with a reversible wiring harness, allowing it to be wired as either Normally Open or Normally Closed for system monitoring.

Is the Ames LFAFBV-FP-G valve suitable for outdoor installation?

Yes, this valve is approved for both indoor and outdoor use, making it versatile for various fire protection system installations.
