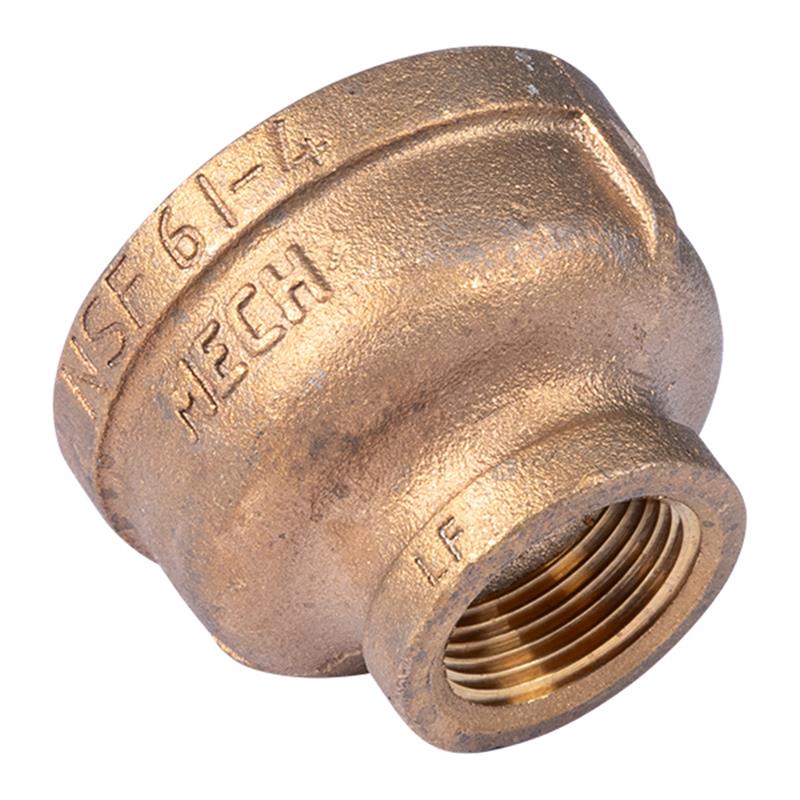

2" x 1" Lead Free Reducing Brass Coupling

Item Number: 15439
Skip to product information
1 of 1
Regular price $56.07
In Stock (10)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Matco-Norca

  • Fitting Type: Reducing Coupling
  • Weight: 1.13 lb
  • Nominal Pipe Size: 2" x 1"
  • Material: Lead Free Brass
  • Class: 125 lbs.
  • Thread Standard: ASME B1.20.1 NPT
  • Approved: NSF 61, NSF 372
  • Overall Length: 2.03 inches
  • Alloy: C89833

Description

This 2 inch x 1 inch lead-free reducing brass coupling is engineered to connect pipes of different diameters safely and efficiently. Constructed from ASTM B584, Alloy C89833 lead-free brass, it meets Class 125 lbs. pressure requirements and is approved by NSF 61 and NSF 372 for potable water applications. Featuring ASME B1.20.1 NPT threads, this durable fitting ensures a reliable transition from a 2-inch pipe to a 1-inch pipe in plumbing and industrial systems. Its robust design adheres to ASME B16.15 and B16.18 dimension standards.

Help Me Connect

Pipe Connections

This lead-free reducing brass coupling features female National Pipe Taper (NPT) threads on both ends, allowing it to connect a 2-inch male NPT pipe or fitting to a 1-inch male NPT pipe or fitting. The tapered threads create a secure, leak-tight seal when properly installed with pipe sealant or PTFE tape.

View full details

Collapsible content

Additional Details

This is a 2 inch x 1 inch lead-free reducing brass coupling designed to connect two pipes of different diameters, reducing from a larger 2-inch pipe to a smaller 1-inch pipe.

Construction & Compliance

  • Manufactured from lead-free brass (ASTM B584, Alloy C89833) for safe potable water applications.
  • Designed to Class 125 lbs. specifications.
  • Approved for use under NSF 61 and NSF 372 standards.

Connections

  • Features internal pipe threads conforming to ASME B1.20.1 for reliable connections.

Specifications

  • Fitting Type: Reducing Coupling
  • Nominal Pipe Size: 2 inch (Female) x 1 inch (Female)
  • Material: Lead Free Brass (ASTM B584, Alloy C89833)
  • Class: 125 lbs.
  • Dimensions Standard: ASME B16.15, B16.18
  • Thread Standard: ASME B1.20.1
  • Overall Length (A): 2.03 inches

Certificates & Approvals

  • NSF 61
  • NSF 372

FAQs

What is the primary use of this reducing coupling?

This reducing coupling is designed to connect a larger 2-inch pipe or fitting to a smaller 1-inch pipe or fitting, allowing for changes in pipe diameter within a system.

Is this coupling safe for drinking water applications?

Yes, this coupling is made from lead-free brass (ASTM B584, Alloy C89833) and is approved by NSF 61 and NSF 372, making it suitable for potable water systems.

What type of threads does this coupling have?

The coupling features internal female threads that conform to the ASME B1.20.1 standard, commonly known as National Pipe Taper (NPT) threads.

What is the pressure class of this fitting?

This lead-free brass reducing coupling is rated for Class 125 lbs., indicating its intended pressure capacity in piping systems.

What are the dimensions of this 2" x 1" reducing coupling?

This coupling has an overall length (dimension A) of 2.03 inches and conforms to ASME B16.15 and B16.18 dimension standards.
