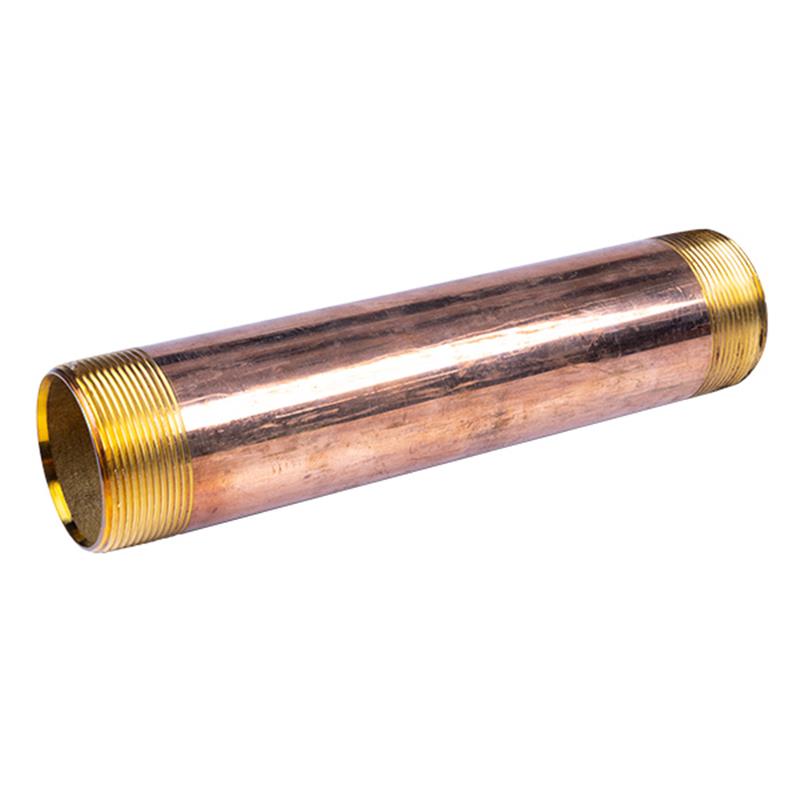

2" x 10" Lead Free Brass Nipple

Item Number: 6041
Skip to product information
1 of 1
Regular price $72.36
In Stock (10)
Estimated transit time: 2 to 3 Business Days Eligible for Express Shipping

Brand - Matco-Norca

  • Size: 2 inch x 10 inch
  • Weight: 3.42 lb
  • Material: Lead Free Brass
  • Schedule: 40
  • Thread Standard: ASME B1.20.1
  • Certified to NSF/ANSI61 and NSF/ANSI372
  • CRN approved
  • Conforms to ASTM B43 and ASTM B687
  • Minimum Wall Thickness: 0.147 inches

Description

The 2 inch x 10 inch Lead Free Brass Nipple is a durable Schedule 40 pipe fitting suitable for a wide range of plumbing and industrial uses. Constructed from lead-free brass conforming to ASTM B43, it is certified to NSF/ANSI61 and NSF/ANSI372, making it safe for potable water applications. Its dimensions meet ASTM B687, and threads comply with ASME B1.20.1 for secure connections. This nipple offers reliable performance for new installations or replacements in systems requiring high-quality, certified components. Item number 6041.

Help Me Connect

Connecting Your Brass Nipple

  • This nipple features NPT (National Pipe Taper) threads that conform to ASME B1.20.1.
  • It is designed to connect to 2 inch female NPT threaded fittings or pipes.
  • Ensure proper sealing techniques, such as PTFE thread sealant tape or pipe compound, for a leak-tight connection.
View full details

Collapsible content

Additional Details

This is a 2 inch by 10 inch Schedule 40 brass nipple, designed for connecting pipes or fittings in various plumbing and industrial applications. It features lead-free brass construction, ensuring suitability for potable water systems.
Construction & Standards
  • Manufactured from lead-free brass, conforming to ASTM B43 standards.
  • Dimensions and ends adhere to ASTM B687 specifications.
  • Threads conform to ASME B1.20.1 for reliable connections.
  • Meets NSF/ANSI61 and NSF/ANSI372 standards for safe drinking water applications.
  • CRN certified for compliance with Canadian regulatory requirements.

Specifications

  • Size: 2 inch x 10 inch
  • Material: Lead Free Brass
  • Schedule: 40
  • Thread Standard: ASME B1.20.1
  • Nominal Outer Diameter (B): 2.375 inches
  • Thread Length (L1): 1.058 inches
  • Minimum Wall Thickness (Tmin.): 0.147 inches

Certificates & Approvals

  • ASTM B43
  • ASTM B687
  • ASME B1.20.1
  • NSF/ANSI61
  • NSF/ANSI372
  • CRN

FAQs

What are the dimensions of this brass nipple?

This brass nipple measures 2 inches in nominal diameter and 10 inches in overall length. It features a nominal outer diameter (B) of 2.375 inches and a thread length (L1) of 1.058 inches on each end.

Is this brass nipple suitable for drinking water systems?

Yes, this 2" x 10" brass nipple is made from lead-free brass and is certified to NSF/ANSI61 and NSF/ANSI372 standards, making it safe for use in potable water applications.

What is the pipe schedule of this nipple?

This brass nipple is a Schedule 40 fitting, indicating its wall thickness and suitability for general service applications with moderate to high pressure ratings.

What threading standard does this nipple use?

The threads on this brass nipple conform to ASME B1.20.1, ensuring compatibility with other fittings and pipes that adhere to this national pipe thread standard.

What certifications does this product hold?

This 2" x 10" Lead Free Brass Nipple is certified to ASTM B43, ASTM B687, ASME B1.20.1, NSF/ANSI61, NSF/ANSI372, and is CRN approved, confirming its quality and compliance with industry standards.
