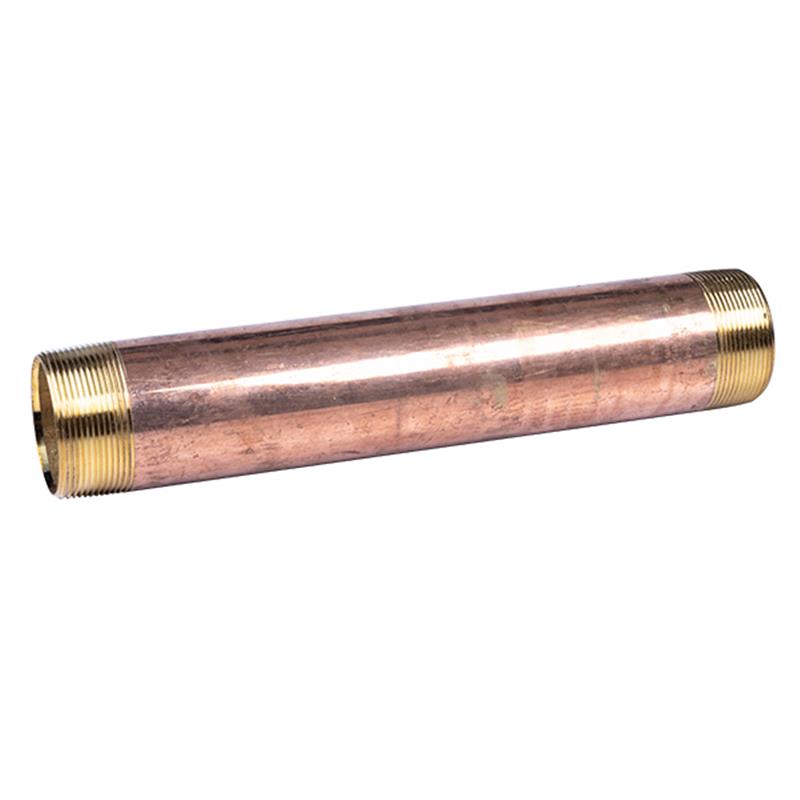

2" x 12" Lead Free Brass Nipple

Item Number: 7349
Skip to product information
1 of 1
Regular price $86.35
In Stock (10)
Estimated transit time: 2 to 3 Business Days Eligible for Express Shipping

Brand - Matco-Norca

  • Size: 2 inch x 12 inch
  • Weight: 4.11 lb
  • Material: Lead Free Brass
  • Schedule: 40
  • Thread Standard: ASME B1.20.1
  • Certifications: NSF/ANSI61, NSF/ANSI372, CRN
  • Construction Standard: ASTM B43, ASTM B687

Description

The 2 inch x 12 inch Lead Free Brass Schedule 40 Nipple (7349) is a durable pipe fitting crafted for reliable connections in plumbing systems. Constructed from lead-free brass that conforms to ASTM B43, it ensures safety for potable water applications. Its threads meet ASME B1.20.1 standards, providing secure and leak-resistant installations. This nipple is also certified to NSF/ANSI61, NSF/ANSI372, and CRN, making it suitable for a wide range of residential, commercial, and industrial uses where quality and compliance are essential.

Help Me Connect

Connecting Your Brass Nipple

  • This nipple features male NPT (National Pipe Taper) threads on both ends, conforming to ASME B1.20.1.
  • It is designed to connect to female NPT threaded fittings or piping of the same 2 inch nominal pipe size.
  • Ensure proper thread sealant is used for a secure, leak-free connection.
View full details

Collapsible content

Additional Details

This 2 inch x 12 inch lead free brass nipple is designed for connecting piping in various applications, offering both durability and compliance with strict standards.
Construction & Standards
  • Manufactured from lead free brass, conforming to ASTM B43.
  • Features a Schedule 40 wall thickness for robust performance.
  • Dimensions and ends conform to ASTM B687.
  • Threads conform to ASME B1.20.1, ensuring reliable connections.
Certifications
  • Meets NSF/ANSI61 and NSF/ANSI372 standards for potable water safety.
  • CRN compliant for various industrial applications.

Specifications

  • Nominal Pipe Size: 2 inch
  • Length: 12 inch
  • Body Material: Lead Free Brass
  • Schedule: 40
  • Thread Standard: ASME B1.20.1
  • Material Standard: ASTM B43
  • Dimensions/Ends Standard: ASTM B687
  • Minimum Wall Thickness (Tmin.): 0.147 inch

Certificates & Approvals

  • NSF/ANSI61
  • NSF/ANSI372
  • CRN

FAQs

What material is this nipple made from?

This nipple is constructed from lead free brass, ensuring compliance with health and safety standards for water applications.

What is the thread standard for this brass nipple?

The threads on this nipple conform to the ASME B1.20.1 standard, ensuring compatibility and a reliable seal with corresponding NPT threaded components.

Is this nipple suitable for potable (drinking) water applications?

Yes, this lead free brass nipple meets NSF/ANSI61 and NSF/ANSI372 certifications, making it safe for use in potable water systems.

What is the schedule rating of this pipe nipple?

This nipple features a Schedule 40 wall thickness, indicating its strength and suitability for various pressure applications.

What are the dimensions of this pipe nipple?

This is a 2 inch nominal pipe size nipple with an overall length of 12 inches, providing a standard size for common plumbing configurations.
