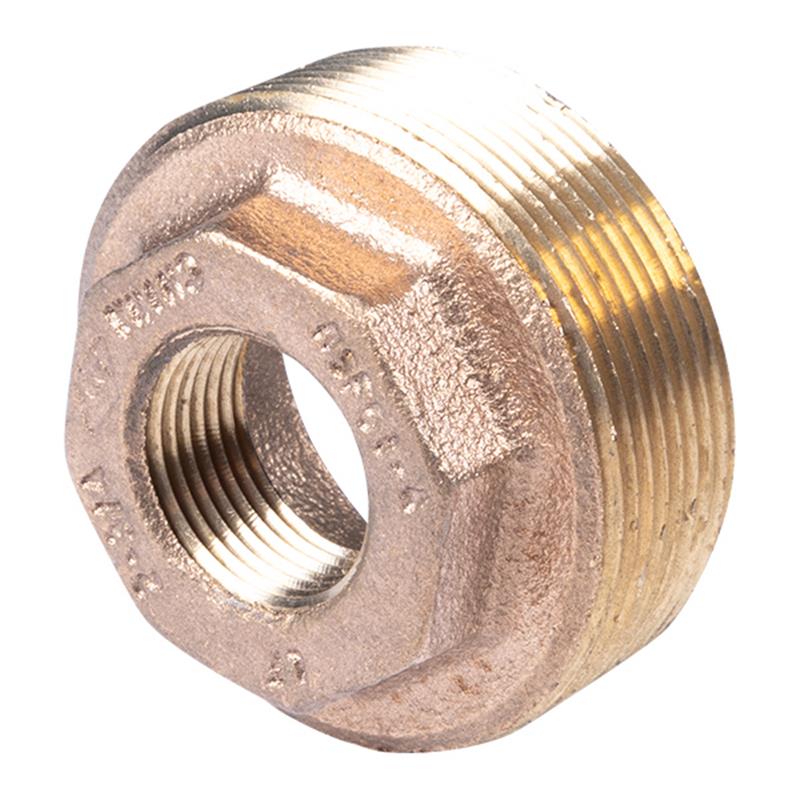

2" x 3/4" Lead Free Brass Bushing
Item Number: 15295
1
/
of
1
Regular price
$31.96
Limited Stock
(6)
Estimated transit time: 2 to 5 Business Days
Eligible for Express Shipping
Brand - Matco-Norca
Couldn't load pickup availability
- Material: Lead Free Brass (ASTM B584, Alloy C89833)
- Weight: 0.75 lb
- Nominal Pipe Size: 2 inch Male NPT x 3/4 inch Female NPT
- Pressure Class: 125 lbs.
- Thread Standard: ASME B1.20.1
- Certified: NSF 61
- Certified: NSF 372
- Overall Length: 0.88 inches
- Hex Body Diameter: 1.63 inches
Description
Description
The Matco-Norca 2" x 3/4" Lead Free Brass Bushing is a high-quality fitting designed to reduce pipe connection sizes in residential and commercial plumbing. Constructed from durable ASTM B584, Alloy C89833 lead-free brass, it is certified NSF 61 and 372, making it safe for potable water applications. This Class 125 lbs. bushing features ASME B1.20.1 threads, ensuring reliable performance and easy installation. Its robust design is ideal for adapting larger 2-inch male NPT connections to smaller 3/4-inch female NPT lines. Item number 15295.
Help Me Connect
Help Me Connect
Connecting a Bushing
- This bushing is designed to reduce the size of a threaded connection. The 2 inch male NPT (National Pipe Taper) thread will connect into a 2 inch female NPT fitting.
- The interior 3/4 inch female NPT thread will accept a 3/4 inch male NPT pipe or fitting.
- Ensure all threads are clean and free of debris. Use appropriate thread sealant or PTFE tape for a leak-tight connection.

Collapsible content
Additional Details
This 2 inch x 3/4 inch lead free brass bushing is designed to reduce pipe size in plumbing systems, connecting a larger male pipe thread to a smaller female pipe thread. It features a hexagonal body for easy installation with a wrench.
Construction & Compliance
- Manufactured from lead free brass (ASTM B584, Alloy C89833) ensuring suitability for potable water applications.
- Designed to Class 125 lbs. pressure specifications.
- Utilizes ASME B1.20.1 threads for reliable, leak-free connections.
- Approved by NSF 61 and NSF 372, certifying it safe for use in drinking water systems.
Specifications
- Material: ASTM B584, Alloy C89833 (Lead Free Brass)
- Nominal Pipe Size: 2 inch Male NPT x 3/4 inch Female NPT
- Pressure Class: 125 lbs.
- Thread Standard: ASME B1.20.1
- Overall Length (A): 0.88 inches
- Thread Depth, Smaller End (B): 0.41 inches
- Hex Body Diameter (C): 1.63 inches
Certificates & Approvals
- NSF 61
- NSF 372
FAQs
What are the connection sizes of this bushing?
This bushing features a 2 inch male NPT thread on the larger end and a 3/4 inch female NPT thread on the smaller end, allowing you to reduce pipe connections.
Is this brass bushing safe for drinking water applications?
Yes, this lead free brass bushing is certified by NSF 61 and NSF 372, making it safe and compliant for use in potable (drinking) water systems.
What material is this bushing made from?
This bushing is made from lead free brass, specifically ASTM B584, Alloy C89833, which provides excellent durability and corrosion resistance for water applications.
What is the pressure rating for this fitting?
The bushing is rated as Class 125 lbs., indicating its suitability for plumbing systems operating within standard pressure limits for this class of fitting.
What are the key dimensions of the 2" x 3/4" bushing?
The overall length (A) of this bushing is 0.88 inches, and the hexagonal body diameter (C) is 1.63 inches for wrenching. The thread depth of the smaller 3/4" end (B) is 0.41 inches.
