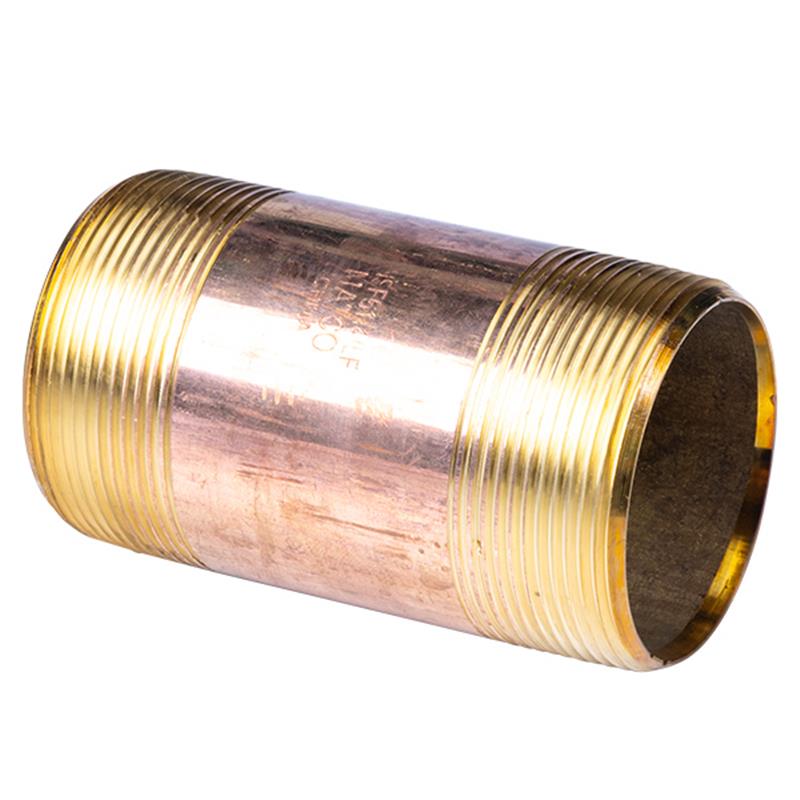

2" x 4" Lead Free Brass Nipple

Item Number: 10339
Skip to product information
1 of 1
Regular price $29.68
In Stock (10)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Matco-Norca

  • Pipe Size: 2 inch
  • Weight: 1.37 lb
  • Length: 4 inch
  • Material: Lead Free Brass
  • Wall Thickness Schedule: 40
  • Conforms to ASTM B43 & B687 standards
  • Threads conform to ASME B1.20.1
  • NSF/ANSI61 & NSF/ANSI372 Certified
  • CRN Compliant

Description

This 2 inch x 4 inch lead free brass nipple is a Schedule 40 pipe fitting designed for reliable plumbing and industrial connections. Constructed from lead free brass conforming to ASTM B43 and B687, it ensures durability and compliance. The threads meet ASME B1.20.1 standards for accurate fitting. This nipple is also certified to NSF/ANSI61 and NSF/ANSI372, making it suitable for potable water applications, and is CRN compliant. It provides a robust and safe solution for extending pipe runs or connecting components.

Help Me Connect

Connection Information

  • This 2-inch nipple features threads that conform to ASME B1.20.1 standards, ensuring proper connection with other NPT (National Pipe Taper) threaded components of the same size.
View full details

Collapsible content

Additional Details

This is a 2 inch by 4 inch lead free brass nipple designed for various plumbing and industrial applications.
Construction & Compliance
  • Manufactured from lead free brass conforming to ASTM B43 standards for material composition.
  • Dimensions and ends conform to ASTM B687.
  • Threads conform to ASME B1.20.1 ensuring compatibility with standard pipe threads.
  • Meets NSF/ANSI61 and NSF/ANSI372 standards for potable water applications.
  • CRN compliant for various applications.
  • Schedule 40 wall thickness for durability.

Specifications

  • Pipe Size: 2 inch
  • Length: 4 inch
  • Material: Lead Free Brass
  • Wall Thickness Schedule: 40
  • Conforms to Material Standard: ASTM B43
  • Conforms to Dimensions & Ends Standard: ASTM B687
  • Threads Standard: ASME B1.20.1
  • Minimum Wall Thickness (Tmin.): 0.147 inch
  • Dimension A: 2.063 inch
  • Dimension B: 2.375 inch
  • Dimension L1: 1.058 inch

Certificates & Approvals

  • NSF/ANSI61 Certified
  • NSF/ANSI372 Certified
  • CRN Compliant

FAQs

What are the dimensions of this brass nipple?

This nipple has a nominal pipe size of 2 inches and a length of 4 inches. Key dimensions include A=2.063 inches, B=2.375 inches, and L1=1.058 inches.

Is this nipple safe for use with potable water?

Yes, this lead free brass nipple meets NSF/ANSI61 and NSF/ANSI372 standards, making it safe for use in potable water applications.

What type of threads does this nipple have?

The threads on this brass nipple conform to ASME B1.20.1, which specifies National Pipe Taper (NPT) threads, ensuring compatibility with standard threaded pipes and fittings.

What material is this pipe nipple made from?

This pipe nipple is made from lead free brass, which conforms to ASTM B43 material standards for quality and composition.

What is "Schedule 40" referring to?

"Schedule 40" refers to the wall thickness of the pipe nipple, indicating its durability and pressure rating characteristics for various applications.
