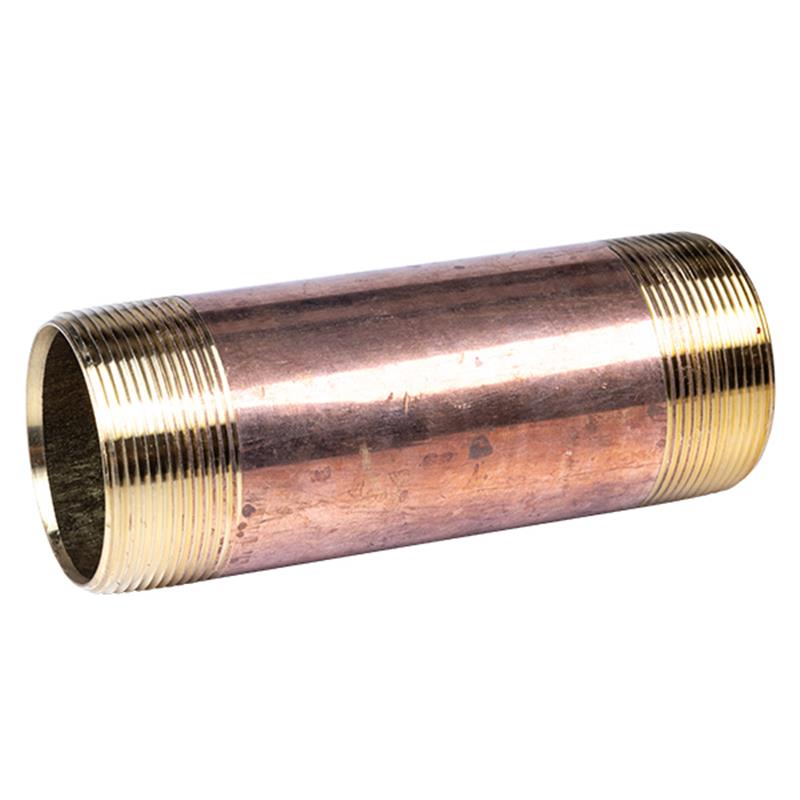

2" x 6" Lead Free Brass Nipple

Item Number: 11659
Skip to product information
1 of 1
Regular price $43.83
Limited Stock (5)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Matco-Norca

  • Nominal Size: 2 inch
  • Weight: 2.05 lb
  • Nominal Length: 6 inch
  • Material: Lead Free Brass
  • Schedule: 40
  • Threads conform to ASME B1.20.1
  • Meets NSF/ANSI61, NSF/ANSI372 & CRN standards
  • Conforms to ASTM B43 and ASTM B687

Description

This 2 inch x 6 inch Lead Free Brass Nipple is a Schedule 40 pipe fitting suitable for various plumbing, industrial, and fire-safety applications. Manufactured from lead-free brass, it complies with ASTM B43, ASTM B687, and ASME B1.20.1 thread standards. Key certifications include NSF/ANSI 61, NSF/ANSI 372, and CRN, ensuring its suitability for potable water systems and pressure applications. The 6-inch length provides flexibility for extending pipe runs or adapting connections. Item number 11659.

Help Me Connect

Connections

  • The 2 inch nominal pipe size (NPS) nipple features male National Pipe Taper (NPT) threads on both ends, conforming to ASME B1.20.1 standards.
  • It is designed to connect to female NPT threaded fittings, valves, or other pipe components of the same 2 inch size.
View full details

Collapsible content

Additional Details

The 2 inch by 6 inch Lead Free Brass Nipple is a durable pipe fitting used to extend pipe runs or connect other components in various fluid and gas handling systems.
This nipple is manufactured from lead-free brass, ensuring compliance with health and safety standards for potable water applications.
Key Features
  • Constructed from Schedule 40 brass for robust performance.
  • Conforms to ASTM B43 for lead-free brass composition.
  • Dimensions and ends conform to ASTM B687 standards.
  • Threads conform to ASME B1.20.1 for reliable sealing.
  • Meets NSF/ANSI61, NSF/ANSI372, and CRN certifications for safety and quality.

Specifications

  • Nominal Size: 2 inch
  • Nominal Length: 6 inch
  • Material: Lead Free Brass
  • Schedule: 40
  • Thread Standard: ASME B1.20.1
  • End Standard: ASTM B687
  • Minimum Wall Thickness (T(min.)): 0.147 inch

Certificates & Approvals

  • NSF/ANSI 61
  • NSF/ANSI 372
  • CRN
  • ASTM B43

FAQs

What material is this brass nipple made from?

This brass nipple is made from lead-free brass, conforming to ASTM B43 standards for material composition.

What are the dimensions of this nipple?

This is a 2-inch nominal size nipple with a 6-inch nominal length. The dimensions and ends conform to ASTM B687.

Is this nipple certified for potable water applications?

Yes, this lead-free brass nipple meets NSF/ANSI 61 and NSF/ANSI 372 certifications, making it suitable for potable water use.

What type of threads does this nipple have?

This nipple features threads that conform to ASME B1.20.1, which is the standard for National Pipe Taper (NPT) threads, ensuring compatible connections.

What is the wall thickness of this Schedule 40 nipple?

The minimum wall thickness (T(min.)) for this 2-inch Schedule 40 brass nipple is 0.147 inches, as per the specifications.
