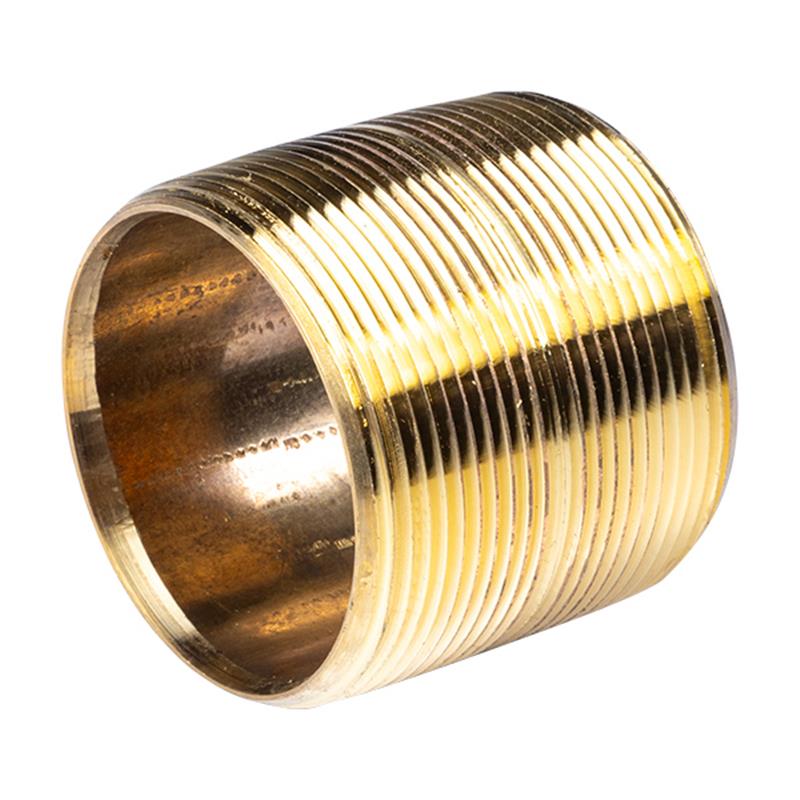

2" x Close Lead Free Brass Nipple
Item Number: 952
1
/
of
1
Regular price
$18.21
In Stock
(10)
Estimated transit time: 2 to 5 Business Days
Eligible for Express Shipping
Brand - Matco-Norca
Couldn't load pickup availability
- Size: 2 inch
- Weight: 0.69 lb
- Nipple Type: Close
- Body Material: Lead Free Brass
- Pipe Schedule: Schedule 40
- Conforms to ASTM B43
- Threads conform to ASME B1.20.1
- Certified: NSF/ANSI61, NSF/ANSI372, CRN
- Overall Length: 2 inches
Description
Description
This 2 inch x Close Lead Free Brass Nipple is a Schedule 40 pipe fitting, ideal for tight connections in various plumbing and industrial applications. Crafted from lead-free brass, it conforms to ASTM B43 for material and ASTM B687 for dimensions and ends. The threads meet ASME B1.20.1 standards, ensuring secure and leak-free installations. It is also certified by NSF/ANSI61, NSF/ANSI372, and CRN, making it suitable for potable water and other regulated systems. The close nipple design provides minimal projection for compact setups.
Help Me Connect
Help Me Connect
Connections
- This nipple features NPT (National Pipe Taper) threads on both ends, conforming to ASME B1.20.1.
- Designed to connect to other 2 inch NPT threaded components, such as pipes, fittings, or valves.

Collapsible content
Additional Details
This is a 2 inch x Close Lead Free Brass Nipple designed for connecting various components in plumbing and industrial systems. It provides a reliable connection point where a minimal length is required.
Key Features
- Made from Lead Free Brass, conforming to ASTM B43 standards.
- Features Schedule 40 pipe wall thickness for durability.
- Dimensions and ends conform to ASTM B687.
- Threads conform to ASME B1.20.1 for secure connections.
- Meets NSF/ANSI61, NSF/ANSI372, and CRN certifications.
Specifications
- Body Material: Lead Free Brass
- Pipe Schedule: Schedule 40
- Nominal Pipe Size: 2 inch
- Nipple Type: Close
- Overall Length: 2 inches
- Outside Diameter (Pipe End 'A'): 2.063 inches
- Outside Diameter (Threads 'B'): 2.375 inches
- Minimum Wall Thickness: 0.147 inches
Standards Conformance
- Lead Free Brass: ASTM B43
- Dimensions and Ends: ASTM B687
- Threads: ASME B1.20.1
Certificates & Approvals
- Certified: NSF/ANSI61
- Certified: NSF/ANSI372
- Certified: CRN
FAQs
What does "Close Nipple" mean for this product?
A "Close Nipple" refers to a pipe nipple that is very short, with threads running along almost its entire length. This design minimizes the exposed pipe surface between connected fittings.
What material is this nipple made from and what are its material standards?
This nipple is constructed from Lead Free Brass. The lead-free brass material conforms to ASTM B43 standards.
What thread standard does this brass nipple conform to?
The threads on this brass nipple conform to ASME B1.20.1, which specifies the dimensions and tolerances for NPT (National Pipe Taper) threads, ensuring compatible and secure connections.
Is this 2-inch brass nipple suitable for use with potable water?
Yes, this nipple meets NSF/ANSI61 and NSF/ANSI372 certifications, indicating its suitability for potable water applications and ensuring it does not leach harmful contaminants into drinking water.
What is the pipe schedule of this nipple?
This brass nipple is manufactured to Schedule 40 pipe wall thickness, providing a robust and durable fitting suitable for various pressure applications.
