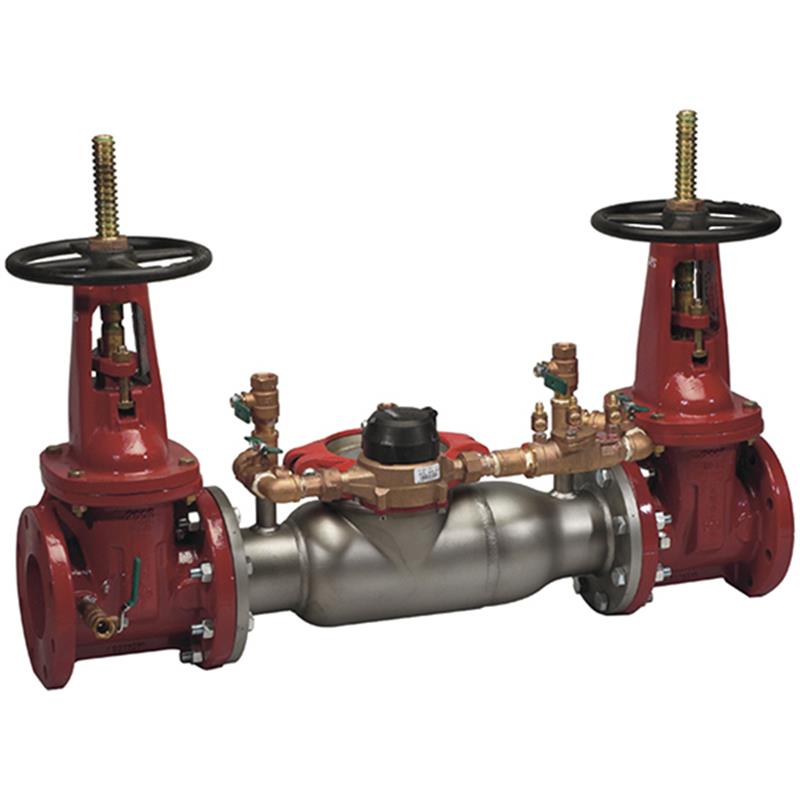

3 3000SS-DOSY-GPM

Item Number: 0692741
1 1
$9,382.50
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Product Type: Double Check Detector Backflow Preventer
  • Weight: 248.0 lb
  • Nominal Size: 3 inch
  • Body Material: 300 Series Stainless Steel
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F – 110°F
  • Cam-Check Assembly valve provides low head loss
  • Integrated supervisory switch option on OS&Y gate valves
  • GPM metered bypass detects leaks and unauthorized water use

Description

The 3 inch AMES 3000SS Double Check Detector Backflow Preventer Assembly protects potable water supplies from non-health hazard contaminants, such as fire protection system substances. This assembly features a durable 300 Series stainless steel body, ensuring long-term corrosion resistance and reduced installation costs due to its lighter weight. Equipped with OSY shutoffs, Cam-Check valves for low head loss, and a gallons per minute (GPM) metered bypass, it effectively detects underground leaks and unauthorized water use. The compact design allows for easy maintenance with a single access cover and supports both horizontal and vertical flow-up installations, meeting ASSE 1048 and FM Approvals.

Help Me Connect

Applications

  • Designed for fire protection systems and non-health hazard containment requirements.
  • Prevents reverse flow of fire protection system substances, such as glycerin wetting agents and stagnant water.
  • Prevents reverse flow of water of non-potable quality from being pumped or siphoned into the potable water supply.

Installation

  • May be installed in either a horizontal or vertical "flow up" position (ASSE Only).
  • The assembly features flanged inlet gate connection and flanged outlet gate connection.
View full details

Additional Details

This 3 inch AMES 3000SS Double Check Detector Backflow Preventer Assembly with domestic OSY shutoffs and Cam-Check valves is designed to prevent the reverse flow of non-potable fire protection substances and water into the potable water supply. It is ideal for protection at non-health hazard cross-connections such as fire protection systems and service line entrances.

The compact, modular design with a stainless steel body is approved for both horizontal and vertical "flow up" installation, featuring a gallons per minute (GPM) metered bypass for leak detection.

Features

  • Cam-Check Assembly valve provides low head loss.
  • Short lay length is ideally suited for retrofit installations.
  • Stainless steel body reduces installation and shipping cost, providing long-term corrosion protection and maximum strength.
  • Single top access cover with two-bolt grooved style coupling for ease of maintenance.
  • No special tools required for servicing.
  • Compact construction allows for smaller vaults and enclosures.
  • Furnished with a 5/8" x 3/4" bronze meter (gpm or cfm) to detect underground leaks and unauthorized water use.
  • May be installed horizontal or vertical "flow up" position (ASSE Only).
  • Includes an integrated supervisory switch as an option on each gate valve of the OS&Y model.

WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Consult your local water authority, building, and plumbing codes before installation.

Specifications

General

  • Product Type: Double Check Detector Backflow Preventer
  • Nominal Size: 3 inch
  • Model: 3000SS-DOSY-GPM
  • Body Material: 300 Series Stainless Steel
  • Internal Metal Parts: 300 Series Stainless Steel
  • Check Assembly Material: Noryl® Flange (AWWA Class D)
  • Main Valve Type: Outside Stem and Yoke (OSY) Resilient Seated Gate Valves
  • Check Valve Type: Cam-Check Assembly, Torsion Spring Loaded
  • Bypass Meter: 5/8" x 3/4" Bronze (GPM or CFM)
  • Maximum Working Pressure: 175 psi (12 bar)
  • Temperature Range: 33°F – 110°F (0.5°C – 43°C)
  • Installation Position: Horizontal or Vertical "Flow Up" (ASSE Only)

Dimensions (Approximate)

  • Length (A): 38 inches (965 mm)
  • Width (C OSY): 18 7/8 inches (479 mm)
  • Height (P): 13 inches (330 mm)
  • Net Weight (With Gates): 235 lbs (106 kg)

Certificates & Approvals

  • ASSE 1048
  • AWWA C510-92
  • CSA B64.5
  • UL 1469
  • UL Classified (OSY only)
  • FM Approved (sizes 2 1/2" – 10", OSY only)
  • USC Foundation for Cross-Connection Control and Hydraulic Research

FAQs

What is the primary purpose of the AMES 3000SS Double Check Detector Backflow Preventer Assembly?

Its primary purpose is to prevent the reverse flow of non-potable substances, such as those found in fire protection systems, from contaminating the potable (drinking) water supply. It is used in non-health hazard applications.

What materials are used in the construction of this backflow preventer?

The main valve body and internal metal parts are constructed from 300 Series stainless steel, providing excellent corrosion protection and durability. The check assembly utilizes Noryl® flange material.

Can this backflow preventer be installed in any orientation?

Yes, this assembly is approved for installation in both horizontal and vertical "flow up" positions, as per ASSE standards.

What is the function of the GPM metered bypass?

The gallons per minute (GPM) metered bypass is designed to detect underground leaks and unauthorized water usage, providing an additional layer of system monitoring.

Does this product require special tools for maintenance?

No, the design of the AMES 3000SS features a single top access cover with a two-bolt grooved style coupling, allowing for ease of maintenance without requiring special tools.
