3 3000SS-LG-GPM

Item Number: 0690483
1 1
$6,546.75
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 3 inch
  • Weight: 65.0 lb
  • Model: LG (Less Shutoff Valves)
  • Body Material: 300 Series Stainless Steel
  • Maximum Working Pressure: 175 PSI
  • Temperature Range: 33°F – 110°F
  • Includes 5/8" x 3/4" bronze GPM meter
  • Can be installed horizontal or vertical "flow up"
  • ASSE 1048, AWWA C510-92, CSA B64.5, UL 1469 Approved

Description

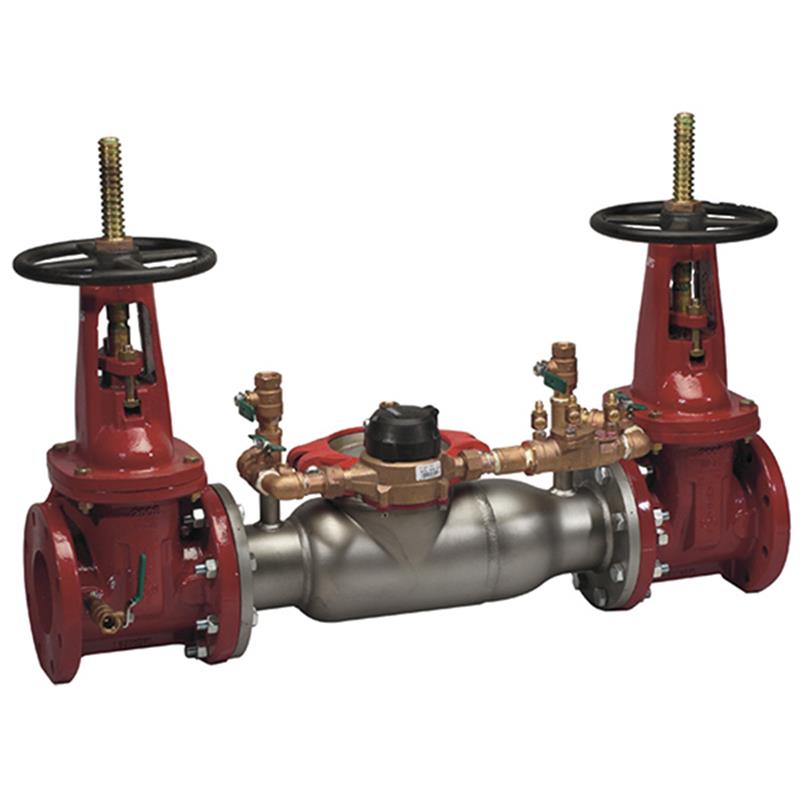

The 3 inch AMES Series 3000SS Double Check Detector Backflow Preventer Assembly with less shutoff valves and a gallon per minute meter is designed for non-health hazard containment in fire protection systems. This compact unit features a durable 300 Series stainless steel body, cam-check valves for low head loss, and is suitable for horizontal or vertical "flow up" installation. It prevents reverse flow from fire protection substances into the potable water supply and includes a meter for leak detection. Maximum working pressure is 175 PSI. Item number 0690483.
View full details

Additional Details

This 3 inch double check detector backflow preventer assembly, Series 3000SS, is designed to prevent the reverse flow of fire protection substances and water of non-potable quality into the potable water supply due to backsiphonage and/or backpressure. It is ideal for protection at cross-connections identified as non-health hazards such as on fire protection systems and from other contaminants found at the service line entrance.

Features

  • The Cam-Check Assembly valve provides low head loss.
  • Short lay length makes it ideally suited for retrofit installations.
  • Stainless steel body reduces installation and shipping cost while providing long term corrosion protection and maximum strength.
  • Features a single top access cover with two-bolt grooved style coupling for ease of maintenance.
  • No special tools are required for servicing.
  • Compact construction allows for smaller vaults and enclosures.
  • Furnished with a 5/8 inch x 3/4 inch bronze meter (gpm or cfm) to detect underground leaks and unauthorized water use.
  • May be installed in horizontal or vertical "flow up" position (ASSE Only).

WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Consult your local water authority, building, and plumbing codes before installation.

Specifications

  • Series: 3000SS
  • Size: 3 inch
  • Model: LG (Less Shutoff Valves)
  • Internal Metal Parts: 300 Series Stainless Steel
  • Main Valve Body: 300 Series Stainless Steel
  • Check Assembly: Noryl® Flange dimension in accordance with AWWA Class D
  • Maximum Working Pressure: 175 PSI (12 bar)
  • Temperature Range: 33°F – 110°F (0.5°C – 43°C)
  • Meter: 5/8 inch x 3/4 inch Bronze (GPM)

Certificates & Approvals

  • ASSE 1048
  • AWWA C510-92
  • CSA B64.5
  • UL 1469
  • USC Foundation for Cross-Connection Control and Hydraulic Research

FAQs

What is the primary use of this 3000SS backflow preventer assembly?

This assembly is primarily used in fire protection systems to prevent the reverse flow of non-potable substances, such as glycerin wetting agents or stagnant water, from contaminating the potable water supply. It is intended for non-health hazard containment.

Can this backflow preventer be installed in any orientation?

Yes, this Series 3000SS backflow preventer can be installed in either a horizontal or vertical "flow up" position, as approved by ASSE.

What kind of meter is included with this model?

This model is furnished with a 5/8 inch x 3/4 inch bronze meter (GPM or CFM) to detect underground leaks and unauthorized water use, specifically tracking gallons per minute.

What materials are used in the construction of this device?

The main valve body and internal metal parts are constructed from 300 Series stainless steel, providing long-term corrosion protection. The check assembly uses Noryl® material for its flange dimensions.

Are special tools required for servicing this backflow preventer?

No, special tools are required for servicing this Series 3000SS double check detector assembly. It features a single top access cover with a two-bolt grooved style coupling for ease of maintenance.
