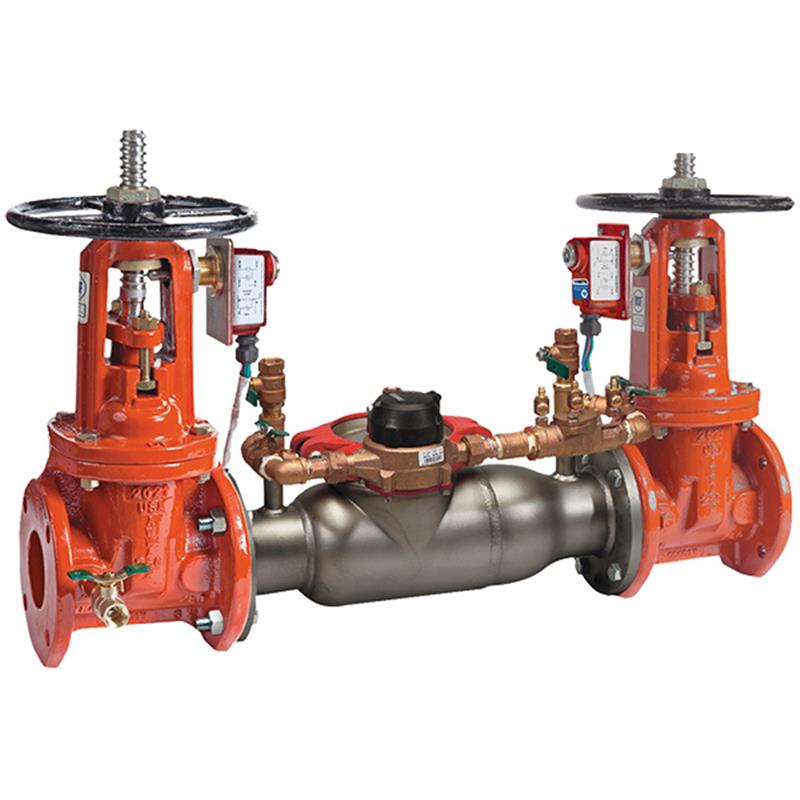

This 3 inch Series 3000SS Double Check Detector Assembly is designed to prevent the reverse flow of fire protection system substances and non-potable water from entering the potable water supply. It provides containment protection for non-health hazard cross-connections due to backsiphonage and backpressure, suitable for fire protection systems.

Primary Use

• Prevents reverse flow of fire protection system substances like glycerin wetting agents or stagnant water into potable water supply.
• Detects underground leaks and unauthorized water use through the furnished gallon per minute (GPM) meter.

Features

• Cam-Check Assembly valve provides low head loss for efficient operation.
• Short lay length makes it ideally suited for retrofit installations.
• Includes an integrated UL Certified, Safety Signaling (Control No. 3L38) supervisory switch on each OS&Y gate valve, which sounds when the switch is removed or the valve is closed.
• No special tools required for servicing for ease of maintenance.
• May be installed in horizontal or vertical "flow up" positions (ASSE Only).

Construction & Design

• Features a stainless steel body, which is half the weight of competitive designs, reducing installation and shipping costs.
• Stainless steel construction provides long-term corrosion protection and maximum strength.
• Compact construction allows for smaller vaults and enclosures.
• Equipped with a single top access cover with two-bolt grooved style coupling for ease of maintenance.
• Uses outside stem and yoke (OS&Y) resilient seated gate valves and captured spring check valves.

Included Components

• Furnished with a 5/8" x 3/4" bronze meter (gpm or cfm) for leak detection.
• Includes four test cocks for easy testing.

WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing, consult your local water authority, building, and plumbing codes.
