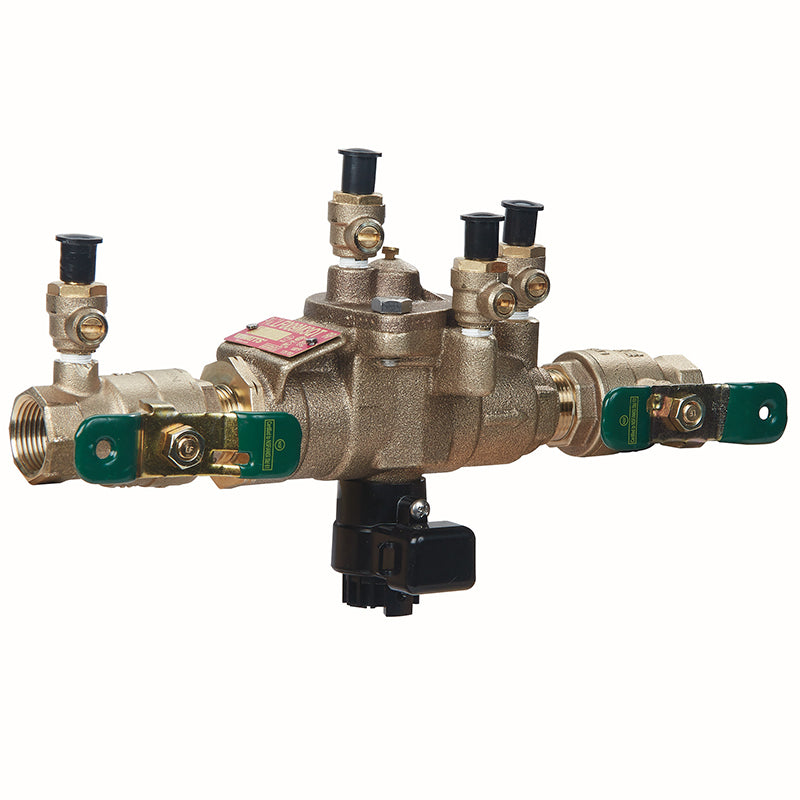

3/4 009M2-PC-QT-FS

Item Number: 88004132
1 2
$1,005.76
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Size: 3/4 inch
  • Weight: 5.6 lb
  • Body Material: Bronze
  • Connection Type: NPT Inlet and Outlet
  • Shutoff Valves: Quarter Turn Ball Valves
  • Flood Detection: SentryPlus Alert® Sensor
  • Maximum Supply Pressure: 175 psi
  • Water Temperature Range: 33°F – 180°F
  • Coating: Internal Polymer Coating

Description

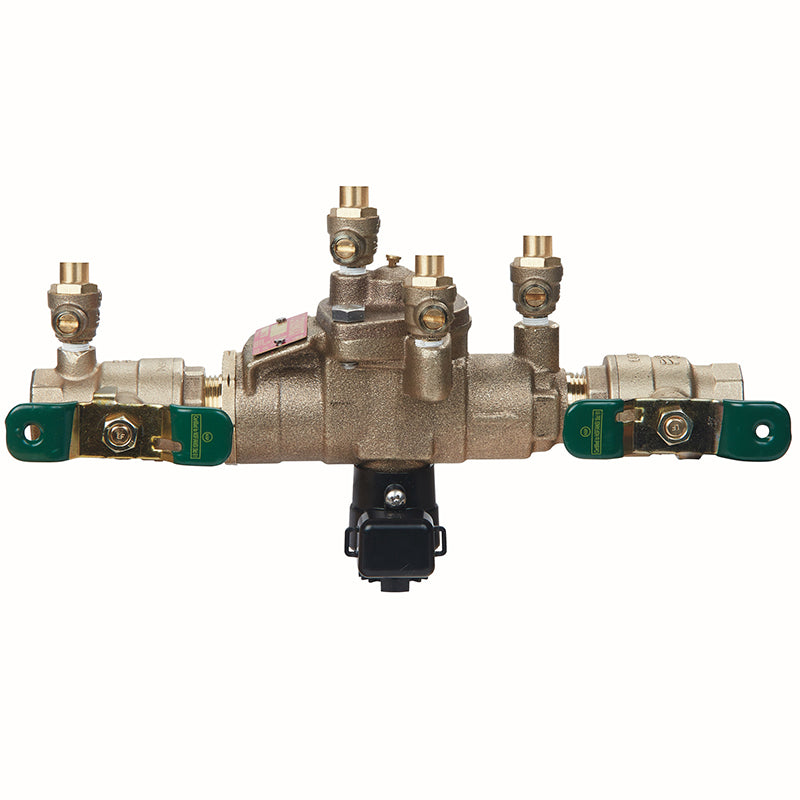

The Watts 3/4 inch 009M2-PC-QT-FS Reduced Pressure Zone Assembly Backflow Preventer safeguards potable water supplies from pollution caused by backsiphonage or backpressure. This bronze body backflow preventer features an internal polymer coating for enhanced corrosion protection and NPT inlet/outlet connections. It includes quarter-turn ball valve shutoffs, two independent check valves, and an internal relief valve for compact installation. A SentryPlus Alert® flood sensor on the relief valve detects excessive discharges, providing critical alerts when connected to an add-on kit. Its modular design allows for easy in-line maintenance and economical repairs.

Help Me Connect

Connections

  • This backflow preventer features NPT inlet and outlet connections, designed for direct threaded installation into your plumbing system.

Flood Sensor Activation

  • The integrated SentryPlus Alert® flood sensor is a passive component until an add-on connection kit is installed.
  • An add-on connection kit is required to activate the sensor and enable communication for flood detection alerts.
  • Connection kit options include BMS, cellular communication, or the Sensor Control Monitor which integrates with BAS via RS‑485 Modbus or the Nexa® platform through Wi-Fi.
View full details

Additional Details

This 3/4 inch reduced pressure zone assembly backflow preventer, model 009M2-PC-QT, is designed to prevent the flow of polluted water from entering into the potable water supply due to backsiphonage and/or backpressure in accordance with national plumbing codes and water authority requirements.

Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. This assembly includes a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve. When paired with an add-on connection kit, the sensor is activated to relay alerts for potential flooding events.

Construction & Design

  • Bronze body construction ensures durability and longevity.
  • Internal polymer coating provides extended corrosion protection.
  • Features two in-line independent check valves with captured springs.
  • Replaceable check seats and a removable internal relief valve seat allow for economical repair and reduced installation clearances.
  • Single access cover and modular check construction for ease of maintenance and immediate accessibility.
  • Large body passages provide low pressure drop.
  • Compact, space-saving design requires no special tools for servicing.

Connections & Operation

  • Equipped with NPT inlet and outlet connections.
  • Includes quarter turn full port resilient seated ball valve shutoffs with lever handles.
  • Features top-mounted test cocks.

An add-on connection kit is required to activate the flood sensor. Without the connection kit, the sensor is a passive component that has no communication with any other device.

Specifications

  • Size: 3/4 inch
  • Model: 009M2-PC-QT-FS
  • Body Material: Bronze
  • Coating: Internal Polymer Coating
  • Connection Type: NPT Inlet and Outlet
  • Shutoff Valves: Quarter Turn Ball Valves with Lever Handles
  • Test Cocks: Top Mounted, Screwdriver Slotted
  • Check Valves: Two In-line Independent Check Valves
  • Relief Valve: Internal
  • Seat Material: Silicone Rubber Disc (checks and relief valve)
  • Cover Bolts: Stainless Steel
  • Flood Detection: SentryPlus Alert® Sensor on Relief Valve
  • Maximum Supply Pressure: 175 psi (12.1 bar)
  • Water Temperature Range: 33°F – 180°F (0.5°C – 75°C)

Certificates & Approvals

  • Meets Requirements: USC
  • Standard: ASSE No. 1013
  • Standard: AWWA C511-92
  • Standard: CSA B64.4
  • Approval: IAPMO File No. 1563
  • Approval: ASSE, AWWA, CSA, IAPMO
  • Approval: Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California
  • Classification: UL Classified 3/4" - 2"

FAQs

What is the primary function of this backflow preventer?

This 3/4 inch reduced pressure zone assembly is designed to prevent polluted water from entering the potable water supply by protecting against backsiphonage and backpressure, in compliance with national plumbing codes.

What type of connections does this assembly have?

This backflow preventer is equipped with NPT (National Pipe Taper) inlet and outlet connections for secure installation into plumbing systems. This ensures compatibility with standard threaded pipes.

How does the flood sensor work and what does it require?

The integrated SentryPlus Alert® flood sensor detects excessive water discharges from the relief valve. To activate its alert capabilities, an add-on connection kit (available separately, e.g., BMS, cellular, or Sensor Control Monitor) is required to enable communication.

What material is the body made from, and what is its internal coating?

The body of this backflow preventer is constructed from durable bronze. It features an internal polymer coating which provides extended protection against corrosion, enhancing its lifespan and reliability.

Are the internal components, like seats, replaceable for maintenance?

Yes, this model features replaceable check seats and a removable internal relief valve seat. This modular design allows for economical repairs and easy maintenance, contributing to the longevity of the assembly.
