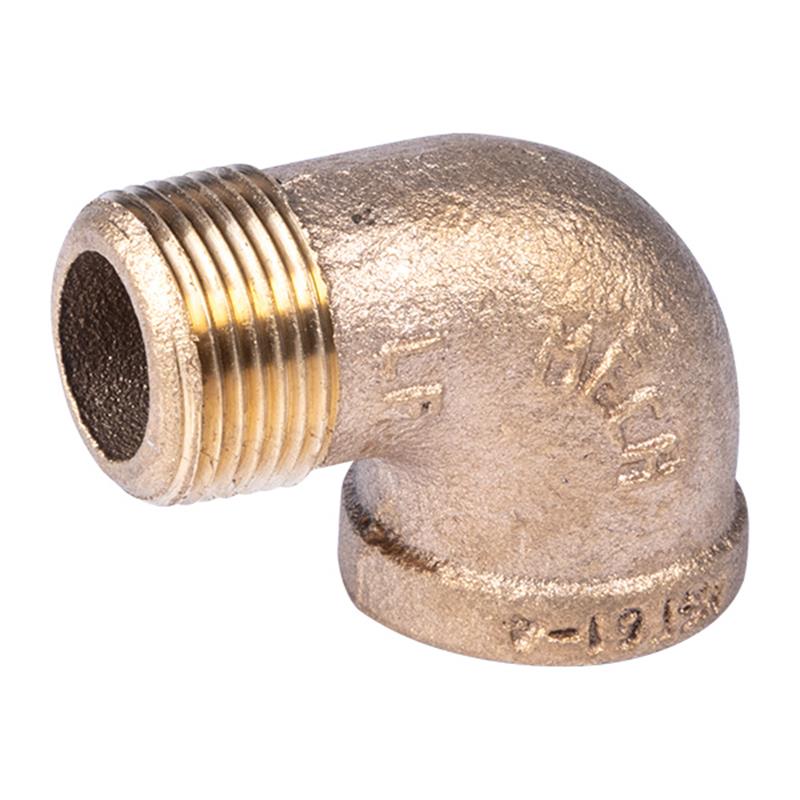

3/4" Lead Free 90 Degree Brass Street Elbow

Item Number: 15520
Skip to product information
1 of 1
Regular price $13.24
In Stock (10)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Matco-Norca

  • Nominal Size: 3/4 inch
  • Weight: 0.36 lb
  • Lead Free Brass Material: ASTM B584, Alloy C89833
  • Bend Angle: 90 Degree
  • Connection Type: Male NPT x Female NPT
  • Class: 125 lbs.
  • Threads: ASME B1.20.1
  • Approved: NSF 61, NSF 372

Description

This 3/4 inch lead-free brass 90-degree street elbow is designed for potable water applications and general plumbing, allowing for a 90-degree change in pipe direction. Constructed from ASTM B584, Alloy C89833 lead-free brass, it features one male NPT and one female NPT threaded end for versatile connections without an additional nipple. This Class 125 lbs. fitting is approved by NSF 61 and NSF 372, ensuring safety and compliance for drinking water systems. Its durable construction and precise threading (ASME B1.20.1) make it a reliable choice for residential, commercial, and industrial plumbing.

Help Me Connect

Connecting this 3/4" Lead Free 90 Degree Brass Street Elbow

  • The male NPT threaded end connects into a 3/4 inch female NPT threaded pipe or fitting.
  • The female NPT threaded end accepts a 3/4 inch male NPT threaded pipe or fitting.
  • This street elbow is ideal for making a 90-degree change in direction where space is limited or when directly connecting a component with a female thread to a component with a male thread, eliminating the need for a separate nipple.
View full details

Collapsible content

Additional Details

This is a 3/4 inch lead-free brass 90-degree street elbow, designed for changing the direction of piping by 90 degrees in plumbing and industrial applications.
It features one male NPT threaded end and one female NPT threaded end, allowing for direct connection between a female and a male threaded pipe or fitting without the need for an additional nipple.
Construction
  • Manufactured from lead-free brass (ASTM B584, Alloy C89833) ensuring potable water safety.
  • Class 125 lbs. pressure rating for general purpose use.
Connections
  • One 3/4 inch Male NPT (National Pipe Taper) threaded end.
  • One 3/4 inch Female NPT (National Pipe Taper) threaded end.

Specifications

  • Product Type: Street Elbow
  • Nominal Size: 3/4 inch
  • Bend Angle: 90 Degree
  • Connection Type: Male NPT x Female NPT
  • Material: ASTM B584, Alloy C89833 Lead Free Brass
  • Class: 125 lbs.
  • Threads: ASME B1.20.1
  • Dimension A: 1.01 inch
  • Dimension B: 1.48 inch
  • Dimension Standard: ASME B16.15, B16.18

Certificates & Approvals

  • NSF 61
  • NSF 372

FAQs

What material is this street elbow made from?

This street elbow is made from ASTM B584, Alloy C89833 lead-free brass, suitable for potable water applications.

What are the connection types for this elbow?

It features one 3/4 inch male NPT (National Pipe Taper) threaded end and one 3/4 inch female NPT threaded end.

What is the bend angle of this fitting?

This fitting provides a 90-degree change in direction for your piping system.

Is this fitting approved for drinking water?

Yes, this lead-free brass street elbow is approved to NSF 61 and NSF 372 standards, making it safe for potable water applications.

What does "Class 125 lbs." mean for this fitting?

"Class 125 lbs." refers to the pressure rating class for general-purpose threaded fittings, indicating its suitability for common low to medium pressure applications.
