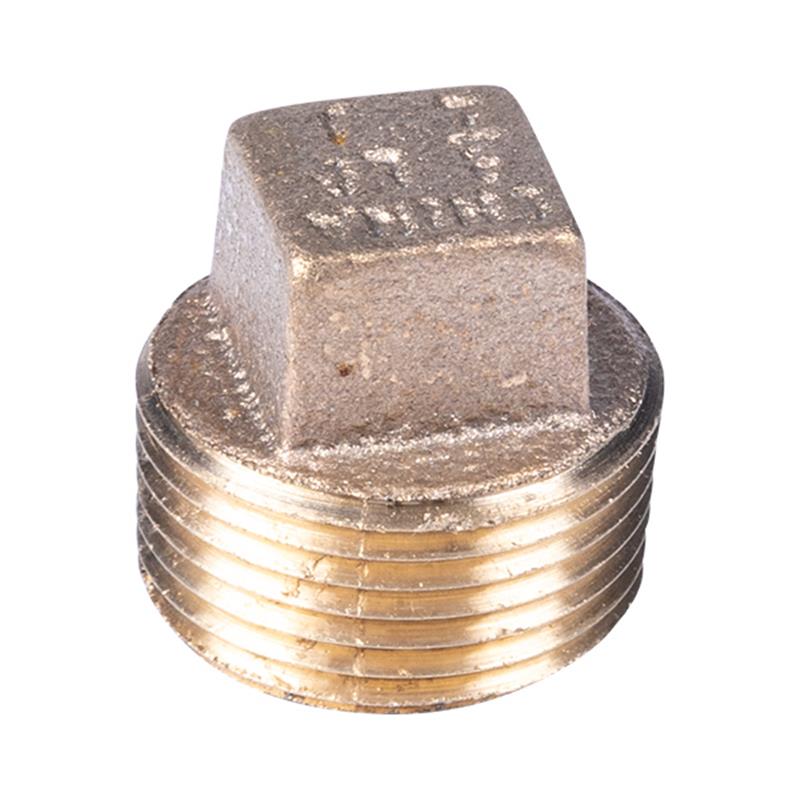

3/4" Lead Free Brass Plug

Item Number: 15168
Skip to product information
1 of 1
Regular price $6.25
In Stock (10)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Matco-Norca

  • Material: Lead Free Brass (ASTM B584, Alloy C89833)
  • Weight: 0.13 lb
  • Nominal Size: 3/4 inch
  • Thread Type: NPT Male (ASME B1.20.1)
  • Class Rating: 125 lbs.
  • Approved: NSF 61, NSF 372
  • Head Type: Square, for easy wrench installation

Description

The 3/4 inch Lead Free Brass Plug provides a reliable solution for sealing the end of a 3/4 inch NPT female threaded pipe or fitting. Constructed from durable ASTM B584, Alloy C89833 lead-free brass, this Class 125 lbs. plug is ideal for potable water applications, holding NSF 61 and NSF 372 approvals. Its square head design allows for straightforward installation and removal using a wrench. Compliant with ASME B1.20.1 thread standards, it ensures a secure, leak-free seal in various plumbing and industrial systems.

Help Me Connect

Connections

This 3/4 inch NPT male plug is designed to connect to 3/4 inch NPT female threaded fittings or pipes. The threads conform to the ASME B1.20.1 standard, ensuring compatibility with standard National Pipe Taper connections for a secure seal.

View full details

Collapsible content

Additional Details

A 3/4 inch lead free brass plug designed to seal off the end of a threaded pipe or fitting. This plug features a square head for easy installation and removal with a wrench.
Material
  • Constructed from lead free brass (ASTM B584, Alloy C89833)
Connections
  • Features 3/4 inch NPT (National Pipe Taper) male threads
  • Threads compliant with ASME B1.20.1 standard
Features
  • Class 125 lbs. pressure rating
  • Approved by NSF 61 and NSF 372 for potable water applications

Specifications

  • Body Material: Lead Free Brass (ASTM B584, Alloy C89833)
  • Nominal Size: 3/4 inch
  • Thread Standard: ASME B1.20.1
  • Class Rating: 125 lbs.

Dimensions

  • Overall Length (A): 0.55 inch
  • Square Head Width (B): 0.44 inch
  • Threaded Length (C): 0.62 inch

Certificates & Approvals

  • NSF 61
  • NSF 372

FAQs

What material is the 3/4" Lead Free Brass Plug made from?

This plug is manufactured from lead-free brass, specifically ASTM B584, Alloy C89833, ensuring safety for various applications.

What is the nominal size of this brass plug?

This is a 3/4 inch nominal size plug, designed for use with corresponding 3/4 inch NPT threaded connections.

What type of threads does this plug feature?

The plug features male NPT (National Pipe Taper) threads that conform to the ASME B1.20.1 standard for reliable compatibility.

Is this lead-free brass plug certified for potable water use?

Yes, this plug holds NSF 61 and NSF 372 certifications, making it suitable and safe for potable water applications.

What is the pressure rating for this plug?

This plug is rated as Class 125 lbs., indicating its design for systems requiring this pressure capability.
