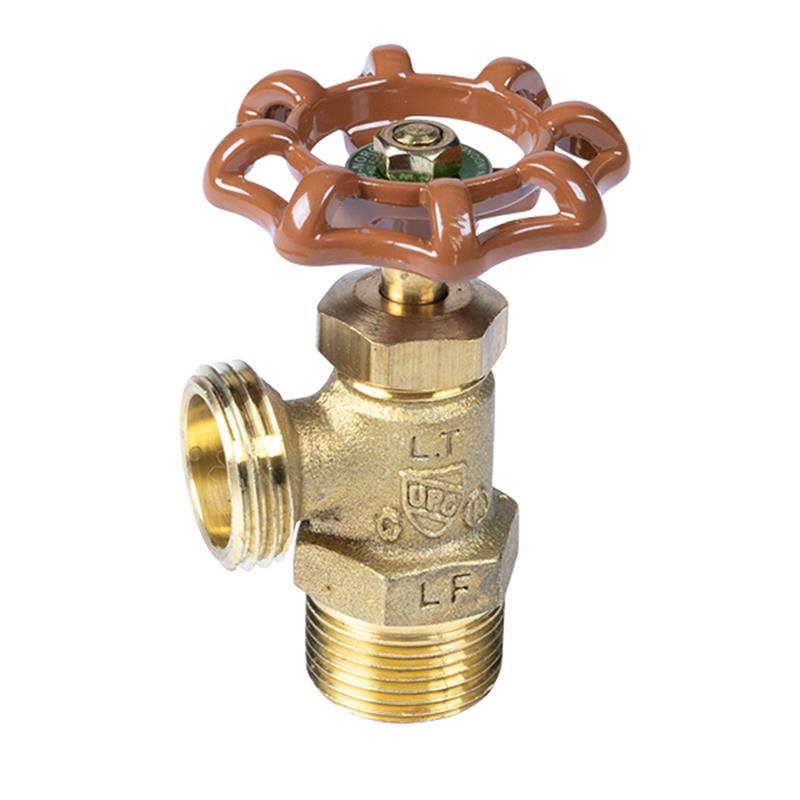

3/4" Lead Free Male Boiler Drain

Item Number: 15671
Skip to product information
1 of 1
Regular price $13.85
In Stock (10)
Estimated transit time: 2 to 3 Business Days Eligible for Express Shipping

Brand - Matco-Norca

  • Inlet Connection: 3/4 inch Male Iron Pipe (MIP)
  • Weight: 0.42 lb
  • Outlet Connection: 1/2 inch Female Iron Pipe (FIP)
  • Lead Free Brass construction
  • Pressure Rating: 125 WOG (Water, Oil, Gas)
  • Full Flow design for efficient drainage
  • Features an Angle Spout
  • NSF/ANSI 61, ASME & CSA Approved
  • Length: 1.46 inches

Description

The 3/4 inch Lead Free Male Boiler Drain (15671) is a durable valve designed for various plumbing and heating applications. Constructed from lead free brass, it ensures safe use with potable water. This full flow valve features a 3/4 inch Male Iron Pipe (MIP) inlet and a 1/2 inch Female Iron Pipe (FIP) outlet with an angle spout, making it ideal for draining boilers, water heaters, and hydronic systems. Rated for 125 WOG pressure, it meets NSF/ANSI 61, ASME, and CSA approval standards for quality and safety. Item number 15671.
View full details

Collapsible content

Additional Details

This is a 3/4 inch lead free male boiler drain valve, designed for full flow applications in plumbing and heating systems. It features an angle spout and a stuffing box for reliable performance.

Connections

  • Inlet: 3/4 inch Male Iron Pipe (MIP) thread
  • Outlet: 1/2 inch Female Iron Pipe (FIP) thread, suitable for hose connections

Features

  • Constructed from Lead Free Brass for safe potable water use
  • Rated for 125 WOG (Water, Oil, Gas) service
  • Designed for Full Flow, ensuring efficient drainage
  • Equipped with an Angle Spout for convenient access
  • Incorporates a Stuffing Box design for durable sealing

Specifications

  • Part Number: 205F04LF
  • Inlet Connection: 3/4 inch MIP
  • Outlet Connection: 1/2 inch FIP
  • Length (L): 1.46 inches
  • Height (H): 3.59 inches
  • Diameter (D): 2.08 inches
  • Pressure Rating: 125 WOG

Material Specifications

  • Body Material: Brass C89550
  • Stem Material: Brass C89550
  • Bonnet Material: Brass C89550
  • Packing Nut Material: Brass C89550
  • Seat Screw Material: Brass B19 C26000
  • Handle Wheel Material: Cast Iron
  • Gland Packing: PTFE
  • Seat Packing: BUNA
  • Wheel Nut Material: Hot Rolled SAE 1010R
  • Name Plate Material: Aluminum A1100

Certificates & Approvals

  • NSF/ANSI 61 Approved
  • ASME Approved
  • CSA Approved

FAQs

What are the connection types and sizes for this boiler drain?

This boiler drain features a 3/4 inch Male Iron Pipe (MIP) connection for the inlet and a 1/2 inch Female Iron Pipe (FIP) connection for the outlet. The FIP outlet is commonly used for hose connections.

Is this boiler drain suitable for potable water applications?

Yes, this boiler drain is constructed from lead free brass and is NSF/ANSI 61 approved, making it suitable and safe for use in potable water systems.

What is the pressure rating of this boiler drain?

This boiler drain is rated for 125 WOG, which means it can withstand 125 pounds per square inch for Water, Oil, or Gas applications at ambient temperatures.

What is meant by 'Full Flow' for this boiler drain?

A 'Full Flow' design means the valve allows for an unrestricted path for the fluid when fully open, maximizing the drainage speed and efficiency.

What materials are used in the construction of this valve?

The body, stem, bonnet, packing nut, and seat screw are made from various brass alloys. The handle wheel is cast iron, the gland packing is PTFE, and the seat packing is BUNA.
