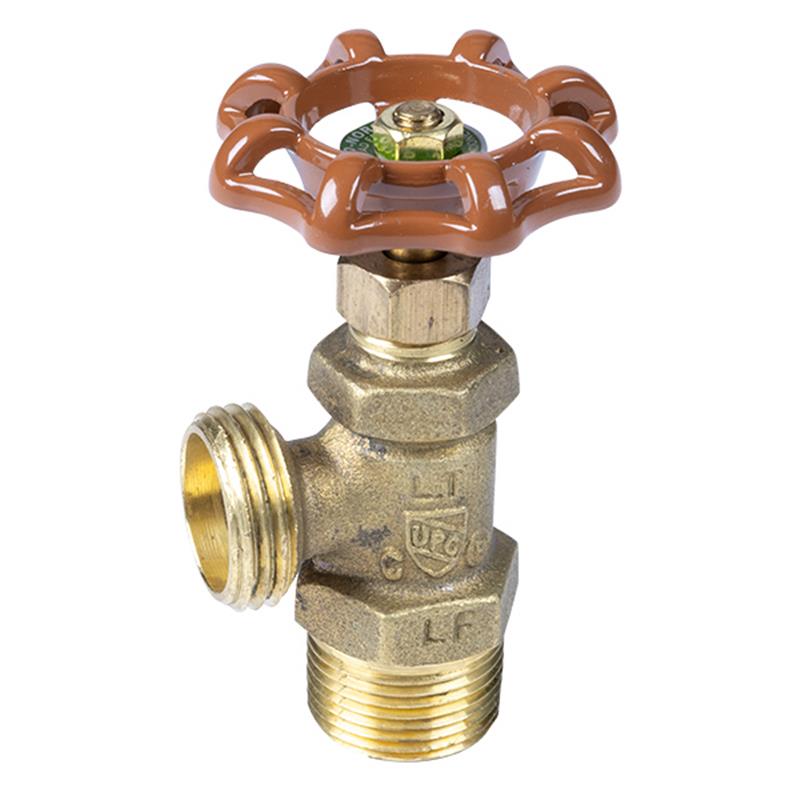

3/4" Lead Free Male Boiler Drain w/ Stuffing Box

Item Number: 15678
Skip to product information
1 of 1
Regular price $15.75
In Stock (10)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Matco-Norca

  • Size: 3/4 inch Male NPT x Hose
  • Weight: 0.46 lb
  • Material: Lead Free Brass
  • Pressure Rating: 125 WOG
  • Feature: With Stuffing Box
  • Body Material: Brass C89550
  • Handle Material: Cast Iron
  • Stem Material: Brass C89550
  • Packing Material: Rubber SAE No. 1052#

Description

The 3/4" Lead Free Male Boiler Drain with Stuffing Box (15678) is engineered for efficient and safe draining of boilers and water systems. Constructed from durable, lead-free brass (C89550), this valve features a 3/4" Male NPT inlet and a hose connection outlet for versatile applications. It is rated for 125 WOG pressure and includes a stuffing box for reliable sealing. Ideal for residential, commercial, or industrial plumbing, this valve ensures secure fluid control with its robust cast iron handle and rubber packing.

Help Me Connect

Connection Information

  • The 3/4 inch Male NPT threaded end connects to a corresponding 3/4 inch Female NPT threaded pipe or fitting.
  • The hose connection outlet is designed for standard hose attachments, allowing for convenient drainage.
View full details

Collapsible content

Additional Details

The 3/4" Lead Free Male Boiler Drain with Stuffing Box is a robust valve designed for draining boilers and other water systems.
This valve ensures reliable operation with its lead-free brass construction and a convenient hose connection for easy fluid discharge.
Features
  • Lead Free Brass body construction (Brass C89550)
  • Rated for 125 WOG (Water, Oil, Gas) applications
  • Equipped with a Stuffing Box for enhanced sealing and maintenance
  • Designed with a hose connection and 3/4" Male NPT inlet
Construction Materials
  • Body: Brass C89550
  • Handle Wheel: Cast Iron
  • Stem: Brass C89550
  • Packing: Rubber SAE No. 1052#
  • Washer: Stainless Steel 304/306
  • Seat Packing: Rubber SAE No. 1052#

Specifications

  • Part Number: 205TM4LF
  • Size: 3/4 inch Male NPT x Hose
  • Material: Lead Free Brass (Body Brass C89550)
  • Pressure Rating: 125 WOG
  • Stuffing Box: Yes
  • Handle Material: Cast Iron
  • Stem Material: Brass C89550
  • Packing Material: Rubber SAE No. 1052#
  • Washer Material: Stainless Steel 304/306
  • Seat Packing Material: Rubber SAE No. 1052#

Dimensions

  • Overall Height (H): 3.66 inches
  • Overall Length (L): 1.73 inches
  • Overall Diameter (D): 2.11 inches

FAQs

What is the primary use of this boiler drain valve?

This boiler drain valve is primarily used for safely and efficiently draining water from boilers, water heaters, and other residential or industrial water systems.

Is this boiler drain lead-free and suitable for potable water?

Yes, this valve features lead-free brass construction (Brass C89550), making it suitable for use in potable water applications where lead-free components are required.

What types of connections does this valve have?

This valve is equipped with a 3/4 inch Male NPT (National Pipe Taper) threaded inlet and a standard hose connection outlet, designed for easy attachment of a drainage hose.

What does the "125 WOG" pressure rating signify?

The "125 WOG" rating indicates that the valve is suitable for a maximum operating pressure of 125 PSI when handling Water, Oil, or Gas, ensuring its durability for various applications.

What is the benefit of having a "Stuffing Box"?

The stuffing box provides a critical seal around the valve stem, which helps prevent leaks and allows for periodic adjustments or maintenance, contributing to the valve's long-term reliability.
