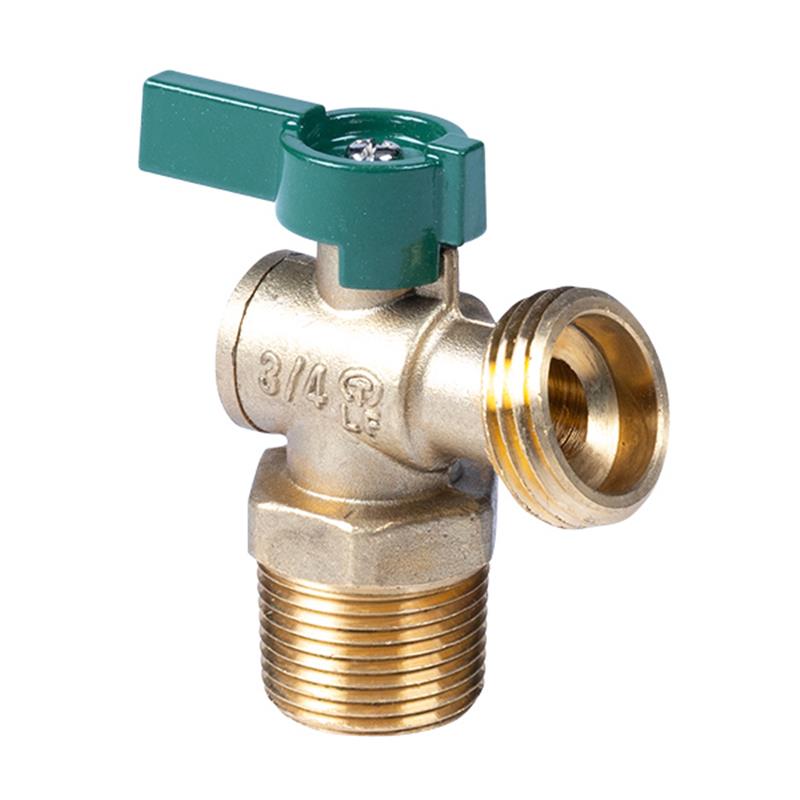

3/4" Lead Free Quarter Turn Boiler Drain

Item Number: 36233
Skip to product information
1 of 1
Regular price $24.08
In Stock (10)
Estimated transit time: 2 to 3 Business Days Eligible for Express Shipping

Brand - Matco-Norca

  • Size: 3/4 inch
  • Weight: 0.26 lb
  • Maximum Working Pressure: 125 PSI
  • Body Material: Lead Free Brass
  • Operation: Quarter Turn
  • Inlet Connection: NPT Male
  • Outlet Connection: Hose Thread
  • NSF 61 and NSF 372 Approved
  • UPC, cUPC, and CSA Approved

Description

This 3/4 inch lead-free quarter-turn boiler drain is engineered for efficient and safe draining from boilers and other residential or industrial plumbing systems. Constructed from durable lead-free brass, it ensures compliance with health standards for potable water. The valve features a simple quarter-turn operation for quick control and has a maximum working pressure of 125 PSI. Its NPT inlet thread and hose thread outlet conform to ANSI standards, making it compatible with common plumbing connections. This boiler drain is approved by NSF 61, NSF 372, UPC, cUPC, and CSA, guaranteeing reliable performance.

Help Me Connect

This valve features a 3/4 inch Male NPT (National Pipe Taper) threaded inlet for connecting to a boiler or other plumbing system.

The outlet is a 3/4 inch-11.5NH hose thread, designed to accept standard garden hoses or other compatible hose fittings for draining.

Connections

  • Inlet: 3/4 inch Male NPT
  • Outlet: 3/4 inch Hose Thread (NH)
View full details

Collapsible content

Additional Details

This boiler drain is a 3/4 inch lead-free quarter-turn valve, designed for reliable draining applications in plumbing systems, particularly boilers. It features a quarter-turn operation for quick shut-off.

Features

  • Constructed from Lead Free Brass
  • Quarter Turn operation for quick control
  • Maximum Working Pressure: 125 PSI
  • NPT Thread Ends Conform to ANSI B1.20.1
  • Hose Thread Conform to ANSI B1.20.7
  • NSF 61 and NSF 372 Approved through IAPMO
  • UPC, cUPC and CSA Approved

Specifications

  • Size: 3/4 inch
  • Maximum Working Pressure: 125 PSI
  • Inlet Connection: NPT Male
  • Outlet Connection: Hose Thread (NH)
  • Body Material: Lead Free Brass
  • Ball Material: Lead Free Brass
  • Stem Material: Brass
  • Handle Material: Aluminum Alloy
  • Packing Material: PTFE
  • O-Ring Material: NBR
  • Screw Material: Plated Steel
  • Cap Material: Lead Free Brass

Certificates & Approvals

  • NSF 61 Approved through IAPMO
  • NSF 372 Approved through IAPMO
  • UPC Approved
  • cUPC Approved
  • CSA Approved

FAQs

What is the maximum working pressure of this boiler drain?

The maximum working pressure for this 3/4 inch lead-free boiler drain is 125 PSI.

What type of connections does this boiler drain have?

It features a 3/4 inch Male NPT inlet connection and a 3/4 inch hose thread (NH) outlet connection.

Is this boiler drain suitable for potable water applications?

Yes, this boiler drain is approved by NSF 61 and NSF 372, making it suitable for potable water use.

What material is the body of the boiler drain made from?

The body of this boiler drain is constructed from lead-free brass.

Does this valve operate with a full turn or quarter turn?

This boiler drain features a quarter-turn operation for quick and easy opening and closing.
